SWP-1 Owner’s Manual
17
CONNECTOR PIN ASSIGNMENTS
CONSOLE (RS-232C)
*9 These ports are not used on the SWP-1.

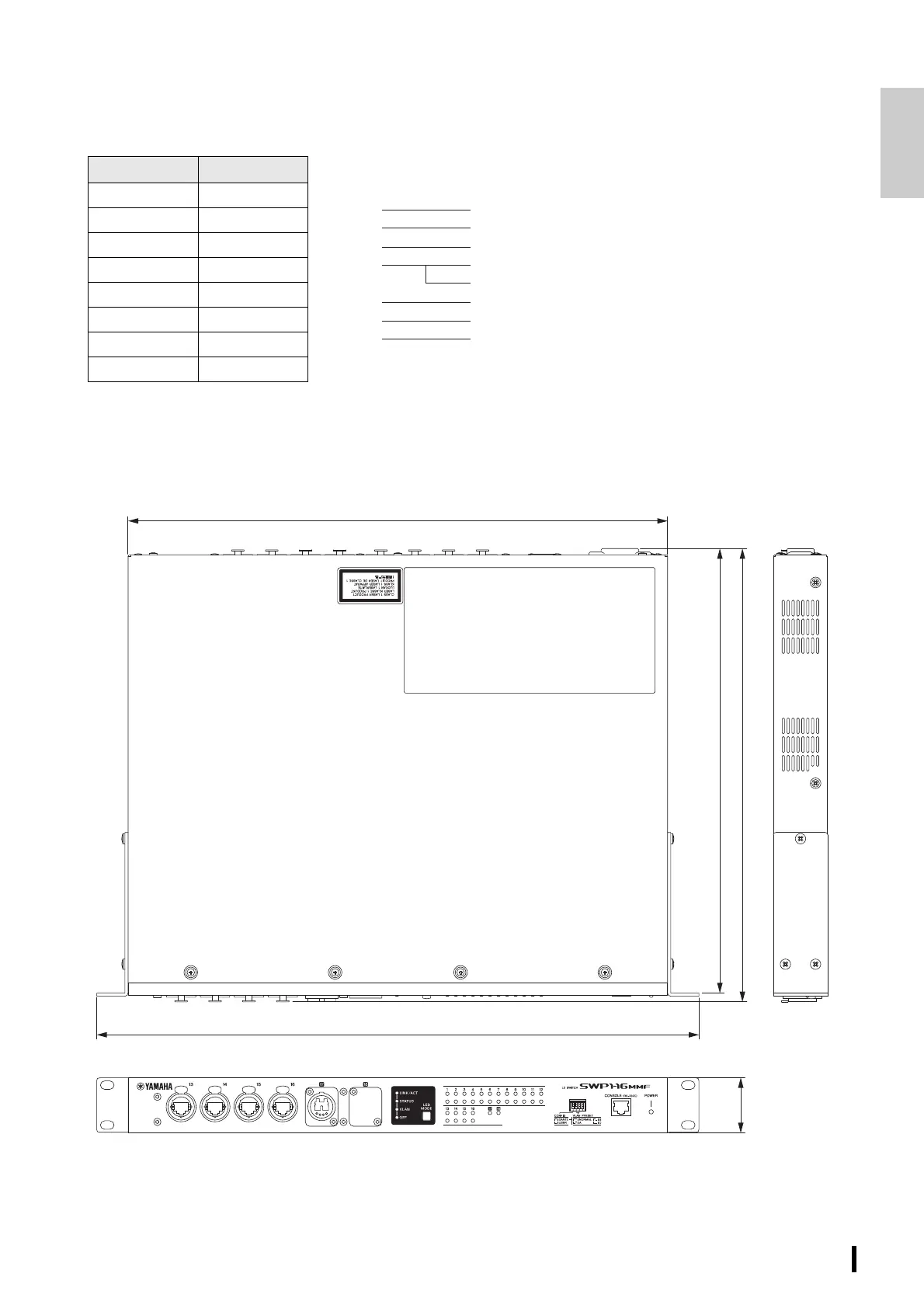

Dimensions
* The contents of this manual apply to the latest specifications as of the printing date. To obtain the latest manual, access the Yamaha
website then download the manual file.
Pin No. Signal
1RTS
2DTR
3TxD
4GND
5GND
6RxD
7DSP
*9
8CTS
*9
D-SUB 9 RJ45
1
2
3
4
5
6
7
8
9
3
6
7
4
5
2
8
1
362 355
430
480
44
Unit: mm
