WARNING
EWA11330
●
Before installing the fuel tank,
make sure that the fuel hoses
are not damaged. If any fuel
hose is damaged, do not start
the engine but have a Yamaha
dealer replace the hose, other-
wise fuel may leak.
●
Make sure that the fuel hoses
are properly connected and
routed, and not pinched.
●
Be sure to place the fuel tank
breather hose and the fuel tank
overflow hose in the original po-
sition.
10. Install the rear brake fluid reservoir
holder by installing the bolt.
11. Install the panels and cowlings.
12. Install the seat.
EAU34300
Adjusting the engine idling
speed
The engine idling speed must be
checked and, if necessary, adjusted as
follows at the intervals specified in the
periodic maintenance and lubrication
chart.
The engine should be warm before
making this adjustment.
NOTE:
The engine is warm when it quickly re-
sponds to the throttle.
Check the engine idling speed and, if
necessary, adjust it to specification by
turning the idle adjusting screw. To in-
crease the engine idling speed, turn the
screw in direction (a). To decrease the
engine idling speed, turn the screw in
direction (b).

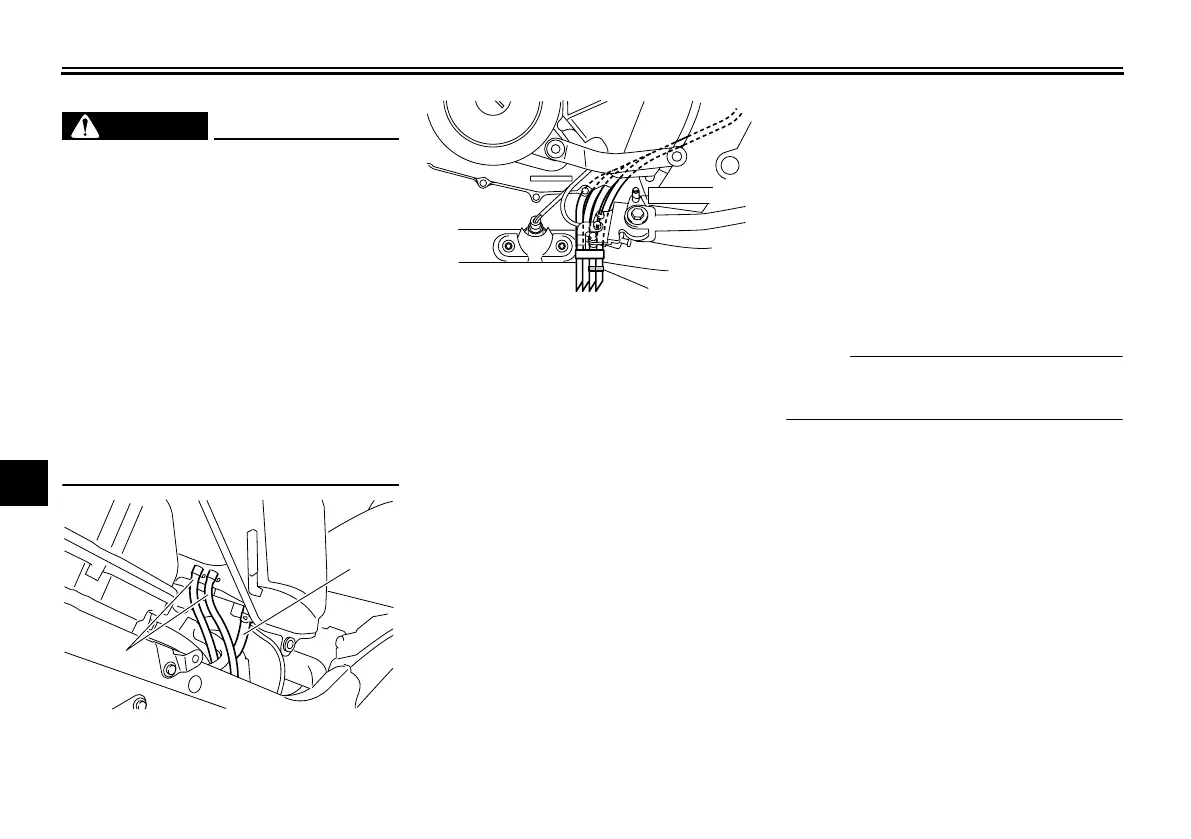

1. Fuel tank breather/overflow hose
2. Fuel hose
1
2
1. Original position (white mark)
