PERIODIC MAINTENANCE AND MINOR REPAIR
6-36
6
EAU24360
Front wheel
EAUM1761
To remove the front wheel
WARNING
EWA10820
● It is advisable to have a Yamaha
dealer service the wheel.
● Securely support the motor-
cycle so that there is no danger
of it falling over.
1. Loosen the front wheel axle pinch
bolts, then the wheel axle and the
brake caliper bolts.
XT660R
XT660X
2. Lift the front wheel off the ground
according to the procedure on
page 6-35.
3. Remove the brake caliper by re-
moving the bolts.
CAUTION:
ECA11070
Do not apply the brake after the
wheel has been removed together
with the brake disc, otherwise the
brake pads will be forced shut.
4. Pull the wheel axle out, and then
remove the wheel.
EAUM1811
To install the front wheel
1. Lift the wheel up between the fork
legs.
2. Insert the wheel axle.
3. Lower the front wheel so that it is
on the ground.

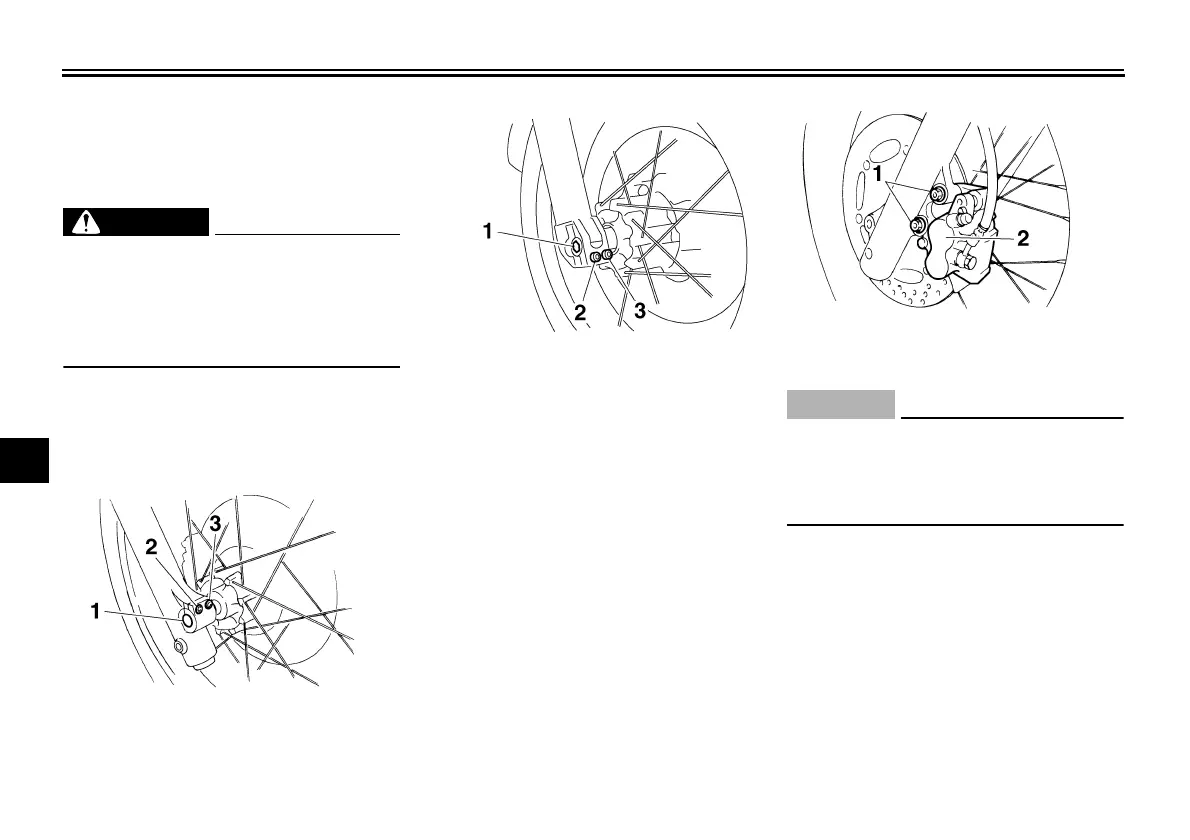

1. Wheel axle
2. Front wheel axle pinch bolt A
3. Front wheel axle pinch bolt B
1. Wheel axle
2. Front wheel axle pinch bolt A
3. Front wheel axle pinch bolt B
1. Bolt
2. Brake caliper
