3-2
3
EBU17712

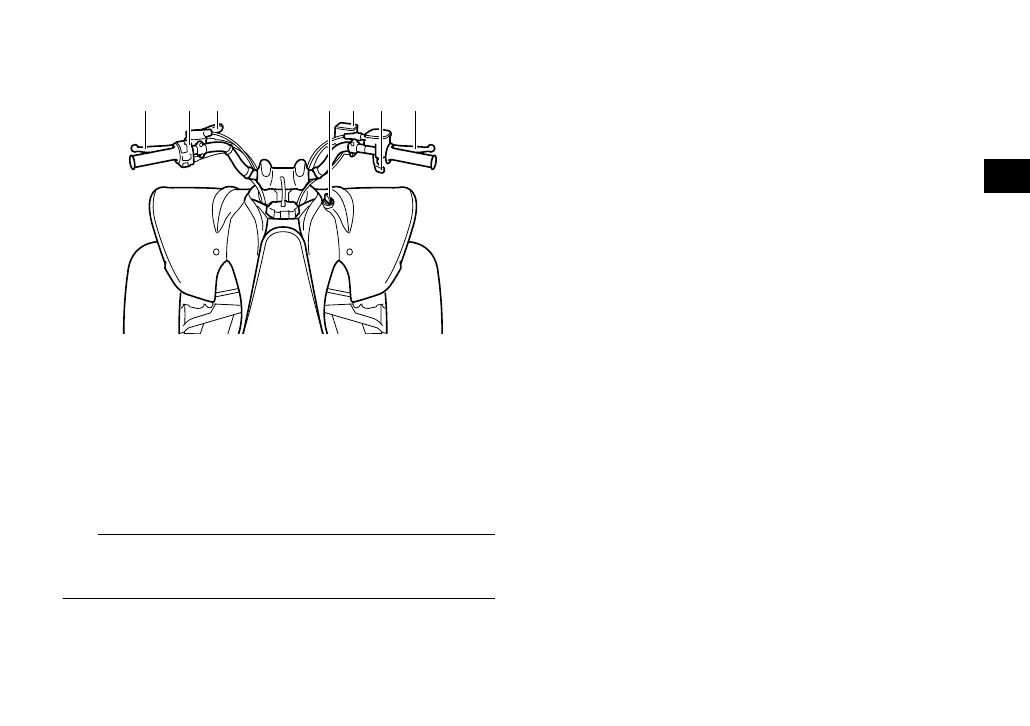

Controls and instruments
TIP
The ATV yo
u have purchase
d may differ
slight
ly
from th
e figu
res sh
own i
n this m
anua
l.
1.
Clutch le
ver
2.
Handlebar swi
t
ches
3.
P
ark
ing brake le
ver
4.
Main switch
5.
F
ront brake fluid reser
voir
6.
Thr
ottle le
ver
7.
Brak
e lev
er
1
2
3
4
6
7
5
U1B
T
63
E
0
.
book
P
a
ge 2
F
r
id
a
y
,
M
a
r
c
h 9,
2
012
11:
22 AM
26
28
Table of Contents
Table of Contents
8
Location of the Warning and Specification Labels
11
Safety Information
20
Description
26
Left View
26
Right View
26
Controls and Instruments
27
Instrument and Control Functions
28
Main Switch
28
Indicator Light
29
Handlebar Switches
29
Throttle Lever
30
Speed Limiter
31
Clutch Lever
31
Brake Lever
32
Brake Pedal
32
Parking Brake Lever
33
Shift Pedal
34
Fuel Tank Cap
34
Fuel
35
Fuel Cock
36
Starter (Choke)
38
Seat
38
Adjusting the Front Shock Absorber Assemblies
39
Adjusting the Rear Shock Absorber Assembly
40
Pre-Operation Checks
43
Fuel
45
Engine Oil
45
Front and Rear Brakes
45
Throttle Lever
45
Specifications
46
Drive Chain
46
Tires
46
Chassis Fasteners
48
Instruments, Lights and Switches
48
Operation
49
Starting a Cold Engine
49
Starting a Warm Engine
50
Shifting
51
Engine Break-In
52
Parking
53
Parking on a Slope
53
Accessories and Loading
54
Riding Your Atv
57
Getting to Know Your Atv
58
Ride with Care and Good Judgment
58
Be Careful Where You Ride
65
Turning Your Atv
68
Climbing Uphill
69
Riding Downhill
72
Crossing a Slope
74
Crossing through Shallow Water
75
Riding over Rough Terrain
76
Sliding and Skidding
77
What to Do if
78
What to Do
78
Periodic Maintenance and Adjustment
80
Owner's Manual and Tool Kit
81
Periodic Maintenance Chart for the Emission Control System
82
General Maintenance and Lubrication Chart
84
Checking the Spark Plug
88
Engine Oil and Oil Filter Element
90
Cleaning the Air Filter Element
93
Cleaning the Spark Arrester
97
Adjusting the Carburetor
99
Adjusting the Engine Idling Speed
99
Adjusting the Throttle Lever Free Play
100
Valve Clearance
101
Brakes
101
Checking the Front and Rear Brake Pads
101
Checking the Brake Fluid Level
102
Changing the Brake Fluid
104
Checking the Front Brake Lever Free Play
104
Checking the Brake Pedal Height
104
Adjusting the Parking Brake Free Play
105
Brake Light Switches
106
Adjusting the Clutch Lever Free Play
107
Drive Chain Slack
108
Lubricating the Drive Chain
110
Checking and Lubricating the Cables
110
Checking and Lubricating the Brake and Clutch Levers
111
Checking the Shift Pedal
112
Checking and Lubricating the Brake Pedal
112
Checking the Wheel Hub Bearings
112
Lubricating the Swingarm Pivots
113
Lubricating the Upper and Lower Arm Pivots
113
Lubricating the Steering Shaft
114
Battery
114
Replacing the Fuse
117
Replacing a Headlight Bulb
118
Adjusting a Headlight Beam
120
Replacing the Tail/Brake Light Bulb
120
Removing a Wheel
120
Installing a Wheel
121
Troubleshooting
122
Troubleshooting Chart
123
Cleaning and Storage
124
Cleaning
124
Storage
125
Specifications
127
Consumer Information
132
Identification Numbers
132
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Yamaha YFM250 and is the answer not in the manual?
Ask a question
