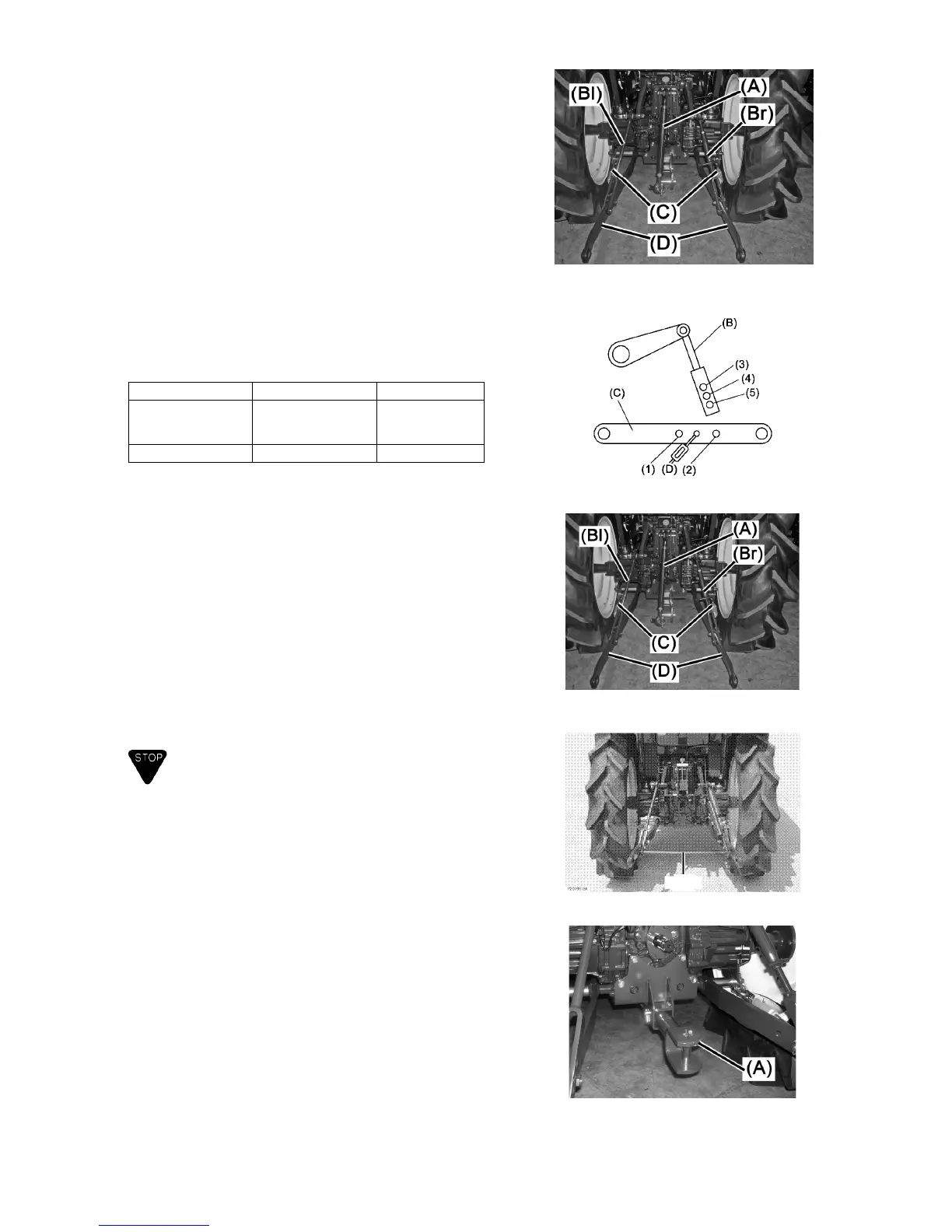

14. Using 3-point hitch
3-point rear hitch type is Category 1.
Top link
Adjust length of top link (A) to implement. Loosen
lock nut turn turnbuckle on top link and adjust the
length.
Follow instructions of implements.
(A) Top link (C) Lower link
(B) Lift link (D) Check chain
Lift link and lower link
Set lower link hole and lift link hole according to
implement and work.
Lower link hole Lift link hole Remarks
(1)
Refer to the
instruction of
implement
Standard 3-P
(2) (5) Special 3-P
Never use the combination of hole (2) and hole (3).
Check chain
Check chain adjustment.
(1) For implements such as a plough, harrow and
subsoil plow, adjust check chains so as an
implement could be swung about 5 cm. Make sure
that lower ling does not hit tire.
(2) For implements such as a rotary tiller and mower,
adjust check chains so as implement does not
swing, but not too tight.
IMPORTANT
When an implement is not attached to tractor, tie lower
links to avoid from hitting rear tire while driving.
(C) Check chain
(E)
15. Drawbar hitch
Use Drawbar when towing a trailer.
(A) Drawbar
