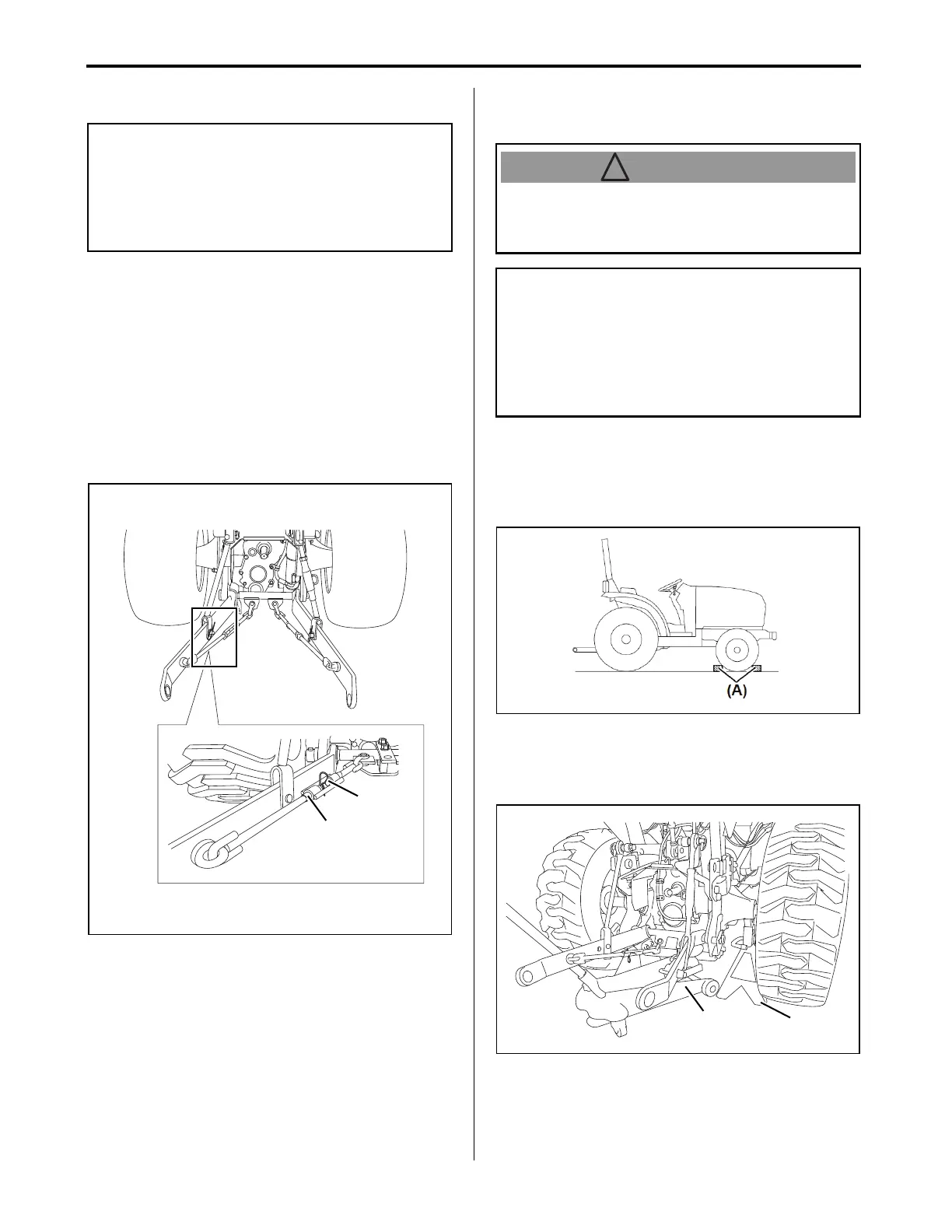

10-6
10. 3-POINT HITCH AND DRAWBAR
SA221/324/424 Operation Manual
Adjust the Check Chain
1. Park the tractor safely and securely.
For details, see "7. Safe Practices for Parking the
Tractor" on page 1-7.
2. Chock all the tires safely and securely.
3. Lower the implement to the ground.
4. Remove the hairpin clip.
5. Rotate the turnbuckle to adjust the length of the
check chain.
6. Install the hairpin clip.
(A) Hairpin clip
(B) Turnbuckle
Install 3-point hitch onto the tractor
with backhoe mount bracket (Option)
1. Engage the parking brake securely.
2. Park the tractor safely and securely, and place
chocks (A) around the front wheels (4 pcs. / in
total).
(A) Chocks
3. Install jack stands under the both rear axle of the
tractor.
(A) Jack stands
(B) Lift jack
NOTE
Check the procedure for adjusting the check
chain in the Operation Manual for the implement.
Once the check chain has been properly
adjusted, side sway of the implement can be
controlled by the position of the links.
(A)
(B)
Only trained adults should service the tractor.
Understand the instructions in the Operation
Manual before servicing.
IMPORTANT:
Backhoe mount bracket has already been
installed if the backhoe is mounted from the
factory.
If backhoe is detached and install any another
rear implements needed to be lifted, 3-point hitch
is needed to be installed.
! WARNING
(A)
(B)
