4
ASSEMBLY
TOOLS REQUIRED FOR ASSEMBLY
(1) Pliers
(2) 1/2” Wrenches
(2) 3/4” Wrenches
(1) 7/8” Wrench
REMOVE ALL PARTS FROM CARTONS
1. Remove the hardware packs and all parts from the cartons.
2. Layout and identify parts included in carton contents. (See parts listing below)
3. Layout and identify parts included in the hardware pack. (See parts listing below)
4. IF ANY PARTS ARE MISSING FROM PACKAGING
Contact Mfg. at 952-938-5222

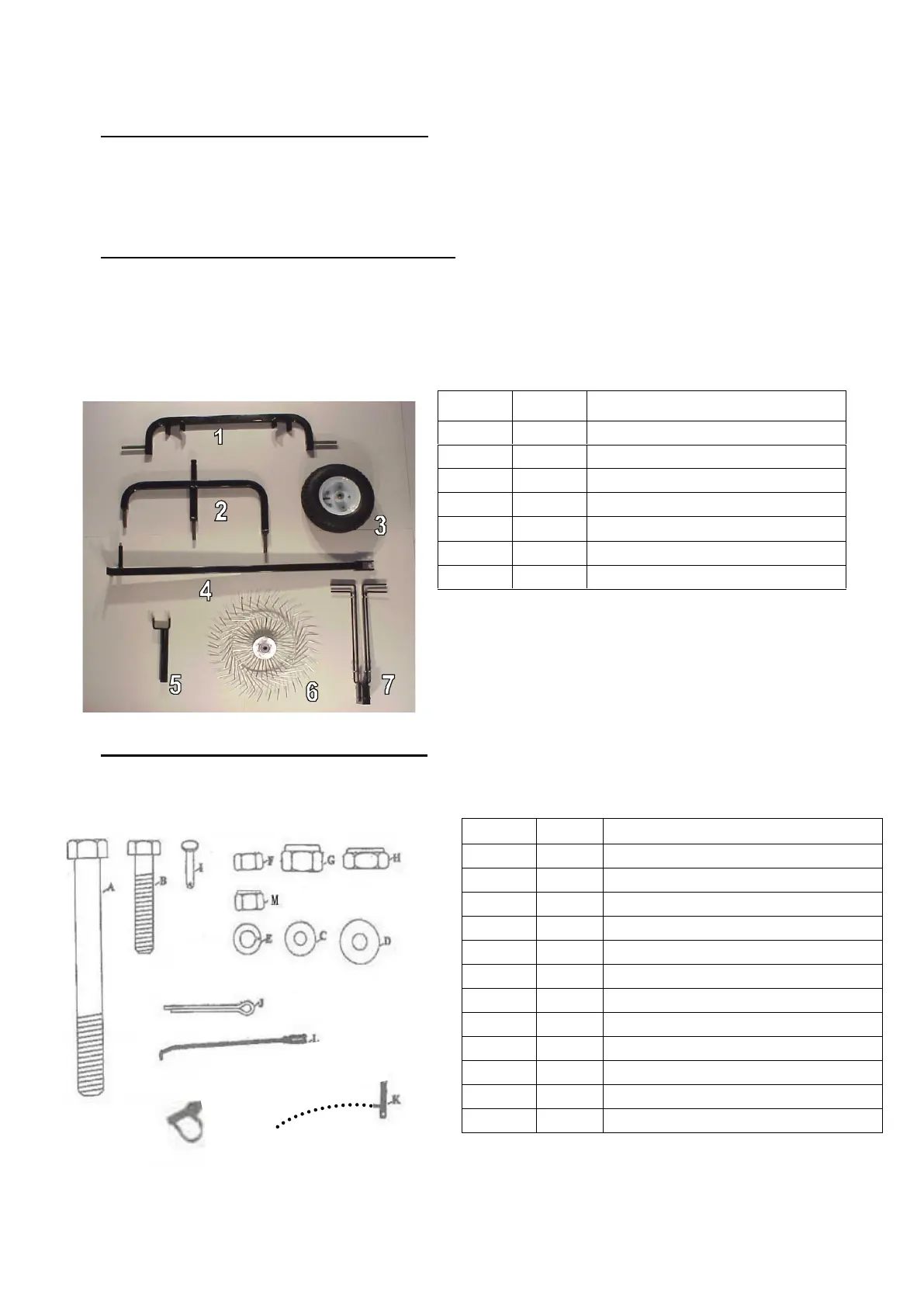

HARDWARE PACK CONTENTS:
(Photo of Parts not Actual Size)
Ref#
Qty
Description
1
1
Axle Assembly
2
2
Rake Wheel Arm
3
2
Tire/Wheel Assembly
4
1
Tongue Assembly
5
2
Left & Right Lift Arm (1 ea.)
6
6
Rake Tine Wheel
7
1
Lift Handle
Ref#
Qty
Description
A
2
Hex Bolt 1/2" x 4-1/2" or M12 x 120
B
4
Hex Bolt 5/16" x 2"
C
2
Flat Washer 1/4"
G
2
Nylock Nut 1/2" or (M12)
H
8
Nylock Nut 9/16"
I
2
Clevis Pin 1/4" x 1" or (6 x 25)
J
4
Cotter Pin 1/16" x 5/8"
K
2
Chain Bar with Chain
L
2
Lift Rod
M
5
Nylock Nut 5/16"
N
1
Hitch Pin with Clip (not shown)
P
2
Clevis Lock Pin
P
