Figure 6c
Figure 6d
5.
M8 X 40 X 1
7
M8 X 50 X 1
M20 X 100 X 1
6
4.
10
mm
13
mm
18
mm
19
mm
12
mm
7
mm
30
mm
13
mm
18
mm
19
mm
12
mm
7
mm
30
mm
8
mm
X 2
X 2

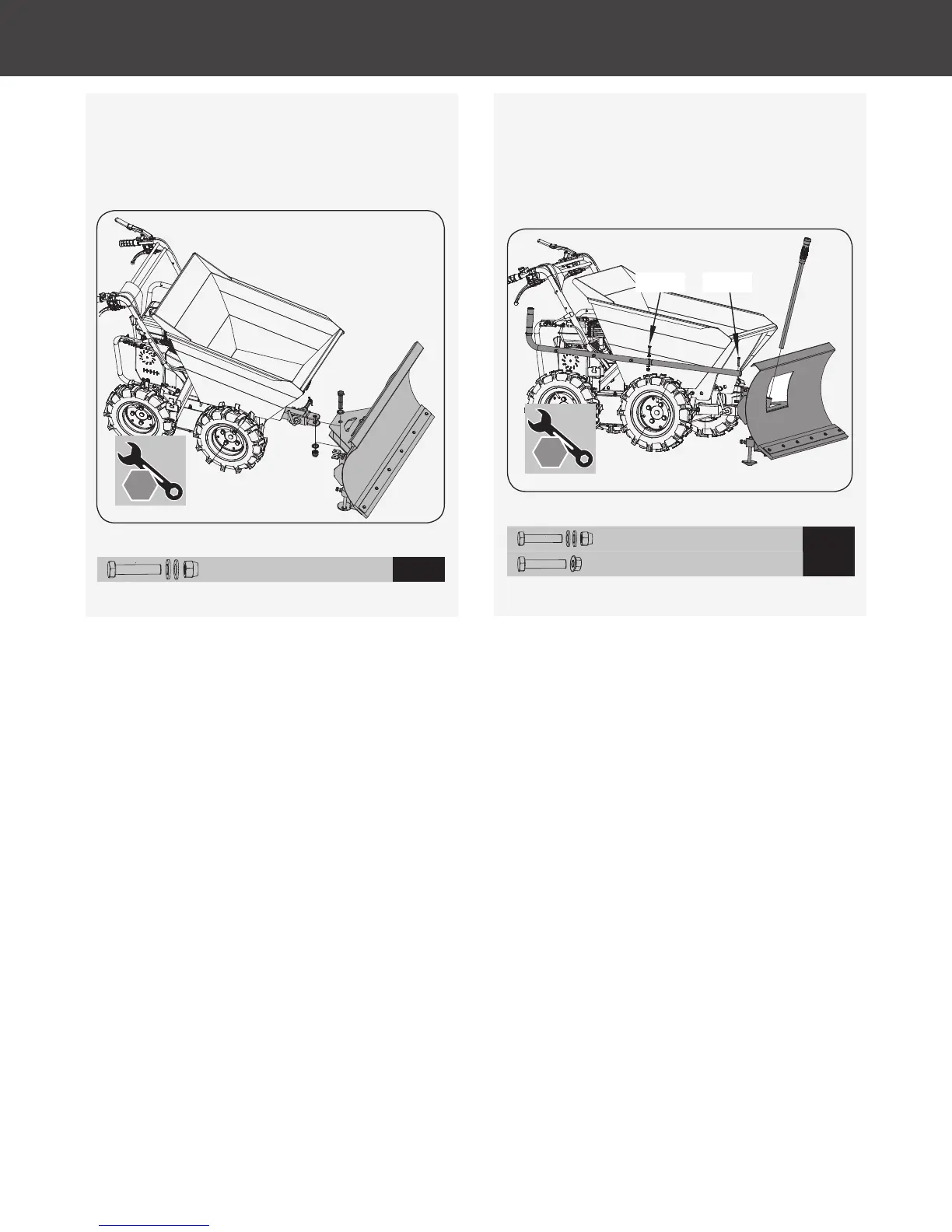

Fix the blade assembly to the flange bracket with
M20X100 bolt, washer and nut. Do not overtighten,
allowing the blade to rotate freely in both directions.
(See
Figure 6c
)
Connect the angle control lever and extension by
M8X40 bolt, washer and nut. Attach the extension to
the blade with M8X50 bolt and nut. Lock the second
pin of the angle control lever into the limit slot of the
bracket. (See
Figure 6d
)
12
Power Wheelbarrow
»
Operator’s Manual
YD4103PM02 - 1706
Assembly
|
