YARDMAX YD4103 User Manual

FEATURES AND CONTROLS

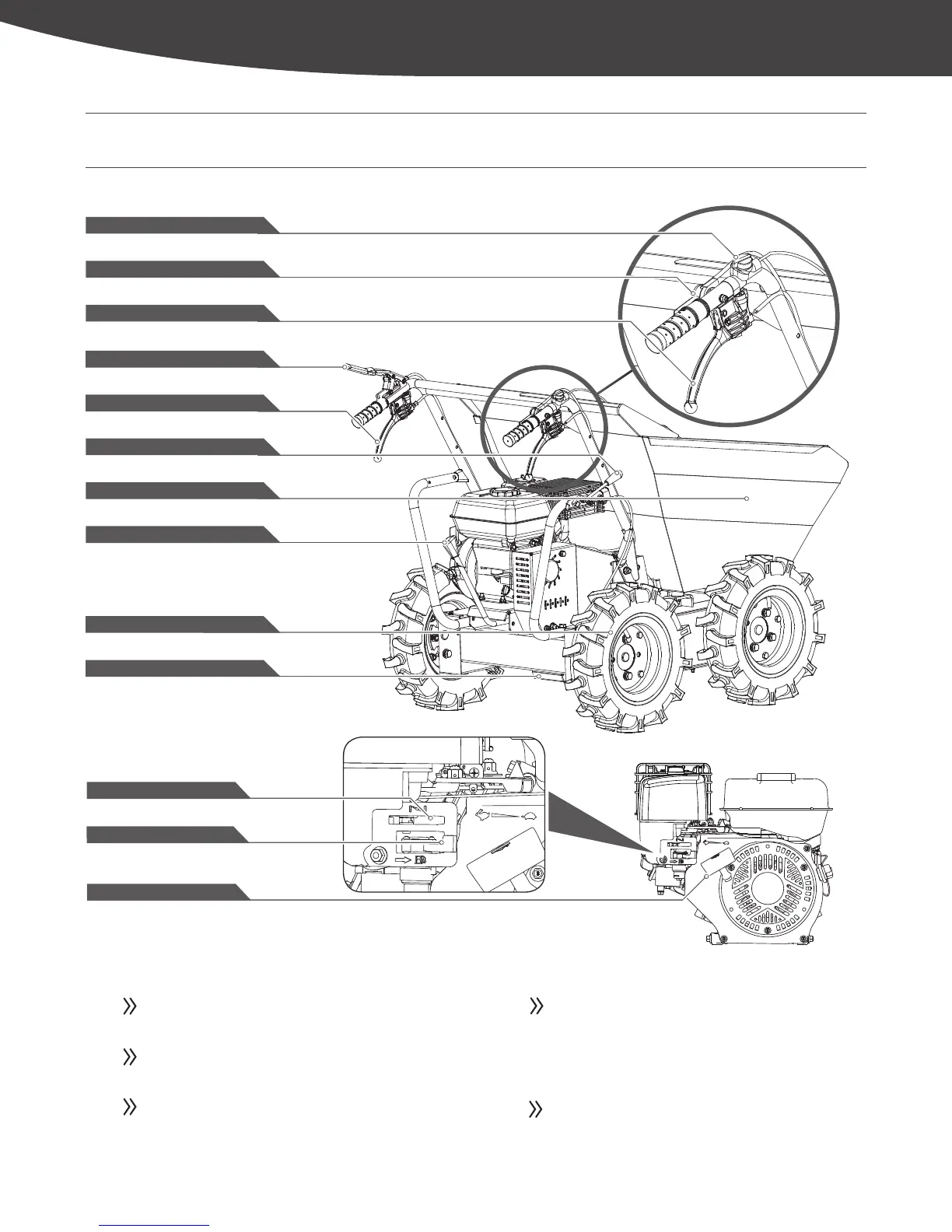

KNOW YOUR MACHINE
Engine On/Off Switch
Throttle Control
Right Steering Lever
Clutch Control Lever
Left Steering Lever
Hopper Release Lever
Hopper
Gear Selection Lever
Wheel
Gearbox
ENGINE ON/OFF SWITCH
The engine switch enables and disables the ignition
system.
The engine switch must be in the ON position for the
engine to run.
Turning the engine switch to the OFF position stops
the engine.
CLUTCH CONTROL LEVER
Squeeze the control lever, clutch engaged. Release
the lever, clutch disengaged.
THROTTLE CONTROL
It controls engine speed. Put the throttle control on
low speed (L) or high speed (H) or an intermediary
position between L and H to increase or decrease the
speed of engine.
Recoil Starter Handle
Choke Control
Fuel Shut-Off Valve
13
YD4103PM02 - 1706
|
Know Your Machine

YARDMAX YD4103 Specifications

General

Brand	YARDMAX
Model	YD4103
Category	Farm Equipment
Language	English
