YARDMAX YM0046 User Manual

Wheel Shaft
Split Pin
1
3 4
2
Outside Hole
Wheel Axle Bracket
M8×60
M8×40
2
1

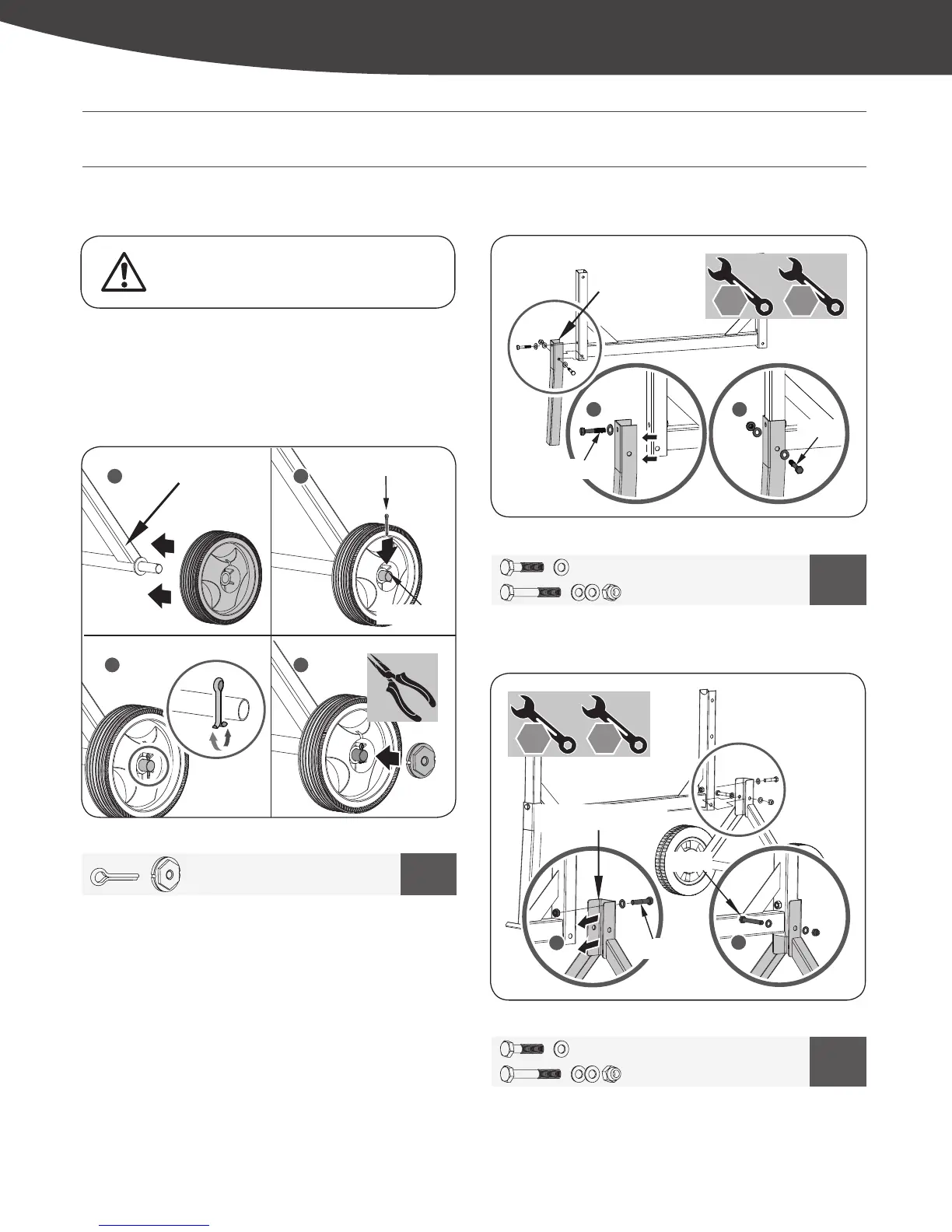

This concrete mixer is partially assembled at the factory. To assemble your machine follow the below instructions.
ASSEMBLY
1. Slide the each wheel in each stub axle. Insert each split pin into
the axle hole. Bend each of the side pins outward so they do
not fall out. Attach the wheel caps.
2. With the frame lying on its side, attach the support legs.
Align the 2 holes on the support leg with the frame holes as
shown. (See Figure 1b, Illustration 1) Screw M8x40 hex bolt
and washer into the upper hole. (See Figure 1b, Illustration 1).
Insert M8x60 hex bolt through the lower hole, and secure with
at washer, lock washer, and nut. (See Figure 1b, Illustration 2).
3. Turn the frame over and attach the axle bracket with wheels in
the same manner. (See Figure 1c, Illustrations 1-2)
× 2
1
M8 × 40 × 1
2
M8 × 60 × 1
M8 × 40 × 1
3
M8 × 60 × 1
Assembly requires two persons (recommended).
STAND
Figure 1a
Figure 1b
Figure 1c
4. Make sure all bolts and nuts are tightened.
M8×60
1
2
Support Leg
M8×40
17 mm
13 mm
16 mm
14 mm
18 mm
19 mm
30 mm
32 mm
17 mm
13 mm
16 mm
14 mm
18 mm
19 mm
30 mm
32 mm
7
|
Assembly
74005US25M100.indd 7 2017/3/14 11:12:20
