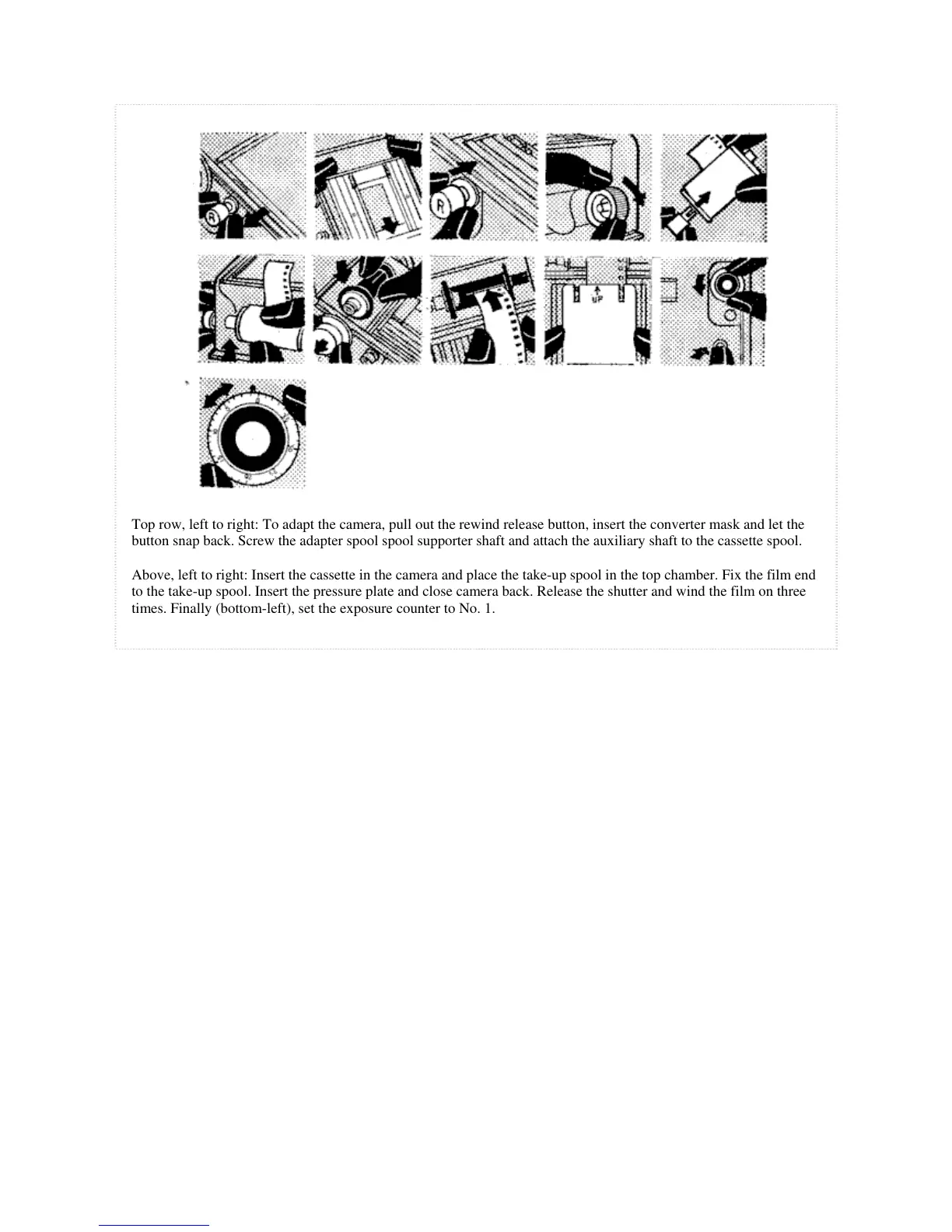

Top row, left to right: To adapt the camera, pull out the rewind release button, insert the converter mask and let the
button snap back. Screw the adapter spool spool supporter shaft and attach the auxiliary shaft to the cassette spool.
Above, left to right: Insert the cassette in the camera and place the take-up spool in the top chamber. Fix the film end
to the take-up spool. Insert the pressure plate and close camera back. Release the shutter and wind the film on three
times. Finally (bottom-left), set the exposure counter to No. 1.
