Yealink SIP-T58W Recovery Guide

Recovery Mode on Yealink IP phones
4
Configuring the HTTP Server
This section shows how to configure a HTTP server for the windows system using the HFS tool. You can
download the HFS software online: http://www.snapfiles.com/get/hfs.html. If there is a HTTP server
installed on your local system, you can skip this section and go to the next.
Procedures
1. Create an HTTP root directory on the local system.
2. Place resource files to this root directory.
3. Double click the hfs.exe to start the application.

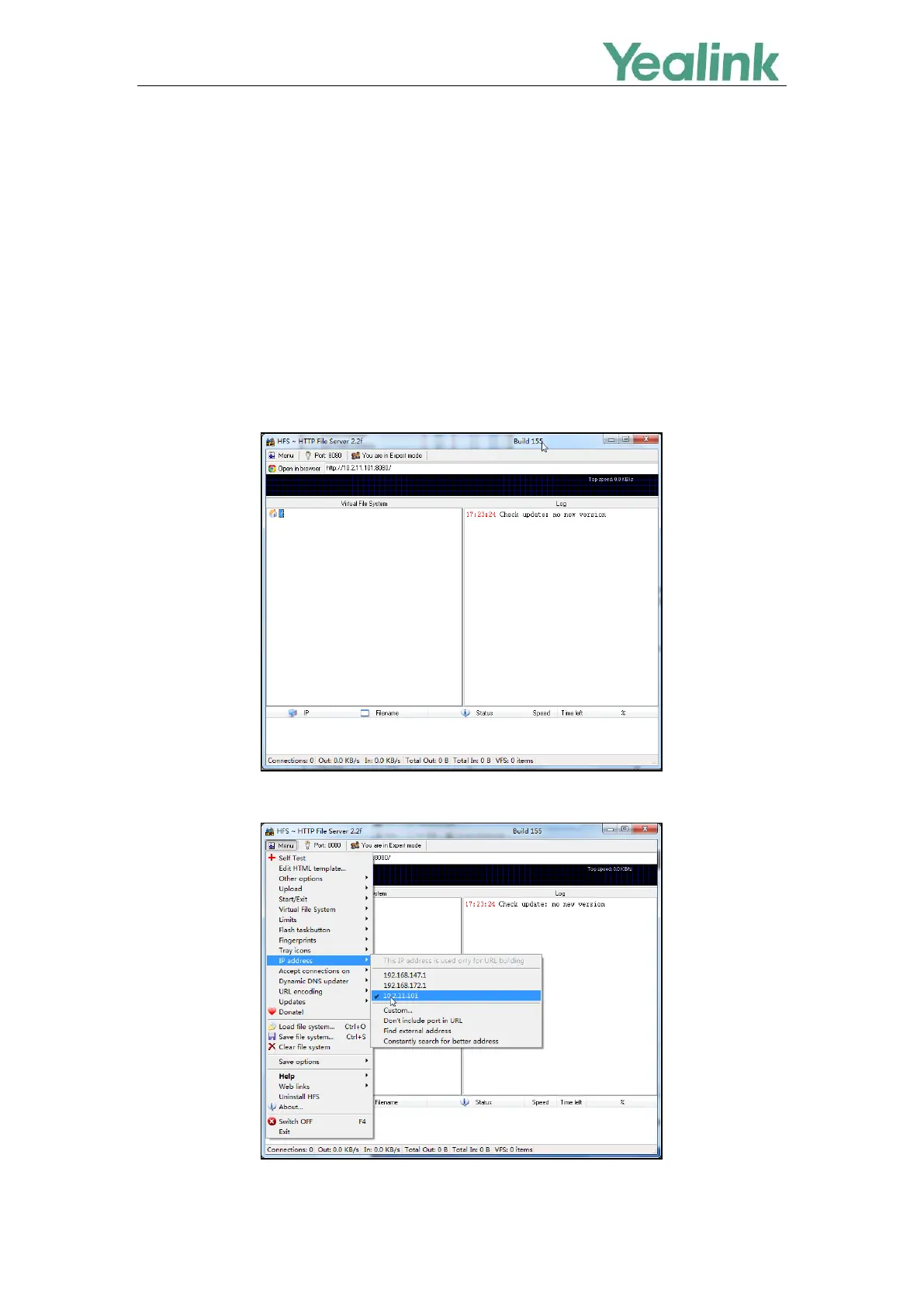

The main configuration page is shown as below:
4. Click Menu in the main page and select the IP address of the PC from IP address.

Yealink SIP-T58W Specifications

General

Handset type	Wired handset
Product type	IP Phone
Product color	Gray
Wall mountable	Yes
Video call	No
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.2
Security algorithms	256-bit AES, HTTPS, TLS, WPA2, WPA3
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af
Ethernet LAN data rates	1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	IPv4/IPv6, SIP v1 (RFC2543), v2 (RFC3261), UDP/TCP/DNS-SRV (RFC 3263)
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
USB 2.0 ports quantity	2
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	12
Keypad number of keys	27
Number of function keys	7
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Display diagonal	7 \
Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Number of handles included	1 pc(s)
Voice codecs	G.711a, G.722, G.723.1, G.726, G.729, G.729A, G.729B, iLBC

Weight and Dimensions

Depth	220 mm
Width	259.4 mm
Height	215 mm
Weight	8858 g
Package depth	293 mm
Package width	324 mm
Package height	128 mm
Package weight	9556 g
