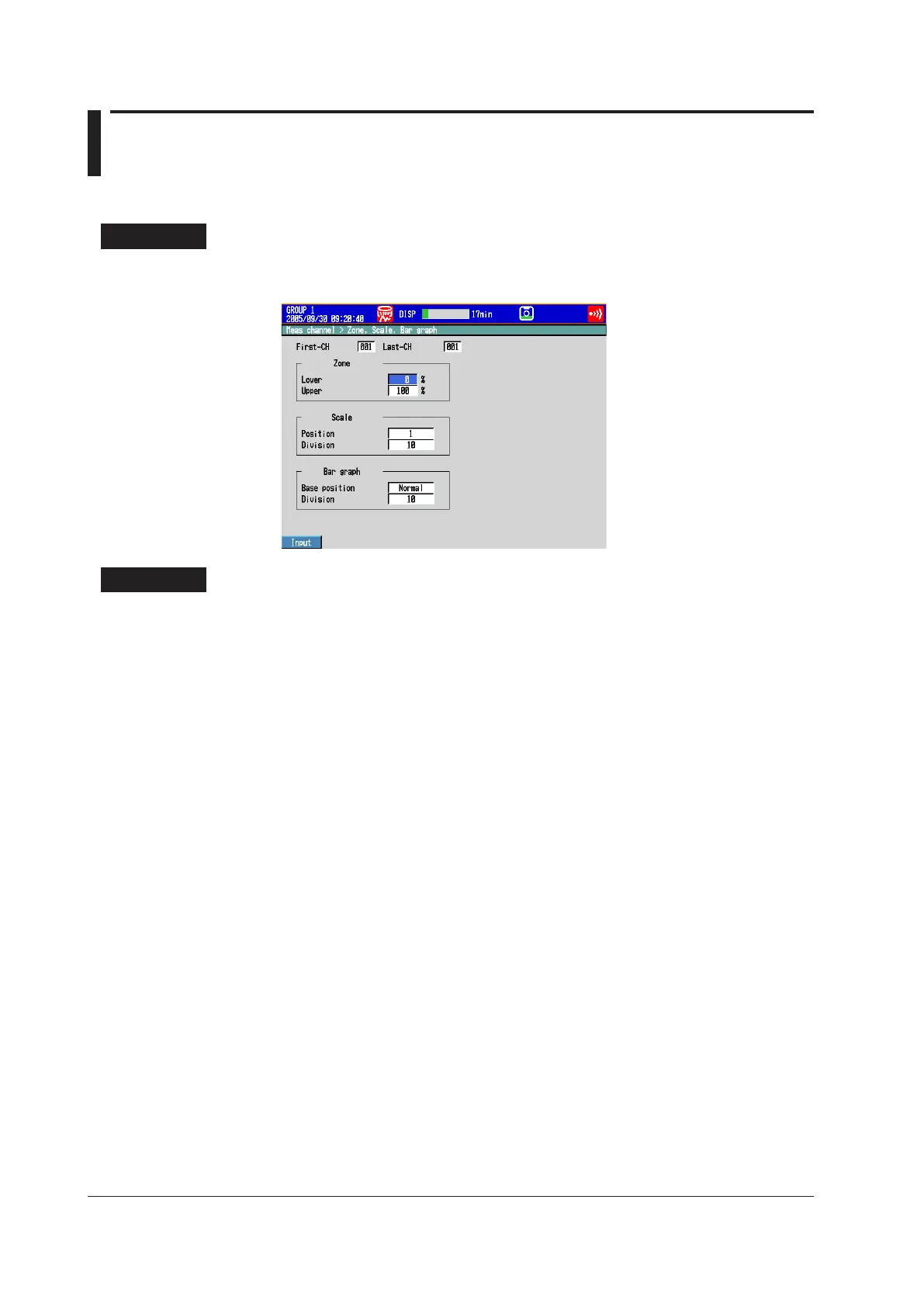

5.6 DisplayingChannelsinDisplayZones
Specify a waveform display zone for each channel so that waveforms do not overlap.
For a description of the function, see section 1.3.
SetupScreen
Press MENU (to switch to setting mode), and select the Menu tab > Meas channel >
Zone,Scale,Bargraph.
SetupItems
• First-CH/Last-CH
Select the target channels. The target channels are common with the other items that
are displayed on the screen.
• Zone>Lower,Zone>Upper
Sets the zone in which the waveform is displayed. You can set Lower and Upper as
a position (%) when taking the maximum display width to be 100%. Set Upper greater
than Lower, and the zone width (Upper – Lower) greater than or equal to 5%.
Lower: 0 to 95%
Upper: 5 to 100%
