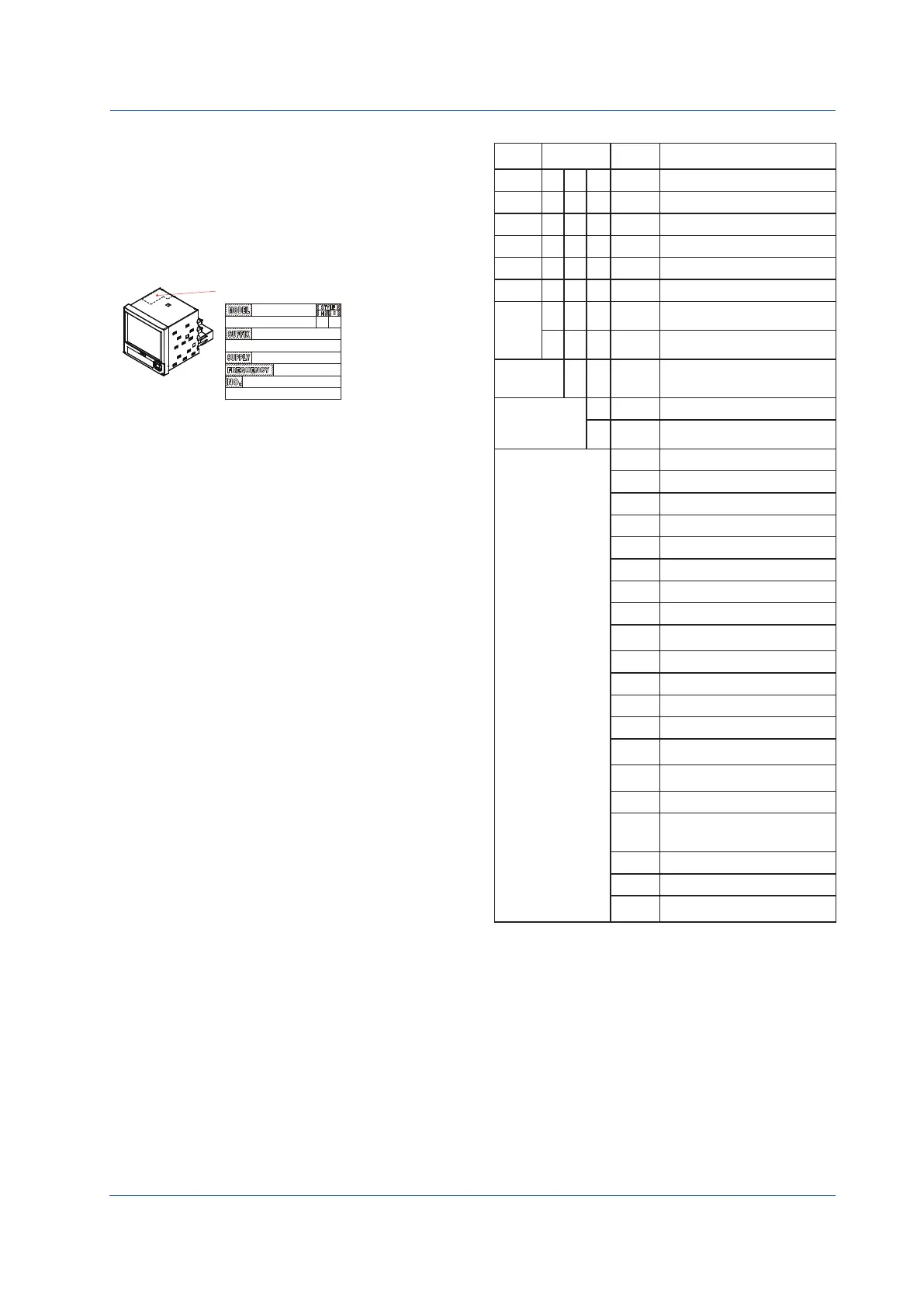

Checking the Contents of the Package
Unpack the box and check the contents before operating the
instrument. If some of the contents are not correct or missing or
if there is physical damage, contact the dealer from which you
purchased them.
FX
A name plate is located on the top panel of the FX. Check that the
model name and suffix code given on the name plate match those
on your order.
name plate
NO. (Instrument Number)
When contacting the dealer from which you purchased the
instrument, please give them the instrument number.
Model and Sufx Codes
Model
code
Suffix code Optional
code
Description
FX1002
2ch, Shortest measurement interval:125ms
FX1004 4ch, Shortest measurement interval:125ms
FX1006 6ch, Shortest measurement interval:1s
FX1008 8ch, Shortest measurement interval:1s
FX1010
10ch, Shortest measurement interval:1s
FX1012 12ch, Shortest measurement interval:1s
External
storage
medium
slot
-0 Without CF card slot and medium
(Note)
-4 With CF card slot and medium
Language -2
English/German/French/Italian/ Spanish/
Portuguese/ Russian/ Korean
deg F and DST
Withstanding
voltage between
measuring input
terminals
-H 1000 VAC(50/60 Hz), 1 min
-L 400 VAC(50/60 Hz), 1 min
Options /A1 Alarm output 2 points (C-contact)
*1
/A2 Alarm output 4 points (C-contact)
*1
/A3 Alarm output 6 points (C-contact)
*1*3
/A4A Alarm output 12 points (A-contact)
*1*3
/C2 RS-232 interface
*2
/C3 RS-422A/485 interface
*2
/C7 Ethernet interface
/F1 FAIL/Status output
*3
/M1 Mathematical functions (including Report
functions)
/N2 3 leg isolated RTD
*4
/N3F Extended input type (without Pt1000)
/P1 24 VDC/AC power supply
/R1 Remote control 8 points
*5
/TPS2 24VDC transmitter power supply (2
loops)
*6
/TPS4 24VDC transmitter power suply (4
loops)
*7
/USB1 USB interface (1 port)
/PM1 Pulse input 3 points, Remote control
5 points (including Mathematical func-
tions)
*8
/CC1 Calibration correction function
/LG1 Log scale
/PWR1 Power monitor (including Mathmatical
functions)
*9
Note: To load data, the FX must be equipped with a communication
interface (/C2, /C3 or /C7 option) or the USB interface (/USB1 option.)
*1 Any combination of /A1, /A2, /A3, and /A4A cannot be specified
together.
*2 /C2 and /C3 cannot be specified together.
*3 /A3 or /A4A cannot be specified together with /F1.
*4 /N2 cannot be specified for FX1002 or FX1004.
*5 If /R1 is specified, /A4A, /TPS2, /TPS4, /PM1, or /PWR1 cannot
be specified.
*6 If /TPS2 is specified, /TPS4, /A2, /A3, /A4A, /F1, /R1, or /PM1
cannot be specified.
*7 If /TPS4 is specified, /TPS2, /A1, /A2, /A3, /A4A, /F1, /R1, or /
PM1 cannot be specified.
*8 If /PM1 is specified, /A4A, /M1, /R1, /TPS2, /TPS4, or /PWR1
cannot be specified.
*9 If /PWR1 is specified, /A3, /A4A, /F1, /R1, /PM1, or /M1 cannot
be specified.
*10 /TPS2, /PWR1, and /A1 cannot be specified together.
