York 251934-YTG-J-0910 User Manual

251934-YTG-J-0910
Johnson Controls Unitary Products 49

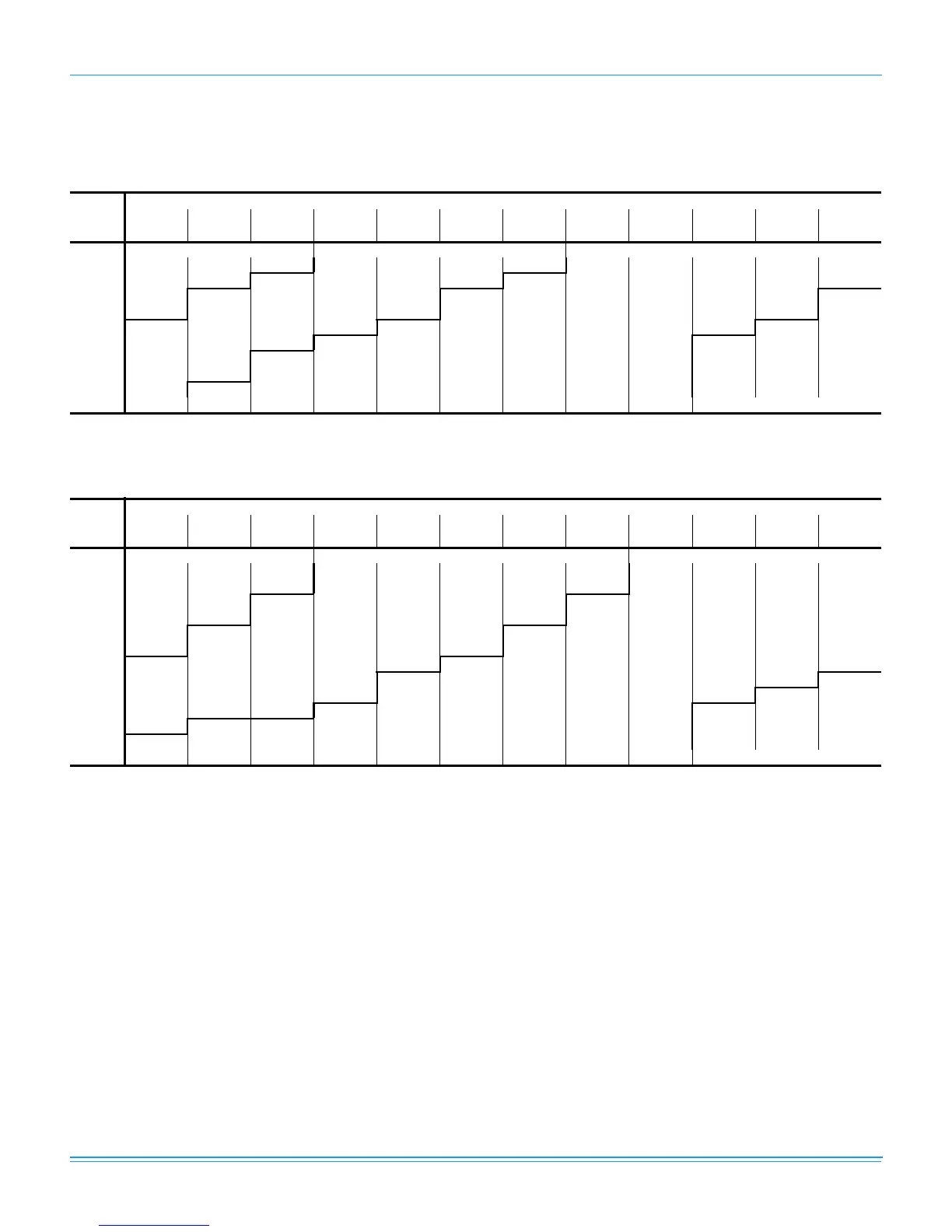

Airflow Performance
ZJ180-300 Side Duct Application
ZJ180 (15 Ton) Side Duct
Air Flow
(CFM)
Available External Static Pressure - IWG
1
1. Blower performance includes gas heat exchangers and 2” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.898.
0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.6
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Standard 5 HP & Field Supplied Drive Standard 5 HP & Drive High Static 5 HP & Drive
4000 727 1.14 765 1.47 806 1.77 848 2.04 891 2.29 934 2.52 977 2.73 1020 2.93 1061 3.12 1101 3.30 1138 3.48 1174 3.67
4400 753 1.51 792 1.84 832 2.14 874 2.41 917 2.66 960 2.88 1004 3.09 1046 3.29 1087 3.48 1127 3.67 1165 3.85 1200 4.03
4800 781 1.92 820 2.25 861 2.55 903 2.82 946 3.06 989 3.29 1032 3.50 1074 3.70 1116 3.89 1155 4.08 1193 4.26 1228 4.44
5200 812 2.37 850 2.70 891 3.00 933 3.27 976 3.52 1019 3.74 1062 3.95 1105 4.15 1146 4.34 1186 4.53 1223 4.71 1259 4.89
5600 844 2.86 882 3.19 923 3.49 965 3.76 1008 4.01 1051 4.23 1094 4.45 1137 4.64 1178 4.83 1218 5.02 1255 5.20 1291 5.39
6000 877 3.39 916 3.72 957 4.02 999 4.29 1042 4.54 1085 4.76 1128 4.98 1170 5.17 1212 5.36 1251 5.55 1289 5.73 - -
6400 912 3.96 951 4.29 992 4.59 1034 4.86 1077 5.10 1120 5.33 1163 5.54 1205 5.74 --------
6800 949 4.56 988 4.89 1028 5.19 1070 5.46 1113 5.71 --------------
7200 986 5.20 1025 5.53 --------------------
5 HP & Field Supplied Drive
ZJ210 (17.5 Ton) Side Duct
Air Flow
(CFM)
Available External Static Pressure - IWG
1
1. Blower performance includes gas heat exchangers and 2” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.838.
0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.6
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Standard 5 HP & Field Supplied Drive Standard 5 HP & Drive High Static 7.5 HP & Drive
4400 636 0.65 672 1.14 709 1.60 745 2.03 780 2.43 815 2.78 849 3.09 882 3.35 914 3.55 944 3.70 973 3.78 999 3.79
4800 649 0.99 685 1.48 721 1.94 757 2.37 793 2.77 828 3.12 862 3.43 895 3.69 927 3.89 957 4.04 985 4.12 1012 4.13
5200 663 1.34 700 1.83 736 2.29 772 2.72 808 3.11 843 3.47 877 3.78 910 4.04 942 4.24 972 4.39 1000 4.47 1027 4.48
5600 680 1.71 717 2.20 753 2.66 789 3.09 825 3.48 860 3.84 894 4.15 927 4.41 959 4.61 989 4.76 1017 4.84 1044 4.85
6000 699 2.11 735 2.60 772 3.06 808 3.49 844 3.88 879 4.24 913 4.55 946 4.80 977 5.01 1007 5.15 1036 5.24 1062 5.25
6400 719 2.55 756 3.03 792 3.49 828 3.92 864 4.32 899 4.67 933 4.98 966 5.24 998 5.45 1028 5.59 1056 5.67 1083 5.68
6800 742 3.02 778 3.51 814 3.97 850 4.40 886 4.79 921 5.15 955 5.46 988 5.72 1020 5.92 1050 6.07 1078 6.15 1105 6.16
7200 765 3.54 802 4.03 838 4.49 874 4.92 910 5.32 945 5.67 979 5.98 1012 6.24 1044 6.44 1074 6.59 1102 6.67 1129 6.68
7600 790 4.11 827 4.60 863 5.06 899 5.49 935 5.88 970 6.24 1004 6.55 1037 6.81 1069 7.01 1099 7.16 1127 7.24 1154 7.25
8000 817 4.72 853 5.21 890 5.67 926 6.10 962 6.50 997 6.85 1031 7.16 1064 7.42 1095 7.62 1125 7.77 1154 7.85 1180 7.86
8400 845 5.38 881 5.87 918 6.33 954 6.76 990 7.16 1025 7.51 1059 7.82 1092 8.08 1123 8.28 1153 8.43 1182 8.51 1208 8.52
8800 874 6.09 911 6.58 947 7.04 983 7.47 1019 7.86 1054 8.22 1088 8.53 ----------
7.5 HP & Field Supplied Drive
