York AC048X1222 User Manual

036-21106-005 Rev. B (0505)
2 Unitary Products Group

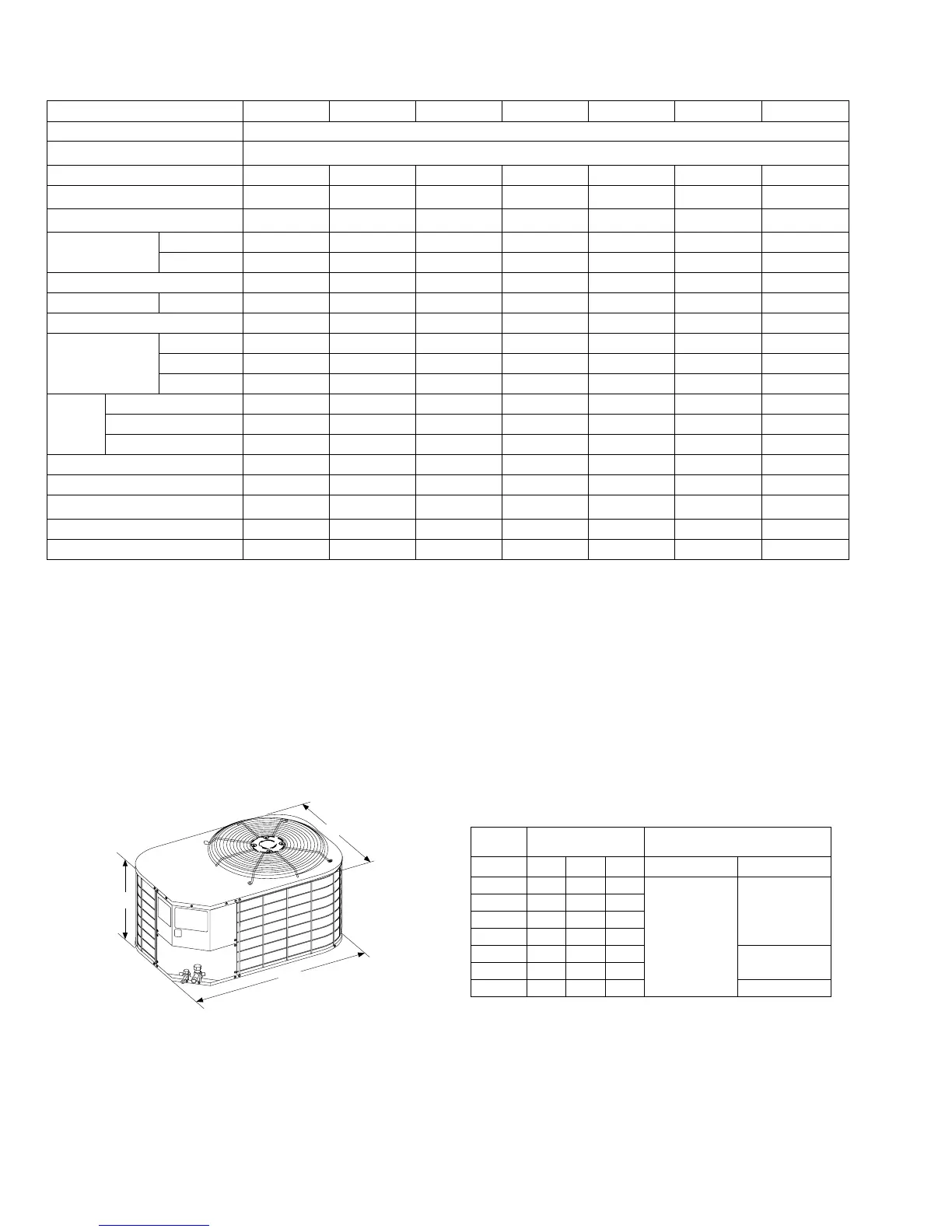

Physical and Electrical Data
MODEL AC018X1222 AC024X1222 AC030X1222 AC036X1222 AC042X1221 AC048X1222 AC060X1224
Unit Supply Voltage 208/230 – 1 – 60
Normal Voltage Range
1
187 to 252
Minimum Circuit Ampacity 10.1 14.1 16.5 19.7 26.2 28.5 37.5
Max. Overcurrent Device Amps
2
15 25 25 30 45 50 60
Compressor Type
3
Recip Inertia Recip Recip
Scroll
B
Recip
Scroll
B
Compressor Amps
Rated Load 7.7 10.9 12.8 14.7 19.9 21.8 28.8
Locked Rotor 48 60 68 82 115 105 145
Crankcase Heater No No No Yes No No No
Fan Motor Amps Rated Load 0.5 0.5 0.5 1.3 1.3 1.3 1.5
Fan Diameter Inches 18 18 22 22 22 22 22
Fan Motor
Rated HP 1/12 1/12 1/15 1/4 1/4 1/4 1/4
Nominal RPM 1,100 1,100 850 850 850 850 850
Nominal CFM 2,000 2,000 2,300 3,300 3,300 3,300 3,450
Coil
Face Area Sq. Ft. 12.58 12.58 15.72 15.72 17.03 19.65 23.58
Rows Deep 1 1 1 1 1 1 1
Fin / Inches 18 18 18 18 18 18 22
Liquid Line OD 3/8 3/8 3/8 3/8 3/8 3/8 3/8
Vapor Line OD 3/4 3/4 3/4 3/4 7/8 7/8 1-1/8
Unit Charge (Lbs. - Oz.)
4
4 - 9 4 - 7 5 - 8 5 - 3 6 - 13 7 - 7 8 - 15
Charge Per Foot, Oz. 0.68 0.68 0.68 0.68 0.70 0.70 0.76
Operating Weight Lbs. 144 146 156 161 157 190 198
1 Rated in accordance with ARI Standard 110, utilization range “A”.
2 Dual element fuses or HACR circuit breaker.
3 All scrolls listed with a superscript “B” are Bristol scrolls. All scrolls listed with a superscript “C” are Copeland scrolls.
4 The Unit Charge is correct for the outdoor unit, matched indoor coil and 15 feet of refrigerant tubing. For tubing lengths other than 15 feet, add or sub-
tract the amount of refrigerant, using the difference in length multiplied by the per foot value.
All dimensions are in inches. They are subject to change without
notice. Certified dimensions will be provided upon request.
* Expander fitting required for 1-1/8” line set.
A
B
C
DIMENSIONS - 1 Phase
UNIT
MODEL
DIMENSIONS
(INCHES)
REFRIGERANT CONNECTION
LINE SIZE
A
11
1 Including Fan Guard.
B C Liquid Vapor
018 25 35 23
3/8””
3/4”
024 25 35 23
030 27 37 27
036 27 37 27
042 29 37 27
7/8”
048 33 37 27
060 39 37 27 7/8”*
