Johnson Controls Unitary Products 3
5151060-YTG-F-1116

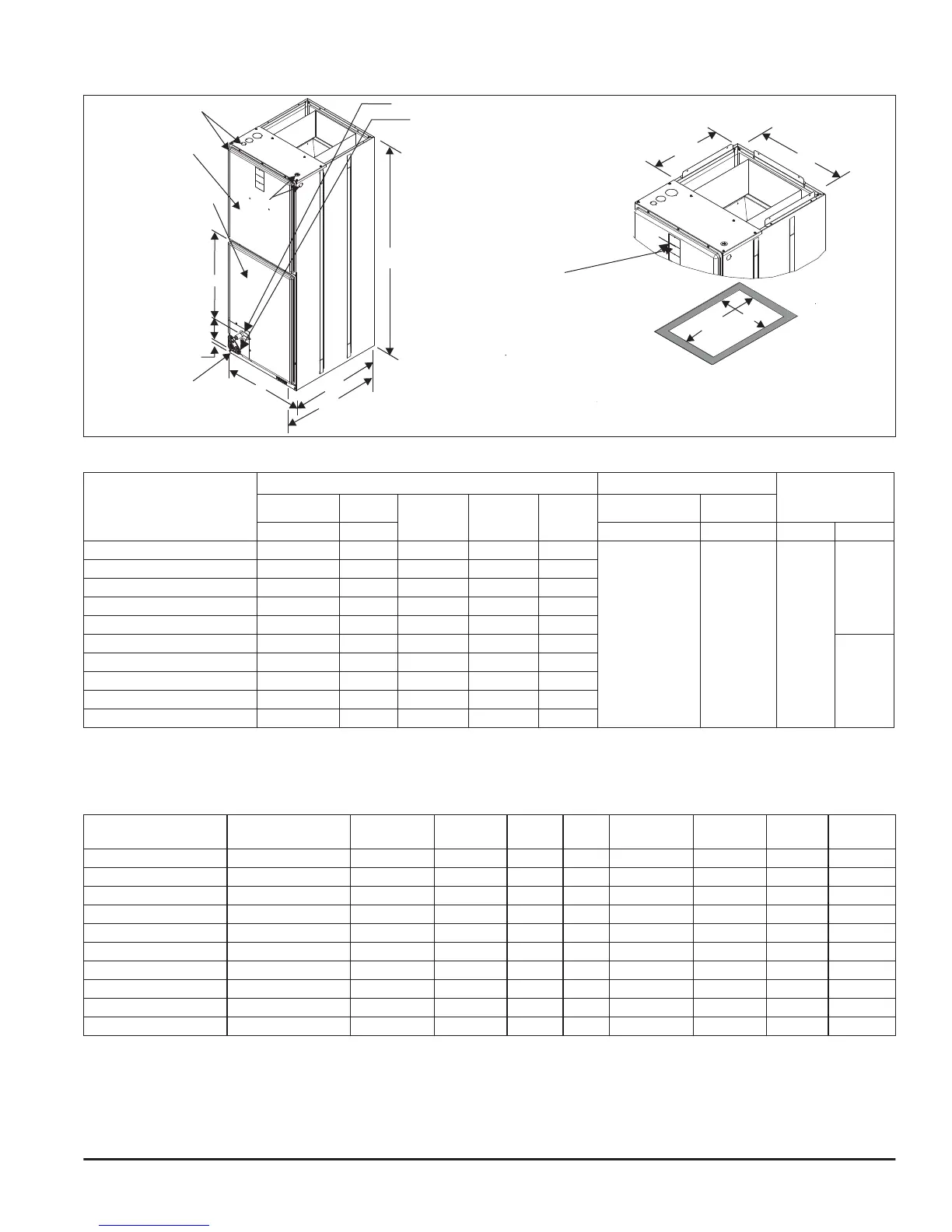

DIMENSIONS & DUCT CONNECTION DIMENSIONS
G
A
1-1/2”
7-11/32”
C
FILTER ACCESS
DRAIN CONNECTIONS
REFRIGERANT CONNECTIONS
BLOWER
COMPARTMENT
12-3/16”
E
BOTTOM INLET
DIMENSIONS
TOP OUTLET
DIMENSIONS
SERVICE
DISCONNECT
PANEL
A0329-001
B
20-1/2”
21-7/16”
F
COIL
COMPARTMENT
18-5/8”
D
DIMENSIONS
Models
Dimensions
1
Wiring Knockouts
2
Refrigerant
Connections
Line Size
AB
CDE
FG
Height Width Power Control Liquid Vapor
AVC18BX21 41 17-1/2 12-7/8 14-1/4 16-1/2
7/8” (1/2”)
1-3/8”(1")
1-23/32” (1-1/4”)
7/8” (1/2”) 3/8”
3/4”
AVC24BX21 41 17-1/2 12-7/8 14-1/4 16-1/2
AVC30BX21 47-1/2 17-1/2 19-1/2 14-1/4 16-1/2
AVC36BX21 47-1/2 17-1/2 19-1/2 14-1/4 16-1/2
AVC36CX21 51-1/2 21 22-5/8 17-3/4 20
AVC42CX21 51-1/2 21 22-5/8 17-3/4 20
7/8”
AVC48CX21 51-1/2 21 22-5/8 17-3/4 20
AVC48DX21 55-1/2 24-1/2 26-5/8 21-1/4 23-1/2
AVC60CX21 55-3/4 21 26-7/8 17-3/4 20
AVC60DX21 55-1/2 24-1/2 26-5/8 21-1/4 23-1/2
1. All dimensions are in inches.
2. Actual size (Conduit size in parenthesis.).
COIL TECHNICAL DATA
Models Application
Refrig.
Conn. Types
Face Area
(Sq. Ft.)
Rows
Deep
Fins
Per In.
Coil Size
Tube
Geometry
Tube
Diameter
Fin
Type
18B Cooling /Heat Pump Sweat 4.3 2 14 (3) 12 x 17.1 1 x 0.866 3/8 Sine Wave
24B Cooling /Heat Pump Sweat 5.0 2 14 (3) 14 x 17.1 1 x 0.866 3/8 Sine Wave
30B Cooling /Heat Pump Sweat 6.4 2 14 (3) 18 x 17.1 1 x 0.866 3/8 Sine Wave
36B Cooling /Heat Pump Sweat 7.1 2 14 (3) 20 x 17.1 1 x 0.866 3/8 Sine Wave
36C Cooling /Heat Pump Sweat 7.1 2 14 (3) 20 x 17.1 1 x 0.866 3/8 Sine Wave
42C Cooling /Heat Pump Sweat 8.6 2 14 (3) 24 x 17.1 1 x 0.866 3/8 Sine Wave
48C Cooling /Heat Pump Sweat 8.6 2 14 (3) 24 x 17.1 1 x 0.866 3/8 Sine Wave
48D Cooling /Heat Pump Sweat 8.6 2 14 (3) 24 x 17.1 1 x 0.866 3/8 Sine Wave
60C Cooling /Heat Pump Sweat 10.0 2 14 (3) 28 x 17.1 1 x 0.866 3/8 Sine Wave
60D Cooling /Heat Pump Sweat 10.0 3 12 (3) 28 x 17.1 1 x 0.866 3/8 Sine Wave
