York DNH 060 - Unit Dimensions - Front; Unit Minimum Clearances

282911-YIM-B-0807
Unitary Products Group 11

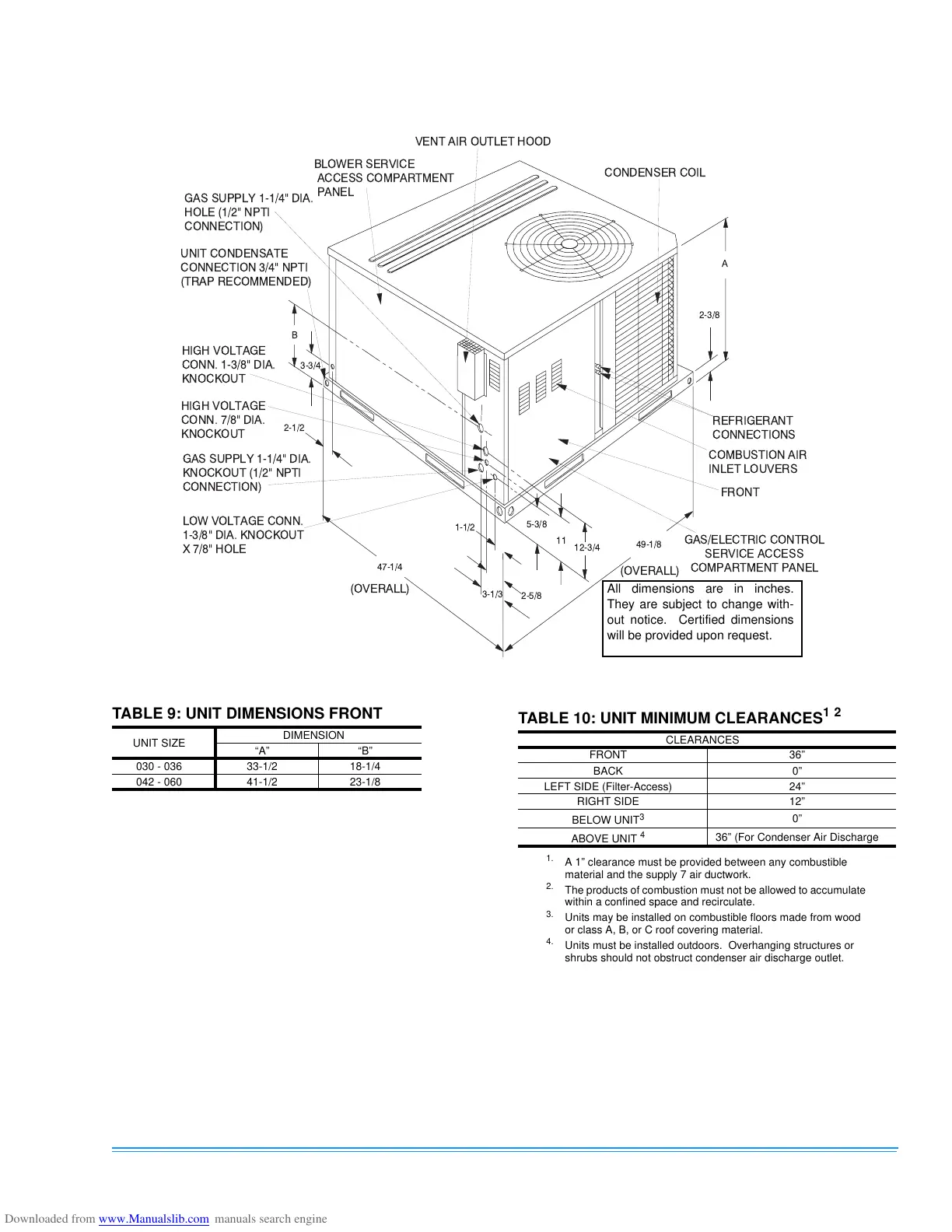

FIGURE 7 - UNIT DIMENSIONS - FRONT
3-3/4
2-1/2
47-1/4
1-1/2
2-5/8
3-1/3
5-3/8
11
12-3/4
49-1/8
A
2-3/8
VENTAIROUTLETHOOD
BLOWERSERVICE
ACCESSCOMPARTMENT
PANEL
GASSUPPLY1-1/4"DIA.
HOLE(1/2"NPTI
CONNECTION)
UNITCONDENSATE
CONNECTION3/4"NPTI
(TRAPRECOMMENDED)
B
HIGHVOLTAGE
CONN.1-3/8"DIA.
KNOCKOUT
HIGHVOLTAGE
CONN.7/8"DIA.
KNOCKOUT
GASSUPPLY1-1/4"DIA.
KNOCKOUT(1/2"NPTI
CONNECTION)
LOWVOLTAGECONN.
1-3/8"DIA.KNOCKOUT
X7/8"HOLE
CONDENSERCOIL
REFRIGERANT
CONNECTIONS
COMBUSTIONAIR
INLETLOUVERS
FRONT
GAS/ELECTRICCONTRO
L
SERVICEACCESS
COMPARTMENTPANEL

(OVERALL)
(OVERALL)
All dimensions are in inches.
They are subject to change with-
out notice. Certified dimensions
will be provided upon request.
TABLE 9: UNIT DIMENSIONS FRONT
UNIT SIZE
DIMENSION
“A” “B”
030 - 036 33-1/2 18-1/4
042 - 060 41-1/2 23-1/8
TABLE 10: UNIT MINIMUM CLEARANCES
1 2
1.
A 1” clearance must be provided between any combustible
material and the supply 7 air ductwork.
2.
The products of combustion must not be allowed to accumulate
within a confined space and recirculate.
CLEARANCES
FRONT 36”
BACK 0”
LEFT SIDE (Filter-Access) 24”
RIGHT SIDE 12”
BELOW UNIT
3
3.
Units may be installed on combustible floors made from wood
or class A, B, or C roof covering material.
0”
ABOVE UNIT
4
4.
Units must be installed outdoors. Overhanging structures or
shrubs should not obstruct condenser air discharge outlet.
36” (For Condenser Air Discharge
