York H3RA060S06 User Manual

036-21121-002 Rev. B (0103)
8 Unitary Products Group
NOTES:
1. For condensing unit only. Does not include effect of evaporator motor power or heat.
2. Performance based on 15° superheat and 15° sub-cooling at condensing unit.
a. Increase capacity 1% for each 2° increase in sub-cooling.
b. Decrease capacity 1% for each 2° decrease in sub-cooling.
3. Sub-cooling in excess of 20° may result in excessively high condensing temperature with air on condenser above 115°F.
Maximum recommended condensing temperature is 140°F.
* Reducer Required.
* Reducer Required.

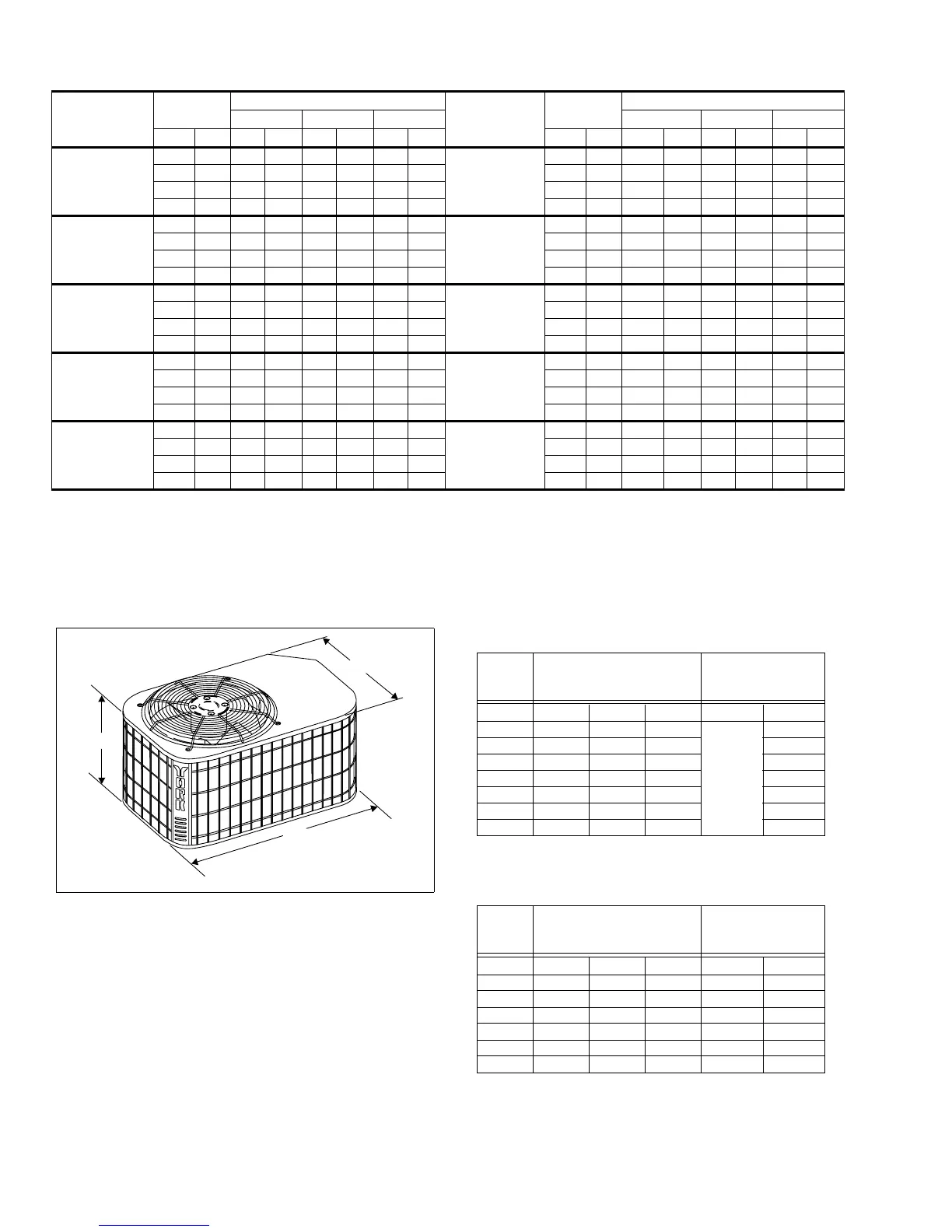

COOLING PERFORMANCE
MODEL
SUCT. T/P
@ COMPR.
AIR TEMP ON CONDENSER
MODEL
SUCT. T/P
@ COMPR.
AIR TEMP ON CONDENSER
75°F95°F115°F75°F95°F115°F
TEMP. PSIG MBH KW MBH KW MBH KW TEMP. PSIG MBH KW MBH KW MBH KW
H1RA018S06
35 61.5 16.2 1.66 13.1 1.84 11.0 1.96
H1RA048S06
H1RA048S(25,46)
35 61.5 39.9 4.18 32.3 4.63 27.0 4.94
40 68.5 17.7 1.67 14.9 1.88 12.8 2.04 40 68.5 43.6 4.21 36.7 4.73 31.4 5.14
45 76.0 19.3 169 16.7 1.92 14.2 2.11 45 76.0 47.6 4.26 41.1 4.84 34.9 5.32
50 84.0 20.8 1.70 18.5 1.96 15.9 2.18 50 84.0 51.1 4.28 45.5 4.94 39.0 5.48
H1RA024S06
35 61.5 21.0 2.23 17.0 2.46 14.2 2.63
H3RA060S06
35 61.5 49.4 4.15 43.8 5.13 38.2 6.34
40 68.5 22.9 2.24 19.3 2.52 16.5 2.74 40 68.5 54.0 4.19 48.2 5.14 42.3 6.35
45 76.0 25.0 2.27 21.6 2.58 18.3 2.83 45 76.0 58.4 4.27 52.4 5.25 46.3 6.47
50 84.0 26.8 2.28 23.9 2.63 20.5 2.92 50 84.0 62.7 4.32 56.9 5.38 50.2 5.61
H2RA030S06
35 61.5 25.1 2.68 20.3 2.97 17.0 3.17
H1RA060S(25,46)
35 61.5 54.4 4.46 50.5 4.74 46.3 5.08
40 68.5 27.4 2.70 23.1 3.04 19.7 3.30 40 68.5 60.1 4.44 56.0 4.83 51.6 5.18
45 76.0 29.9 2.74 25.8 3.10 21.9 3.41 45 76.0 65.8 4.53 61.6 4.92 56.9 5.26
50 84.0 32.1 2.75 28.6 3.17 24.5 3.51 50 84.0 71.9 4.62 67.5 5.01 62.6 5.36
H2RA036S06
H1RA036 S(25,46)
35 61.5 30.5 3.28 24.7 3.64 20.6 3.88
H1RA076S(25,46)
35 61.5 77.4 5.06 63.4 6.08 50.6 7.35
40 68.5 33.3 3.31 28.1 3.72 24.0 4.04 40 68.5 84.5 5.21 69.2 6.23 55.4 7.49
45 76.0 36.4 3.35 31.4 3.80 26.7 4.18 45 76.0 91.8 5.37 75.3 6.38 60.3 7.64
50 84.0 39.1 3.36 34.8 3.88 29.9 4.31 50 84.0 99.4 5.54 81.7 6.55 65.6 7.80
H1RA042S06
H1RA042S(25,46)
35 61.5 35.8 3.83 28.9 4.25 24.2 4.53
H1RA090S(25,46)
35 61.5 84.0 8.28 72.9 9.11 61.7 9.87
40 68.5 39.1 3.86 32.9 4.34 28.2 4.72 40 68.5 92.5 8.50 80.8 9.41 68.9 10.26
45 76.0 42.6 3.90 36.8 4.53 31.3 4.87 45 76.0 101.3 8.73 89.0 9.72 76.5 10.66
50 84.0 45.8 3.93 40.8 4.63 35.0 5.03 50 84.0 110.4 8.95 97.5 10.03 84.4 11.08
C
A
B
DIMENSIONS - 1 Phase
UNIT
MODEL
DIMENSIONS
(INCHES)
REFRIGERANT
CONNECTION
LINE SIZE
A
1
1. Including Fan guard.
B C Liquid Vapor
018 17 35 23
3/8”
5/8”*
024 17 35 23 5/8”*
030 19 35 23 3/4”
036 19 35 23 3/4”
042 25 35 23 3/4”
048 27 37 27 7/8”
060 27 37 27 7/8”
DIMENSIONS - 3 Phase
UNIT
MODEL
DIMENSIONS
(INCHES)
REFRIGERANT
CONNECTION
LINE SIZE
A
1
1. Including Fan guard.
B C Liquid Vapor
036 19 35 23 3/8” 3/4
042 25 35 23 3/8 3/4
048 27 37 27 3/8” 7/8
060 39 37 27 3/8” 7/8
076 26 43 32 1/2 1-1/8
090 32 43 32 1/2 1-1/8
