Model : 24-30, 1Ph (Cooling and Heating)
Power supply
220-240V/1Ph/50Hz
220-230V/1Ph/60Hz
Outdoor
Indoor
LN1
2(N)
345678
1
2(N) 345678
Model : 24-30, 1Ph (Cooling only)
Power supply
220-240V/1Ph/50Hz
220-230V/1Ph/60Hz
LNS
LN 12(N) 3
Outdoor
Indoor
CNAB 1 324567
AN 1 324567
AN1 2 3 4
CNAB 12 34
Model : 30, 3Ph (Cooling only) Model : 30, 3Ph (Cooling and Heating)
For correct installation, a proper ground connection must be made for unit.
Indoor
Outdoor
Indoor
Outdoor
Power supply
380-415V/3Ph/50Hz
430V/3Ph/60Hz
Power supply
380-415V/3Ph/50Hz
430V/3Ph/60Hz

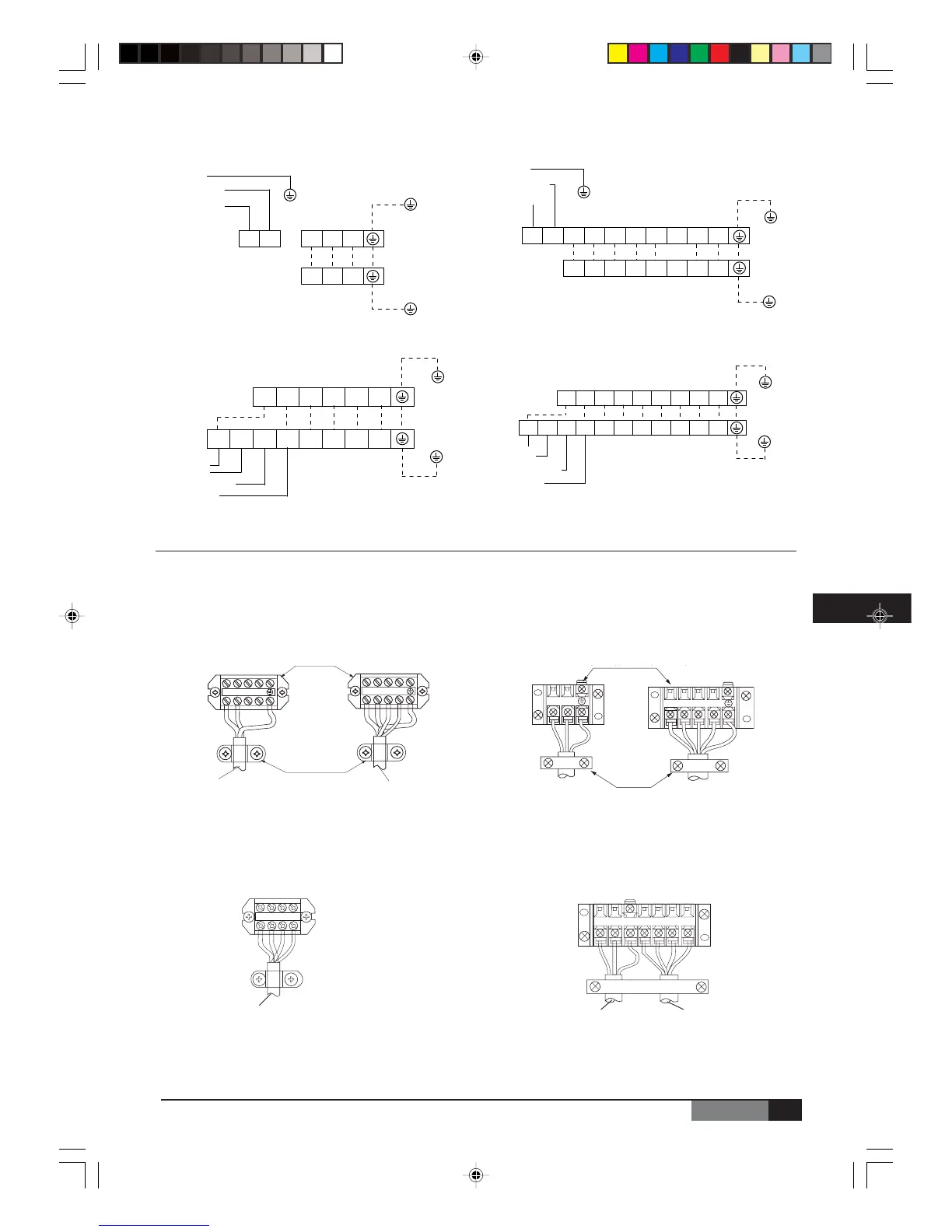

■ Wiring Connection
Model : 07-21
Indoor
Outdoor
To outdoor unit
Cooling & Heating type
Cooling only type Cooling & Heating type
Cord clamp
1 2(N) 3 4
To outdoor unit
To outdoor unit
1 2(N) 3 4
123 4
LN
G
1234
Model : 09-12 [115V, 60Hz (UL)]
Indoor
Outdoor
Terminal block of indoor unit Terminal block of outdoor unit
Power supply To indoor unit
Cooling only type Cooling only type
Cooling only type
Terminal block of indoor unit Terminal block of outdoor unit
cct t t
1 2(N)
Wire-holding
board
1 2(N) 3 4
Cord clamp
