Be careful when handling the sharp edge of the mounting
plate.

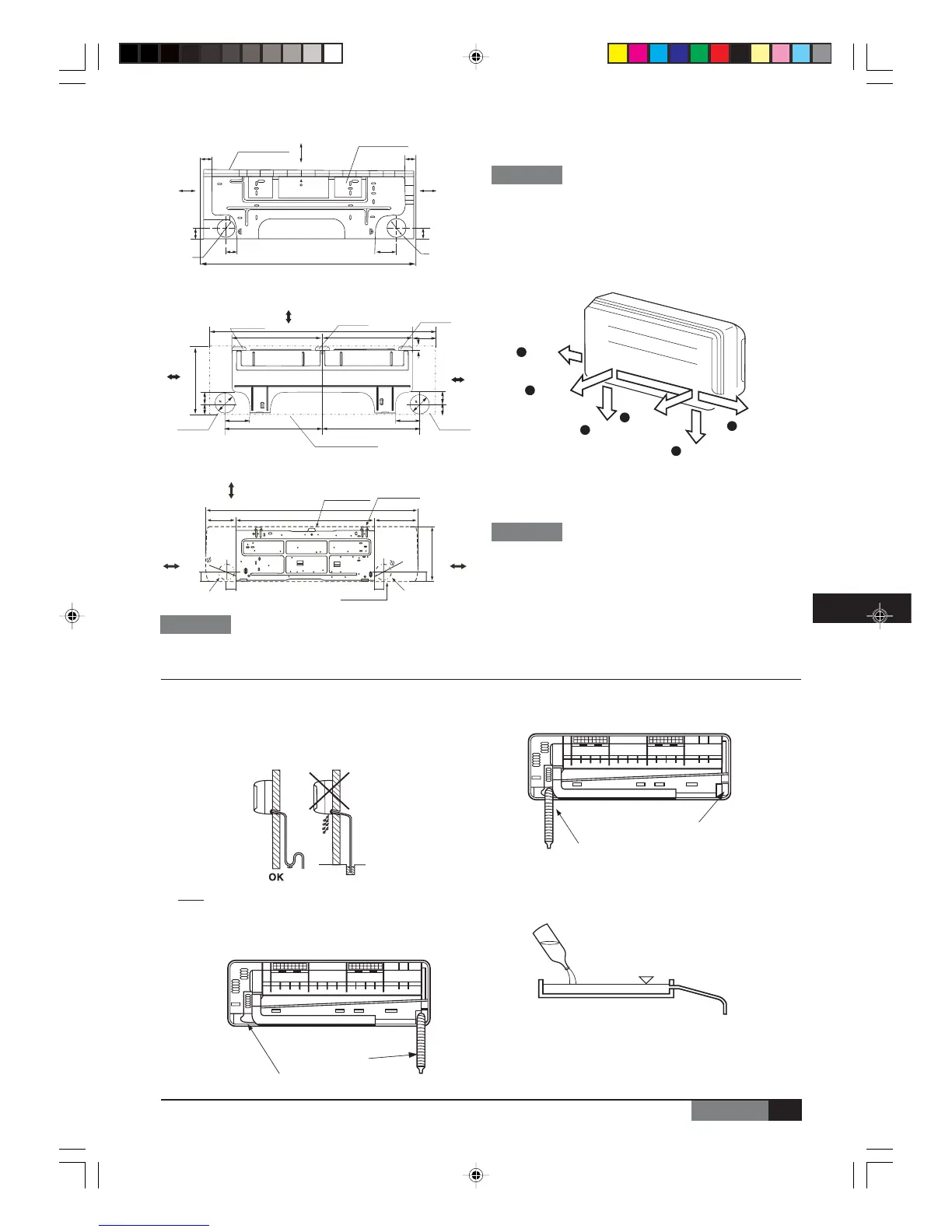

Piping
The auxiliary piping can be connected in the diections
shown the above diagram. To connect in the D, E and
F direction, pipes will need to be extended.
Bend pipes carefully to avoid flattening or obstructing
them if the pipes are bent incorrectly, the indoor unit
may be unstable on the wall.
Carefully arrange pipes so that pipes do not stick out
of the rear plate of the indoor unit.
A
B
C
D
E
F
MODEL 18 [220-230V, 60Hz (UL)], 24-30
Above 15 cm from the ceiling
Hooked Part
Hooked Part
Hooked Part
Above 12 cm
from the wall
Indoor Unit Outline
Pipe holePipe hole
Right
Right
Right
Right
Left
Rear Bottom
Drain hose
Drain hose is flexible and can be routed to suit various
piping arrangements. The drain line must include elbow
trap (U bend). Connect a plastic condensate pipe with
an internal diameter of 12 mm.
The drain hose can be connected to the left or the
right side.
Verification of condensate water drainage:
Fill the drain pan with water and observe evacuation.
Note: Do not put the drain hose end into water.
Drain hose
For left and left rear piping
Drain cap
Drain cap
For right and right rear piping
CAUTIONS
CAUTIONS
325
9
5
95
55
1250
815
257
178
55
58
55
Drain hose
Wiring
This indoor unit is ready for connection to the outdoor unit.
Never modify the unit by removing any of the safety guards
or by passing any of the safety interlock swithces.
Connect the interconnecting cable correctly and connect
the connecting cable to terminal as identified with their
respective marking.
Do not damage the conductor core or inner insulation of
power supply cables and do not deform or crush the cables.
CAUTIONS
Above 15 cm from the ceiling
Hooked Part
Indoor Unit Outline
Pipe hole
Hooked Part
MODEL 36
Pipe hole
Above 12 cm
from the wall
Above 12 cm
from the wall
Above 12 cm
from the wall
50
42
906
49
90
55
50
MODEL 18 [220-240V, 50/60 Hz], 21
15 cm or more
to ceiling
Indoor unit outline
Installation plate
12 cm or more
to wall
12 cm or more
to wall
Right
pipe hole
ø65 mm
Left pipe hole
ø65 mm
