York PCG4B48 User Manual

5005562-YTG-A-0215
Johnson Controls Unitary Products 3
NOMENCLATURE

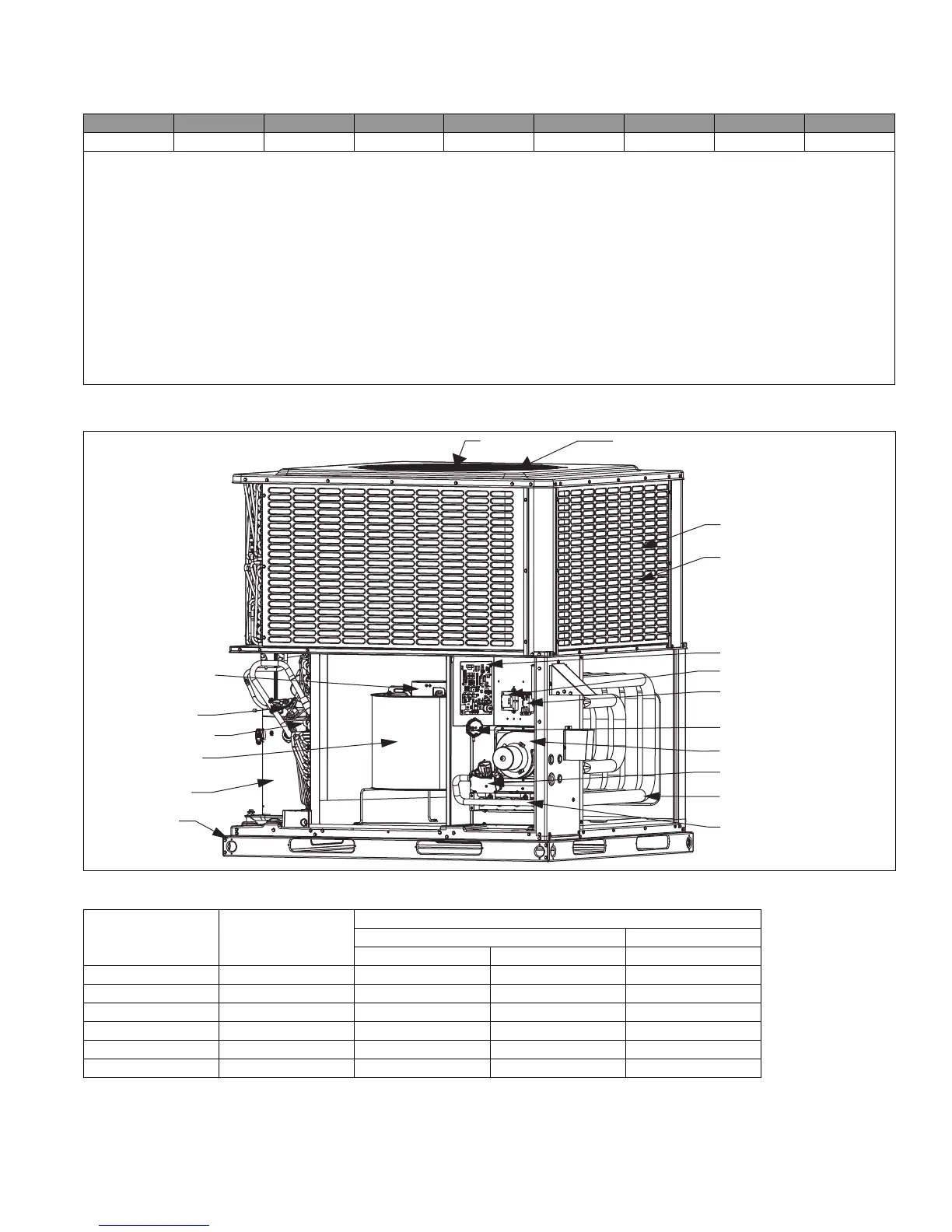

COMPONENT LOCATION
PCG 4 A 24 50 2 X 1 A
123456789
1. Model Family
PCG - packaged A/C with gas heat,
PHG - packaged heat pump with gas heat,
PCE - packaged A/C with electric heat,
PHE - packaged heat pump with electric heat
5. Gas Heating Input BTU/Hr x 1000
050 = 50,000 BTU/Hr. input, blank = electric heat
6. Voltage-Phase-Frequency
2 = 208/230-1-60, 3=208/230-3-60, 4 = 460-3-60
2. Nominal Cooling Efficiency
4 = 14 SEER, 6 = 16 SEER, etc.
7. NOx Approval
X = low-NOx, blank = not low-Nox
3. Cabinet Size
A = small 35 x 51, B = large 45 x 51
8. Generation Level
1 = first generation
4. Nominal Air Conditioning Cooling Capacity BTUx1000
24 = 24,000 BTU, etc.
9. Revision Level
A = original release, B = second release
Examples:
PHG4B421002X1A is a dual fuel, 14 SEER, 3-1/2 ton, large cabinet, single-stage heat, 100,000 BTU gas heat, 230 volt, single phase, low-NOx
model (first generation, first release)
FAN MOTOR
CONDENSER FAN
COIL GUARD PANEL
CONDENSER COIL
(Behind Panel)
CONTROL BOARD
TRANSFORMER
HIGH VOLTAGE
CONTACTOR
PRESSURE SWITCH
DRAFT INDUCER BLOWER
GAS VALVE
BURNER
ASSEMBLY
GAS HEAT
EXCHANGER
BLOWER MOTOR
TXV
EVAPORATOR COIL
INDOOR BLOWER
COMPRESSOR
REMOVABLE
BASE RAILS
A0297-001
Unit Limitations
Model Unit Voltage
Unit Limitations
Applied Voltage Outdoor DB Temp
Min Max Max (°F)
PCG4024 208/230-1-60 187 252 125
PCG4030 208/230-1-60 187 252 125
PCG4036 208/230-1-60 187 252 125
PCG4042 208/230-1-60 187 252 125
PCG4048 208/230-1-60 187 252 125
PCG4060 208/230-1-60 187 252 125
