Weights and Dimensions

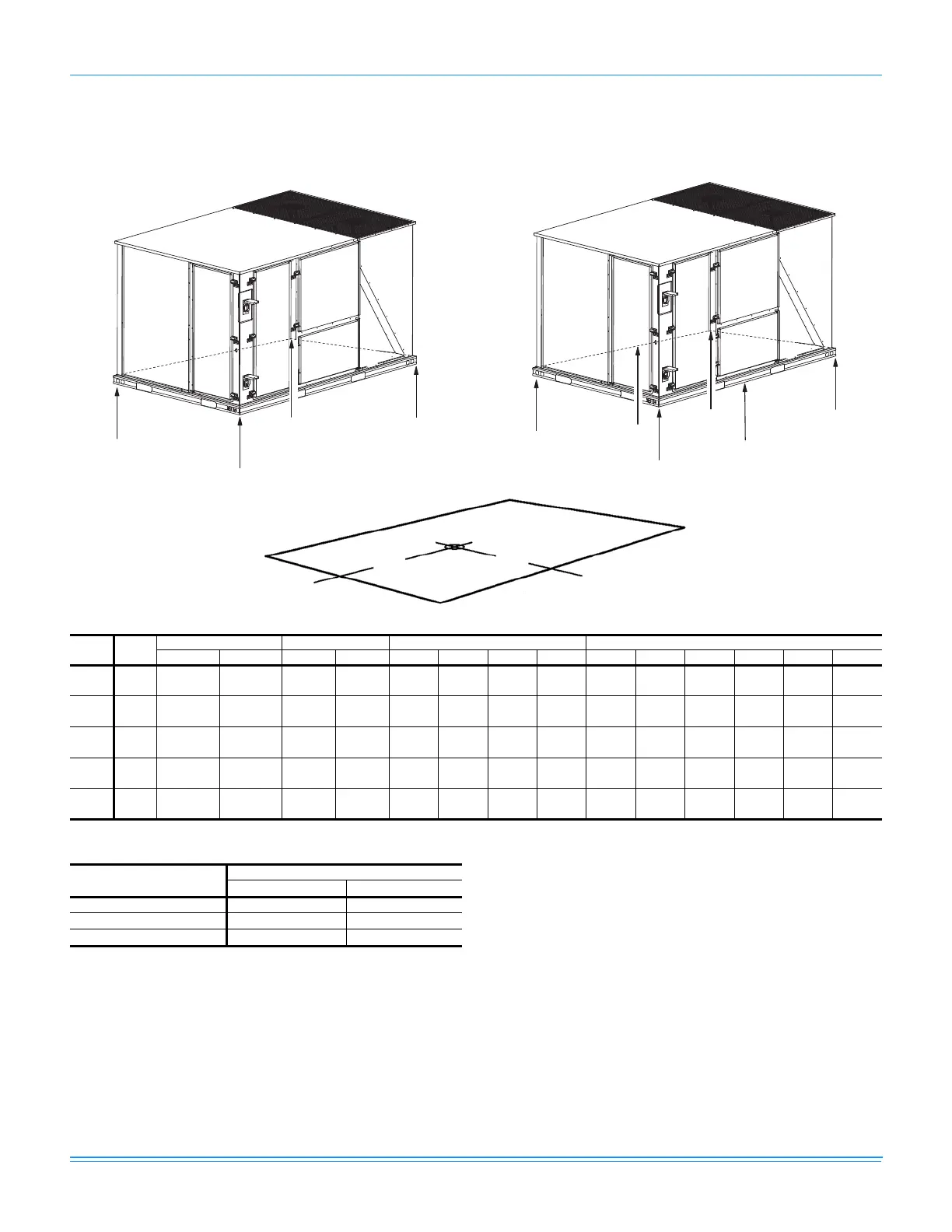

XP078-150 Unit Weights
Unit 4 Point Load Weight Unit 6 Point Load Weight
D
A
CB
LEFT
FRONT
D
A
C
B
E
F
LEFT
FRONT
Size
(Tons)
Model
Weight (lbs.) Center of Gravity 4 Point Load Location (lbs.) 6 Point Load Location (lbs.)
ShippingOperatingX Y ABCDABCDEF
078
(6.5)
XP 1085 1080 38 25 262 195 266 357 184 150 124 169 204 250
090
(7.5)
XP 1095 1090 38 23 243 181 284 381 171 139 115 181 217 267
102
(8.5)
XP 1142 1137 38 25.5 282 210 276 370 197 161 133 175 211 259
120
(10)
XP 1140 1135 38 25.5 281 209 275 369 197 160 133 175 211 259
150
(12.5)
XP 1408 1403 51 25.5 259 347 456 340 165 198 244 320 260 216
X
Y
LEFT
FRONT
XP078-150 Unit Accessory Weights
Unit Accessory
Weight (lbs.)
Shipping Operating
Economizer 90 85
Power Exhaust 40 35
Electric Heat
1
1. Weight given is for the maximum heater size available
(54KW).
49 49
