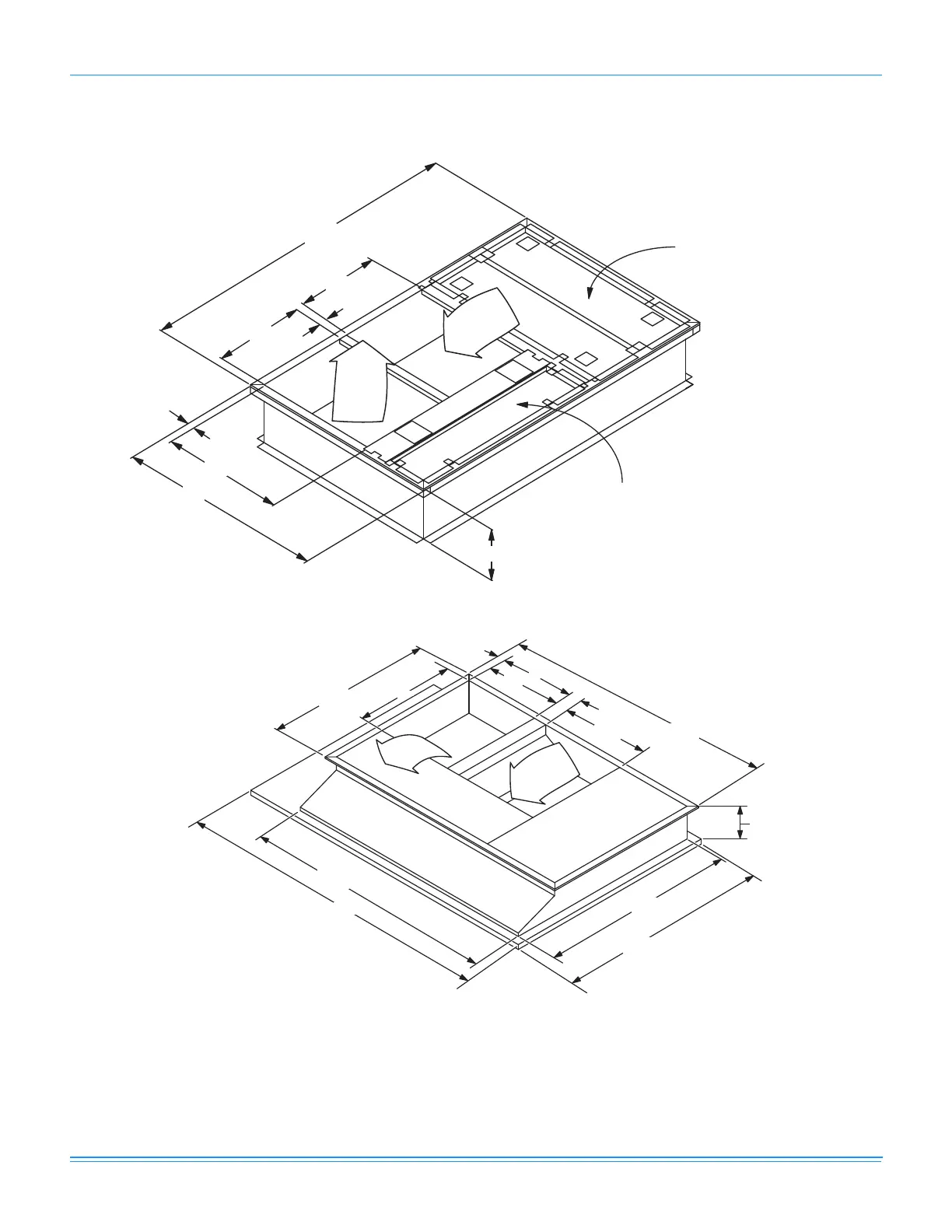

ZF078-150 Unit Accessory Dimensions
ZF078-150 Roof Curb
ZF078-150 Transition Roof Curb
8 or 14
50-1/2
30
20
20
80-5/8
6
2TYP.
INSULATED DECK UNDER
COMPRESSOR SECTION
INSULATED DECK UNDER
CONDENSER SECTION
FRONT
RIGHT
SUPPLY
RETURN
76-5/8
94
50-1/2
30-1/2
64-1/4
59-1/4
10
23
4
26
80-5/8
2TYP
FRONT
RIGHT
SUPPLY
RETURN
