York PV8 User Manual

036-21606-001 Rev. A (0804)
2 Unitary Products Group
A
40
26-3/4
1-3/8
1-1/4
C
20
5/8
5/8
B
24-3/4
FRONT
BOTTOM IMAGE
RETURN END
TOP IMAGE
SUPPLY END
LEFT SIDE
RIGHT SIDE
D
20
30-1/8
14-3/4
5-3/8
(VENT CONNECTIONS)
POWER WIRING
7/8” HOLE
2-1/2
ACCESS
WIRING
7/8” K.O.
16
8-3/4
T’STAT WIRING
7/8” K.O.
1-1/8
2-1/4
14
23-1/2
32-1/2
2
13-3/4
GAS INLET
1-1/4 x 2-1/2
D
4” Diameter

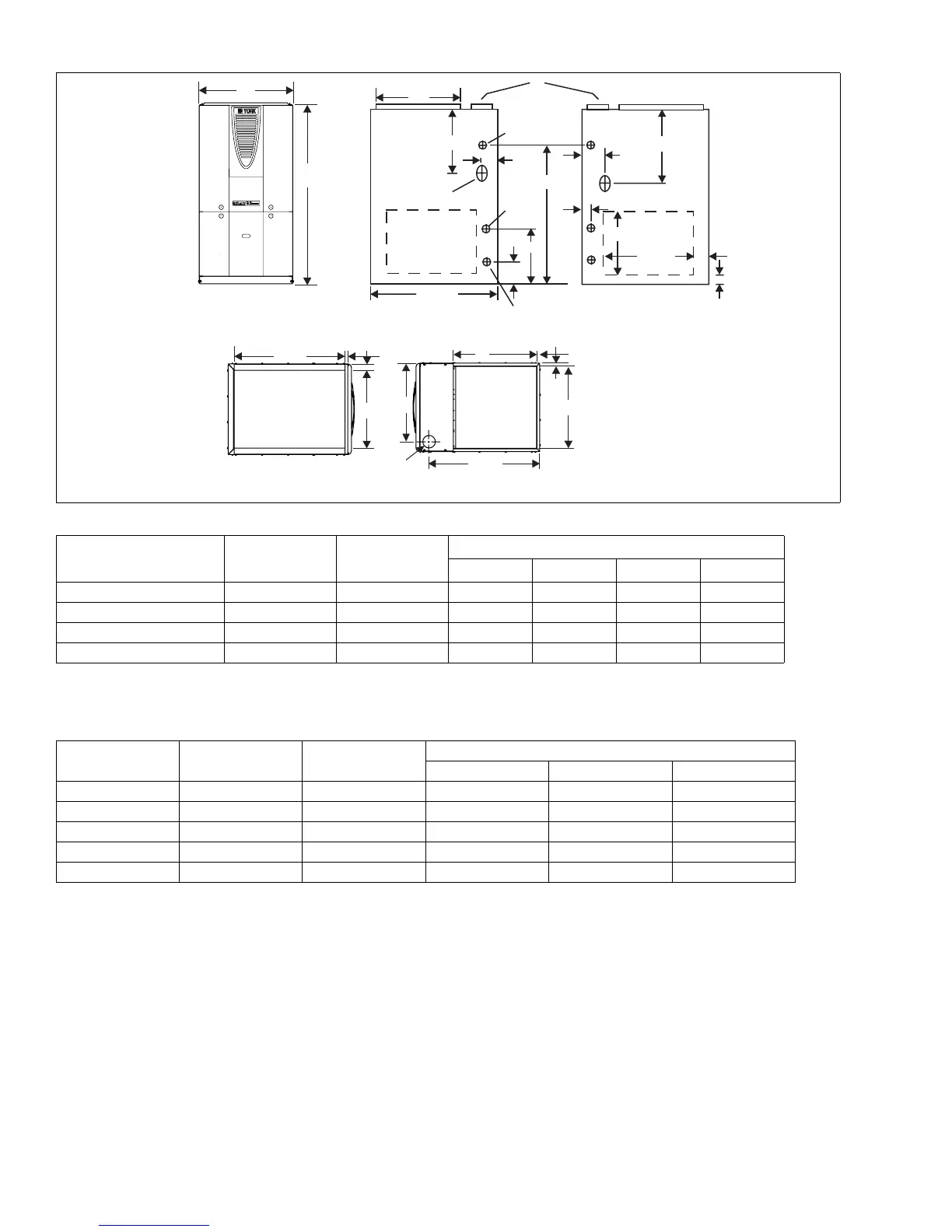

CABINET AND DUCT DIMENSIONS
MODEL CFM
Cabinet
Size
Cabinet Dimension
ABCD
PV8A12(N,L)080UH11 1200 A 14 1/2 13 1/4 10 1/8 10 1/8
PV8B16(N,L)100UH11 1600 B 17 1/2 16 1/4 15 1/4 11 5/8
PV8C20(N,L)100UH11 2000 C 21 19 3/4 16 5/8 13 3/8
PV8C20(N,L)120UH11 2000 C 21 19 3/4 16 5/8 13 3/8
HORIZONTAL VENTING-MUST USE FIELDS CONTROL MODELS SWG-4Y OR TJERENLAND MODEL GPAK-JT FIELD
SUPPLIED POWER VENTING KITS
Heating Input Heating Input Furnace Airflow
Horizontal Vent Length Ft with 4 Elbows
Pipe Size Min. Vent Length Max. Vent Length
BTU/H BTU/H CFM Inches Feet Feet
80,000 64,000 1200 4 4.5 34.5
100,000 80,000 1600 4 4.5 34.5
100,000 80,000 2000 4 4.5 34.5
120,000 104,000 2000 4 4.5 34.5

York PV8 Specifications

General

Brand	York
Model	PV8
Category	Furnace
Language	English
