York PV8 User Manual

036-21606-001 Rev. A (0804)
Unitary Products Group 3
Annual Fuel Utilization Efficiency (AFUE) numbers are determined in accordance with DOE Test procedures.
Wire size and over current protection must comply with the National Electrical Code (NFPA-70-latest edition) and all local codes.
The furnace shall be installed so that the electrical components are protected from water.
* ESP (External Static Pressure) .5" WG is at furnace outlet ahead of cooling coil.
NOTES:
1. All filters must be high velocity cleanable type.
2. Air flows above 1800 CFM require either return from two sides or one side plus bottom.

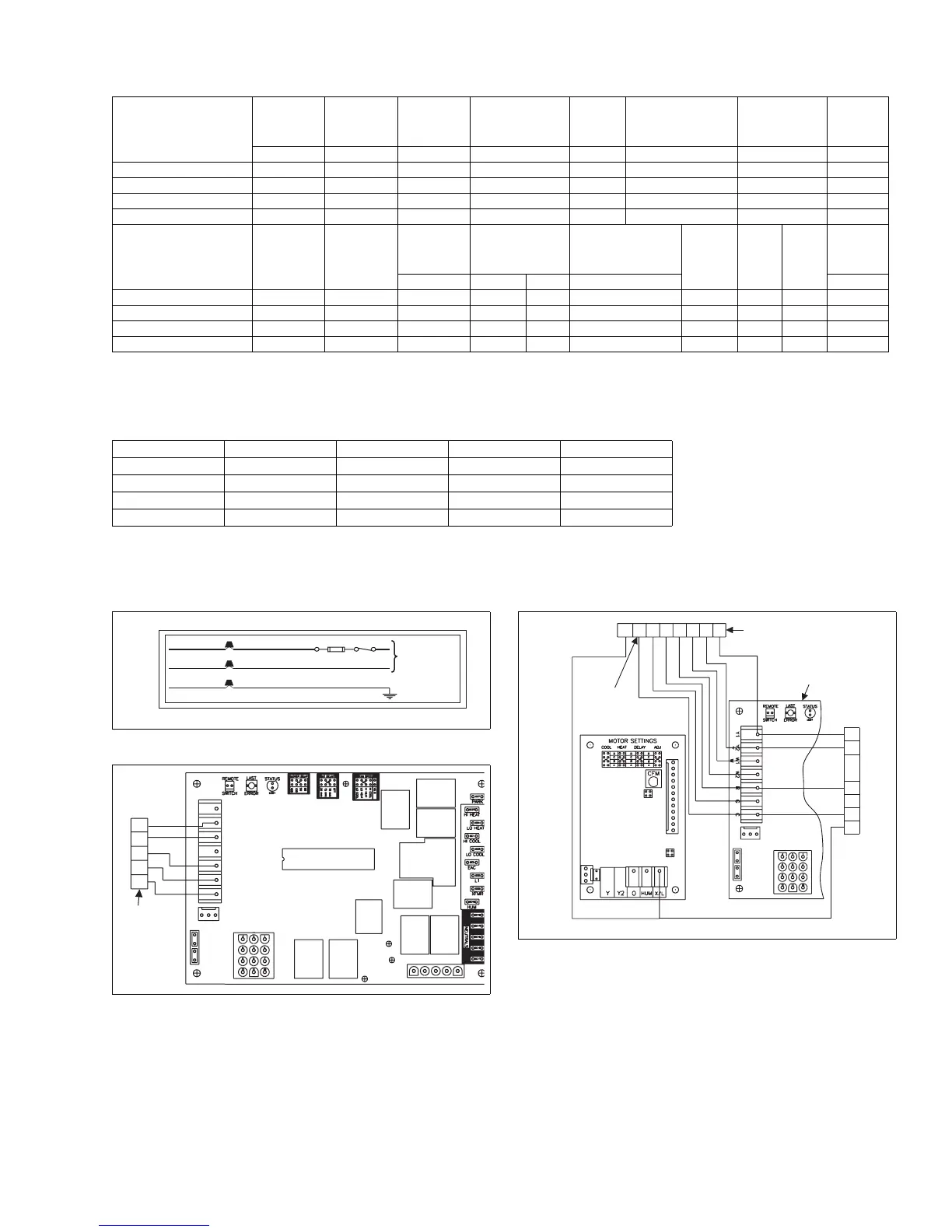

RATINGS & PHYSICAL / ELECTRICAL DATA
MODEL
Input
BTU/H
Output
BTU/H
Airflow
Cabinet
Width
AFUE
Low Fire
Air Temp. Rise
High Fire
Air Temp.
Rise
High/Low High/Low CFM In °F °F
PV8A12(N,L)080UH11 80/59 64/48 1200 14 1/2 80.0 40-70 40-70
PV8B16(N,L)100UH11 100/65 80/53 1600 17 1/2 80.0 40-70 40-70
PV8C20(N,L)100UH11 100/65 80/53 2000 21 80.0 40-70 40-70
PV8C20(N,L)120UH11 120/78 96/64 2000 21 80.0 35-65 35-65
MODEL
Input BTU/
H
High/Low
Output
BTU/H
High/Low
Max.
Outlet Air
Temp
Blower Blower Size Unit
Amps
Max
Fuse
Size
Min
Wire
Size
Operatio
n
Weight
°F Hp Amps In Lbs
PV8A12(N,L)080UH11 80/59 64/48 175 1/2 7.7 10 x 8 9.0 20 14 117
PV8B16(N,L)100UH11 100/65 80/53 170 3/4 9.6 10 x 10 12.0 20 14 128
PV8C20(N,L)100UH11 100/65 80/53 170 1 12.8 11 x 10 14.0 20 12 145
PV8C20(N,L)120UH11 120/78 96/64 170 1 12.8 11 x 10 14.0 20 12 147
FILTER SIZES
Cabinet Size Side (in) Side (cm) Bottom (in) Bottom (cm)
A 16 x 26 40.6 x 66.0 14 x 26 35.6 x 66.0
B 16 x 26 40.6 x 66.0 16 x 26 40.6 x 66.0
C (2) 16 x 26 (2) 40.6 x 66.0 20 x 26 50.8 x 66.0
D (2) 16 x 26 (2) 40.6 x 66.0 20 x 26 50.8 x 66.0
Field Wiring for Single Stage Thermostat
BLK
WHT
GRN
BLK (HOT)
WHT (NEUTRAL)
GRN
NOMINAL
120 VOLT
Y
W1
R
G
C
Y1
Y2
Y
W1
W
W2
R
G
C
NGLE STAGE
H
ERMOSTAT
T’STAT
COMMON
CONNECTION
Field Wiring for Two Stage Thermostat
Y1
Y2
W1
W2
R
G
C
X/L
Y1
Y2
R
C
X/L
CFM
TIMER
BOARD
INTEGRATED
CONTROL
T’STAT
COMMON
CONNECTION
TWO-STAGE
THERMOSTAT
OUTDOOR
UNIT
