135
JOHNSON CONTROLS
SECTION 5 – TECHNICAL DATA
FORM 150.67-NM1
ISSUE DATE: 4/28/2017
55
WEIGHT DISTRIBUTION AND ISOLATOR MOUNTING POSITIONS
YCAL0043 – 0066
General
Weights of specific chiller models vary significantly as
options are added. As a result, total weights, weights at
individual isolator positions, and actual isolator selec-
tion at each position cannot be published due to the
vast number of possible combinations. This informa-
tion will be available when the specific chiller/ option
selection is made from the local YORK sales office.
Be aware, weights will change with each option along
with possible isolator changes. Weights and isolators
may need to be recalculated when the option selections
are changed.
Whenever the isolator option is ordered, the isolators
will be shipped loose with the chiller. Packed with
the isolators and also in the control panel informa-
tion packet is a drawing and table specifically for each
chiller, based on the option selection. The drawing
and table will be similar to the ones shown below. The
drawing will show the isolator locations along with the
weight in pounds and kilograms at the specific loca-
tion, isolator position, and location measurements for
each isolator.

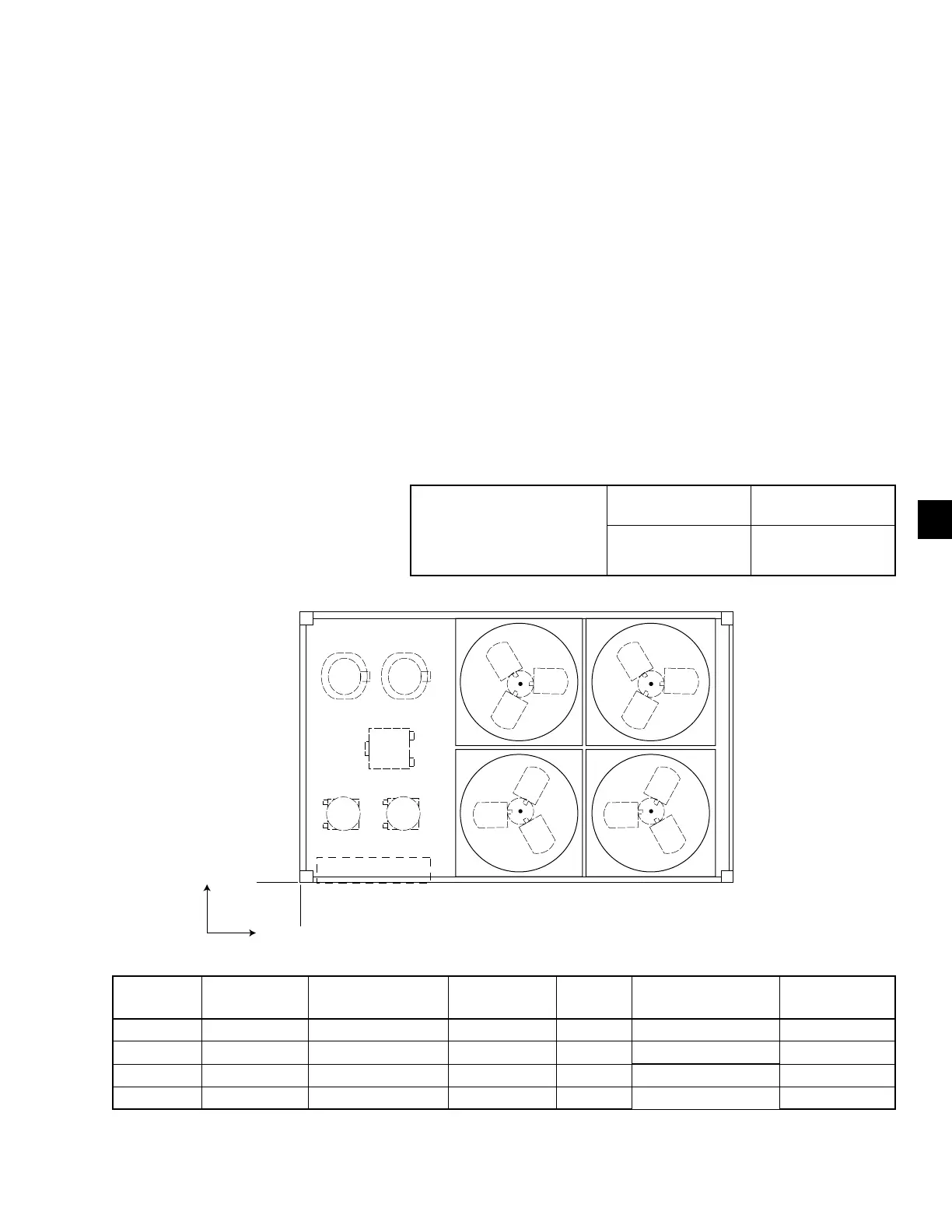

Approximate Isolator Locations
LOCATION
X DISTANCE
INCHES (MM)
Y DISTANCE
INCHES (MM)
JCI PART
NUMBER
SAP
NUMBER
COLOR
OPERATING
WEIGHT
R1 9.8 (249) 1.1 (28) 029-25335-002 434004 RD-4 Brick Red-WR 941
R2 135 (3429) 1.1 (28) 029-25335-001 434002 RD-3 Charcoal-WR 613
L1 9.8 (249) 89.5 (2273) 029-25335-002 434004 RD-4 Brick Red-WR 875
L2 135 (3429) 89.5 (2273) 029-25335-001 434002 RD-3 Charcoal-WR 570
SAMPLE PRINTOUT SUPPLIED IN THE ISOLATOR PACKAGE AND IN THE CHILLER PANEL LITERATURE PACKET.
Order No: 051138540701
Line No: 1
UNIT SHIPPING WEIGHT
(DISPLAY ON UNIT DATA
NAMEPLATE)
KG LBS.
1360 2999
R2
0
X
TOP VIEW
0
R1
Y
Control Panel
