JOHNSON CONTROLS
132
FORM 150.67-NM1
ISSUE DA
TE: 4/28/2017
SECTION 5 – TECHNICAL
DA
T
A
TECHNICAL DA
T
A

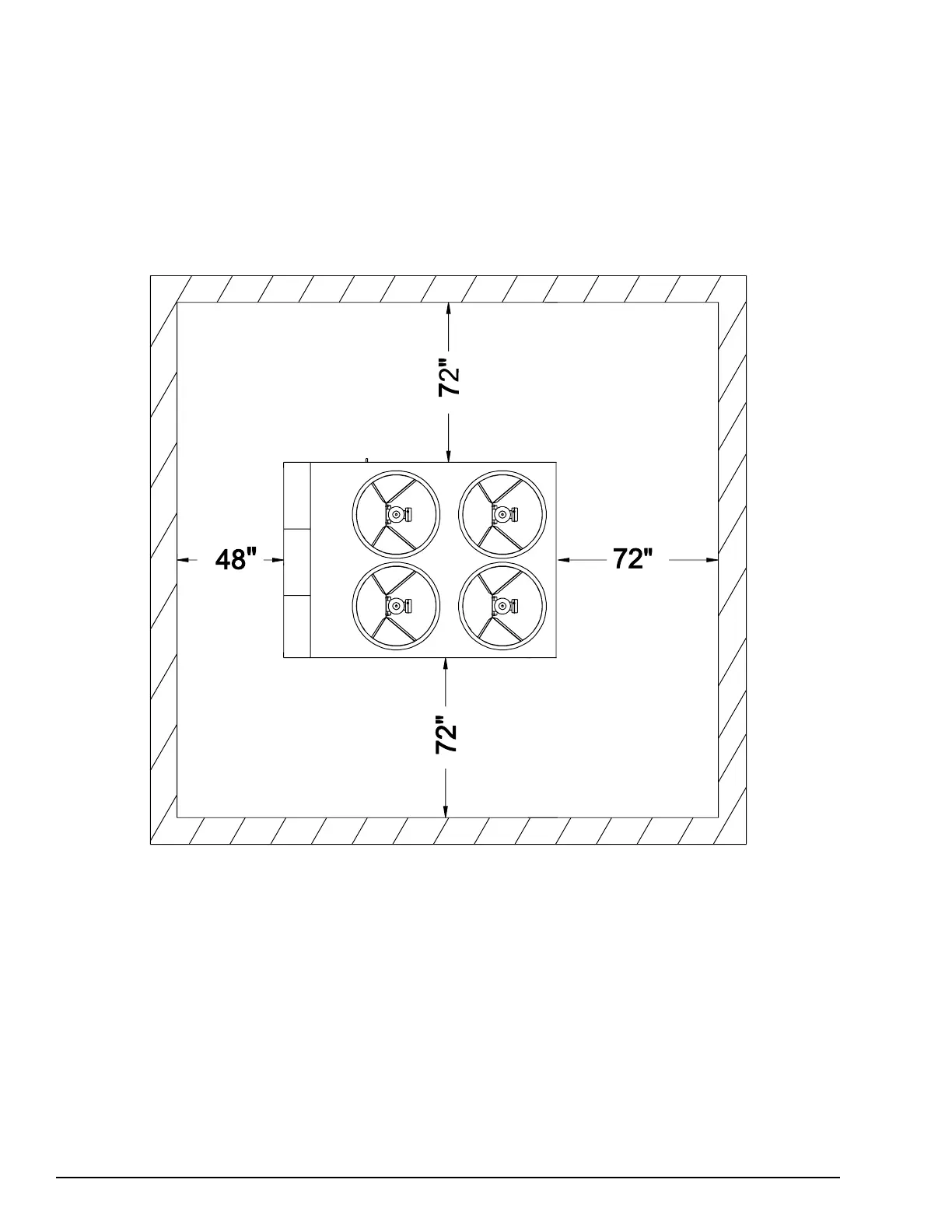

– CLEARANCES
(1.3 m)
(2 m)
(2 m)
(2 m)
NOTES
:
1.
No obstructions allowed above the unit.
2.
Only one adjacent wall may be higher than the unit.
3.
Adjacent units should be 10 feet (3 Meters) apart.
LD10506
FIGURE 30 -
UNIT CLEARANCES –
ALL
MODELS
131
133
