SECTION 5 – TECHNICAL DATA
FORM 150.67-NM1
ISSUE DATE: 4/28/2017
55
ENGLISH
SIZE H T D E L HCL W HCW MBD
2-C2 8-1/2” 3/8” 5/8” 1-3/8” 14” 12-1/4” 5-1/4” 3-1/ 2” 5/8"
SI
SIZE H T D E L HCL W HCW MBD
2-C2 215.9 9.5 15.9 34.9 355.6 311.2 133.4 88.9 5/8"
*WEIGHT RANGE
(LBS)
WEIGHT RANGE
(KG)
MODEL NUMBER COLOR YORK P/N
UP TO 358 LBS UP TO 162 KG SLRS-2-C2- RED 029-24585-006
358 TO 443 LBS 162 TO 201 KG SLRS-2-C2- WHITE 029-24585-007
443 TO 582 LBS 201 TO 264 KG SLRS-2-C2- BLACK 029-24585-008
582 TO 783 LBS 264 TO 335 KG SLRS-2-C2- BLUE 029-24585-009
783 TO 1038 LBS 335 TO 471 KG SLRS-2-C2- GREEN 029-24585-010
1038 TO 1497 LBS 471 TO 679 KG SLRS-2-C2- GRAY 029-24585-011
1497 TO 2058 LBS 679 TO 933 KG SLRS-2-C2- SILVER 029-24585-012
2058 TO 2619 LBS 933 TO 1188 KG SLRS-2-C2- GRAY W/ RED 029-24585-013
2619 TO 3180 LBS 1188 TO 1442 KG SLRS-2-C2- SILVER W/ RED 029-24585-014
*Value is de-rated by 15%
TWO INCH DEFLECTION, SEISMIC SPRING ISOLATOR CROSS-REFERENCE
Units shipped before June 15, 2008
E
E
E
E
H
T
HCW
W
L
HCL
"D" Tap - 4 Holes unless
otherwise requested
Adjustment
Bolt
Vertical Limit
Stops-Out of
contact during
normal operation
Non-Skid Neoprene Pad-
Pad can be removed if
mounts are welded
into position.
Enclosed
Steel
Housing
Internal
Neoprene
Acoustical
Pad
Rubber
Snubbing
Collar
MBD -Max
Bolt
Diameter
LD10509
“D” Tap - 4 Holes unless
otherwise requested.
Vertical Limit Stops-Out
of contact during normal
operation.
Rubber Snubbing Collar
Lower
Restraining
Nut
Enclosed Steel
Housing
Internal Neoprene
Acoustical Pad
Adjustment Bolt
MDB - Max Bolt
Diameter
Non-skid Neoprene Pad
- Pad can be removed if
mounts are welded into
position.
L
W
E
E
H
T
E
E
HCL
HCW
SLRS
NOTES: Illustration above shows a SLRS-4-C2 (4 springs). SLRS-8-2 and C2 have 1 spring, and SLRS-2-C2 has two springs.
SLRS-6-C2 has six springs and SLRS-9-C2 has nine springs.

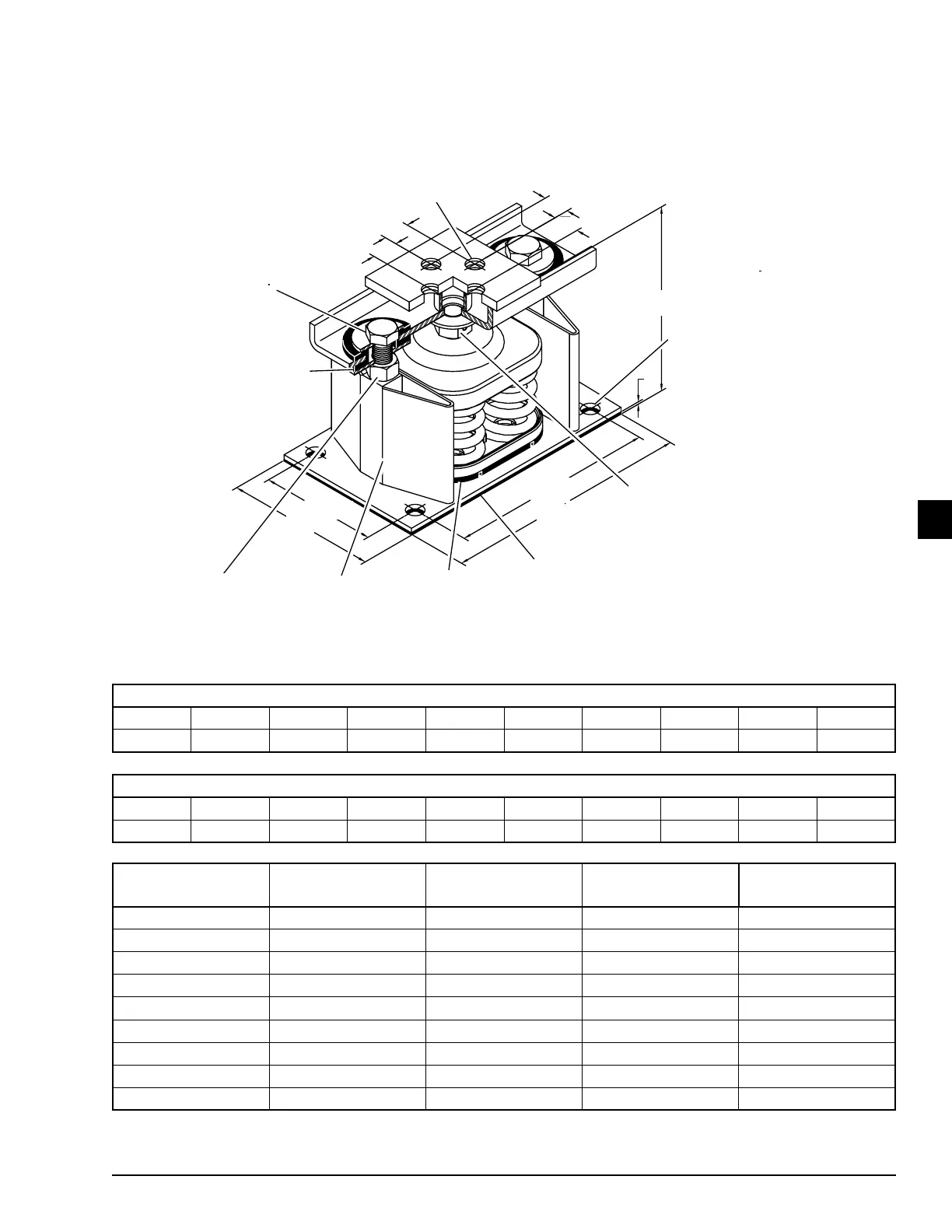

FIGURE 39 - TWO INCH DEFLECTION, SEISMIC SPRING ISOLATOR CROSS-REFERENCE
