York YCAL0134 User Manual

JOHNSON CONTROLS
49
FORM 150.62-EG1 (507)
LD04869
ALUMINUM
COPPER
YCAL

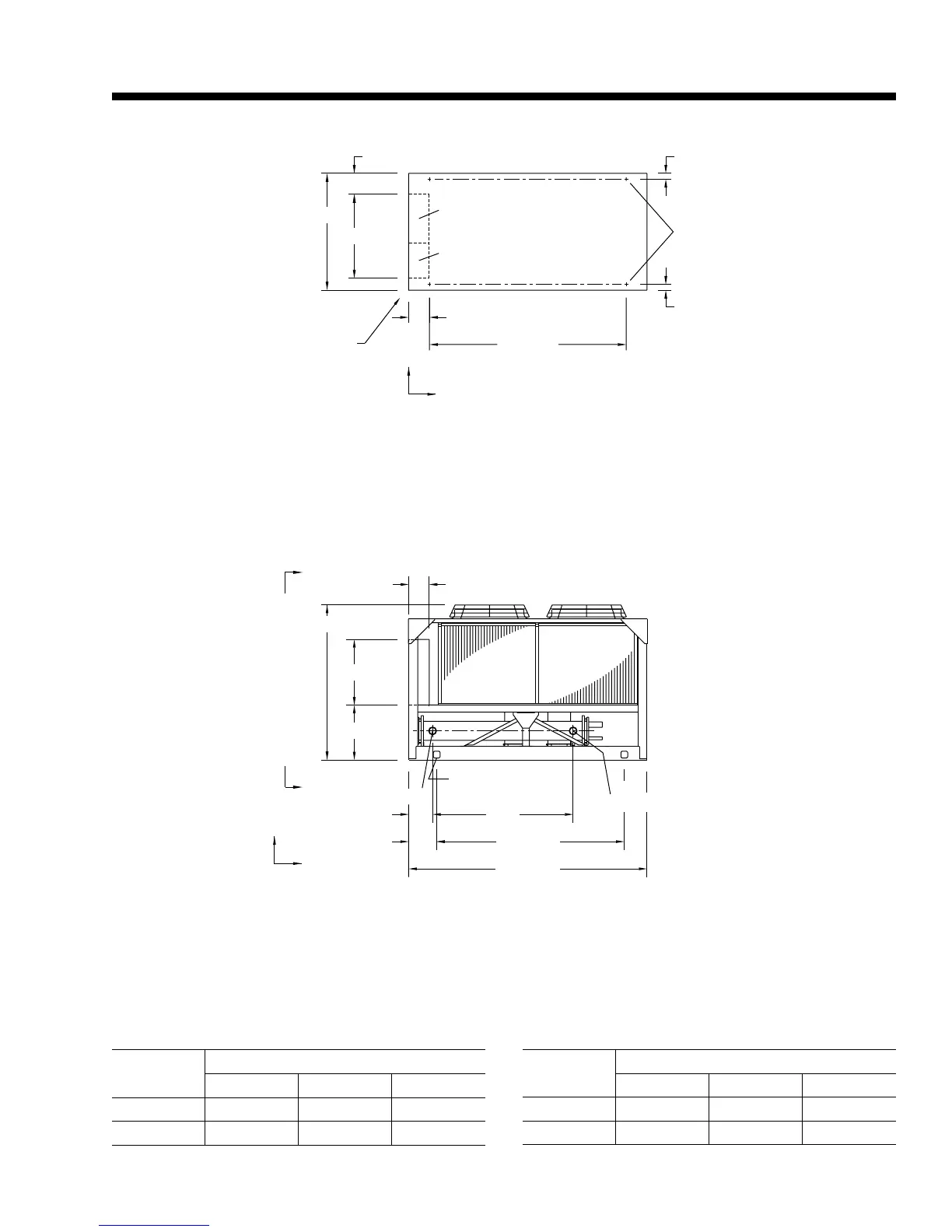

Center of Gravity (in.)
X Y Z
0014 44.8 24.1 28.3
0020 44.8 24.1 28.3
YCAL
Center of Gravity (in.)
X Y Z
0014 45.4 24.2 28.8
0020 45.4 24.2 28.8
37"
68 3/8"
1 1/2"
1 1/2"
51 1/2"
9 1/4"
10 5/16"
78 7/16"
BA
DC
9"
24 1/4"
29"
3"
10 1/2" 62"
14 11/16" 80 7/16"
105 1/8"
X
Z
C
G
SIDE VIEW
HOLES (EACH SIDE)
(2) 3" X 3" RIGGING
3"
WATER INLET
WATER OUTLET
A
A
ORIGIN
X
G
C
Y
TOP VIEW
3/4" DIA.
MOUNTING
HOLES (TYP.)
CONTROL PANEL
POWER PANEL
HFC-407c only
