York YCAL0134 User Manual

JOHNSON CONTROLS
55
FORM 150.62-EG1 (507)
LD04877
ALUMINUM
COPPER
YCAL
Center of Gravity (in.)
X Y Z
0060 58.5 40.2 39.4
0064 56.5 45.8 39.4
0070 56.6 45.4 39.4
0074 56.6 45.7 39.5
00
80 56.6 45.4 39.0
YCAL
Center of Gravity (in.)
X Y Z
0060 58.6 40.2 39.8
0064 56.7 45.7 40.0
0070 56.8 45.5 40.0
0074 56.8 45.7 40.1
00
80 56.8 45.5 39.6
C

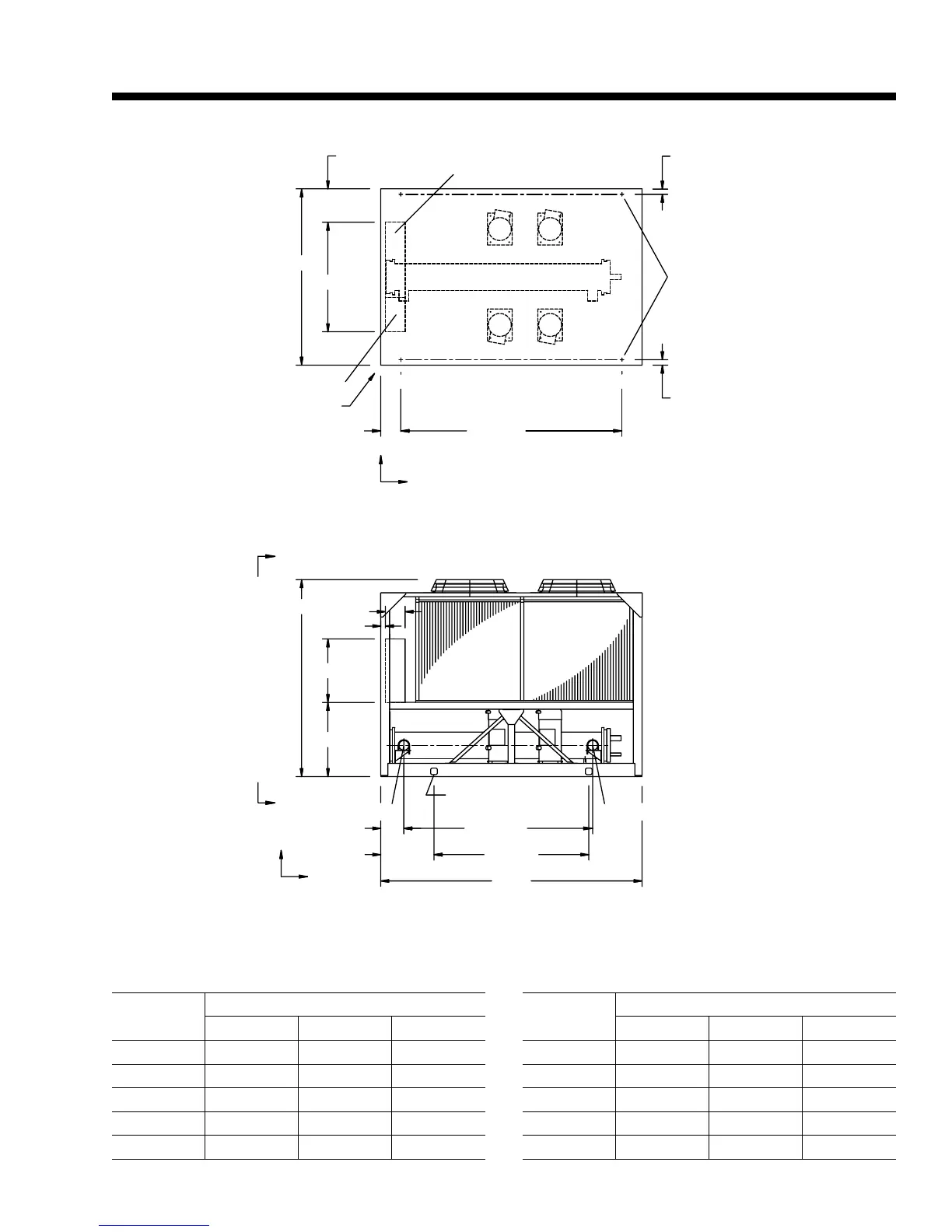

SIDE VIEW
HOLES (EACH SIDE)
(2) 3" X 3" RIGGING
G
11 1/4"
X
Z
24 1/4"
WATER OUTLET
6"
A
84 1/2"
70 1/2"
119"
WATER INLET
6"
33 13/16"
29"
89 7/8"
9"
2 1/16"
A
3/4" DIA.
80 1/2"
TOP VIEW
C
G
Y
X
50"
1 1/2"
HOLES (TYP.)
MOUNTING
15 1/4"
1 1/2"
POWER PANEL
CONTROL PANEL
ORIGIN
9 3/4"
99 1/2"
HFC-407c for YCAL0064 and YCAL0070 models only
