JOHNSON CONTROLS
FORM 150.72-EG6 (516)
26
3” INLET
3” OUTLET
LD18432
YLAA0058HE, YLAA0065HE, YLAA0081HE
NOTE:
Placement on a level surface of free of obstructions (including snow, for winter operation) or air circulation ensures rated performance, reli-
able operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable
airowpatternsandpossiblediminishedperformance.Theunitcontrolswilloptimizeoperationwithoutnuisancehigh-pressuresafetycut-outs;
however, the system designer must consider potential performance degradation. Access to the unit control center assumes the unit is no
higher than on spring isolators. Recommended minimum clearances: Side to wall – 6'; rear to wall – 6'; control panel to end wall – 4'0'';
top – no obstructions allowed; distance between adjacent units – 10'. No more than one adjacent wall may be higher than the unit.

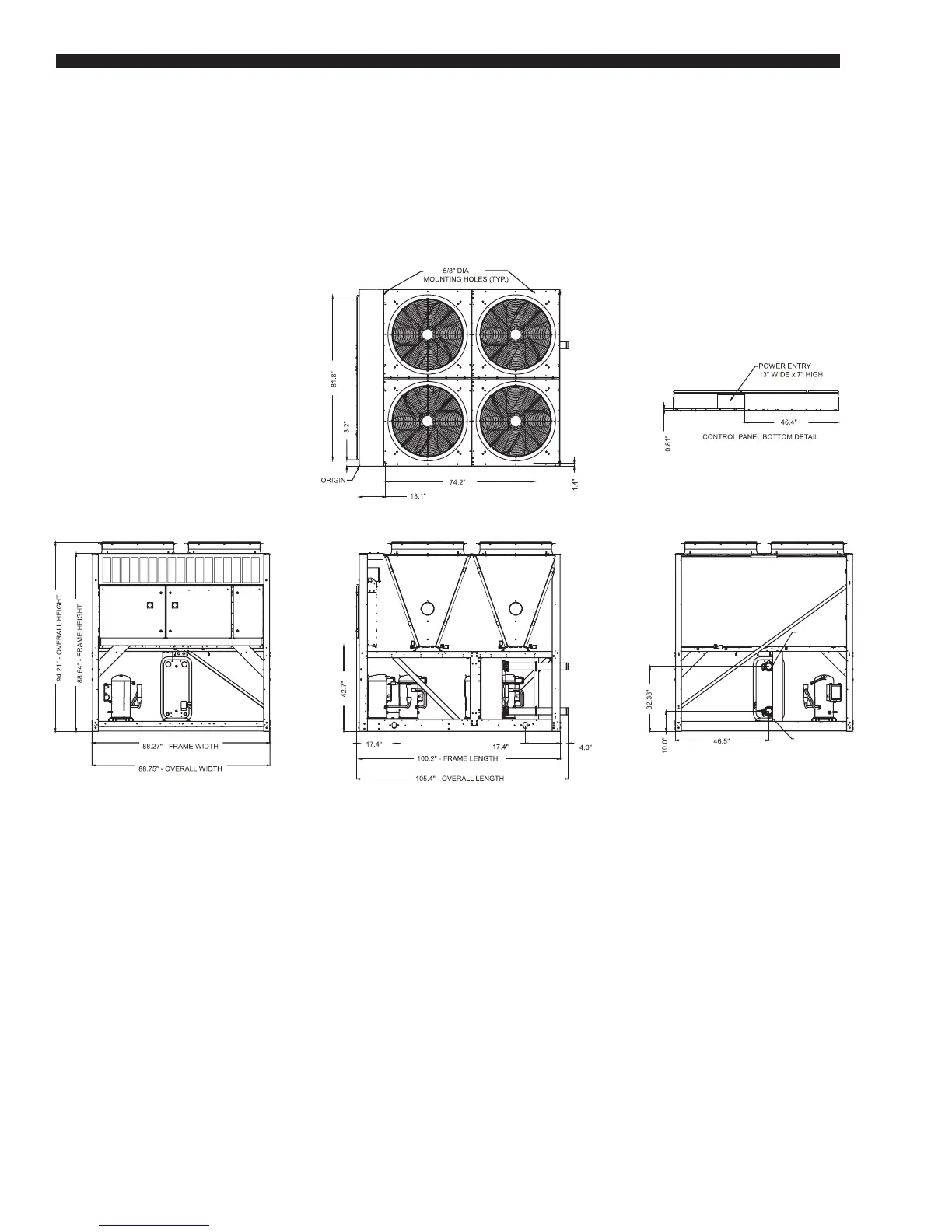

Unit Dimensions

York YLAA Specifications

General

Model	YLAA
Condenser	Air-Cooled
Efficiency	High Efficiency
Sound Pressure Level	Varies by model (typically 70-85 dB)
Dimensions	Varies by model
Weight	Varies by model
Category	Air-Cooled Scroll Chiller
Voltage	208-575V, 3-phase, 50/60 Hz
