76
JOHNSON CONTROLS
FORM 150.68-ICOM1
ISSUE DATE: 10/15/2020

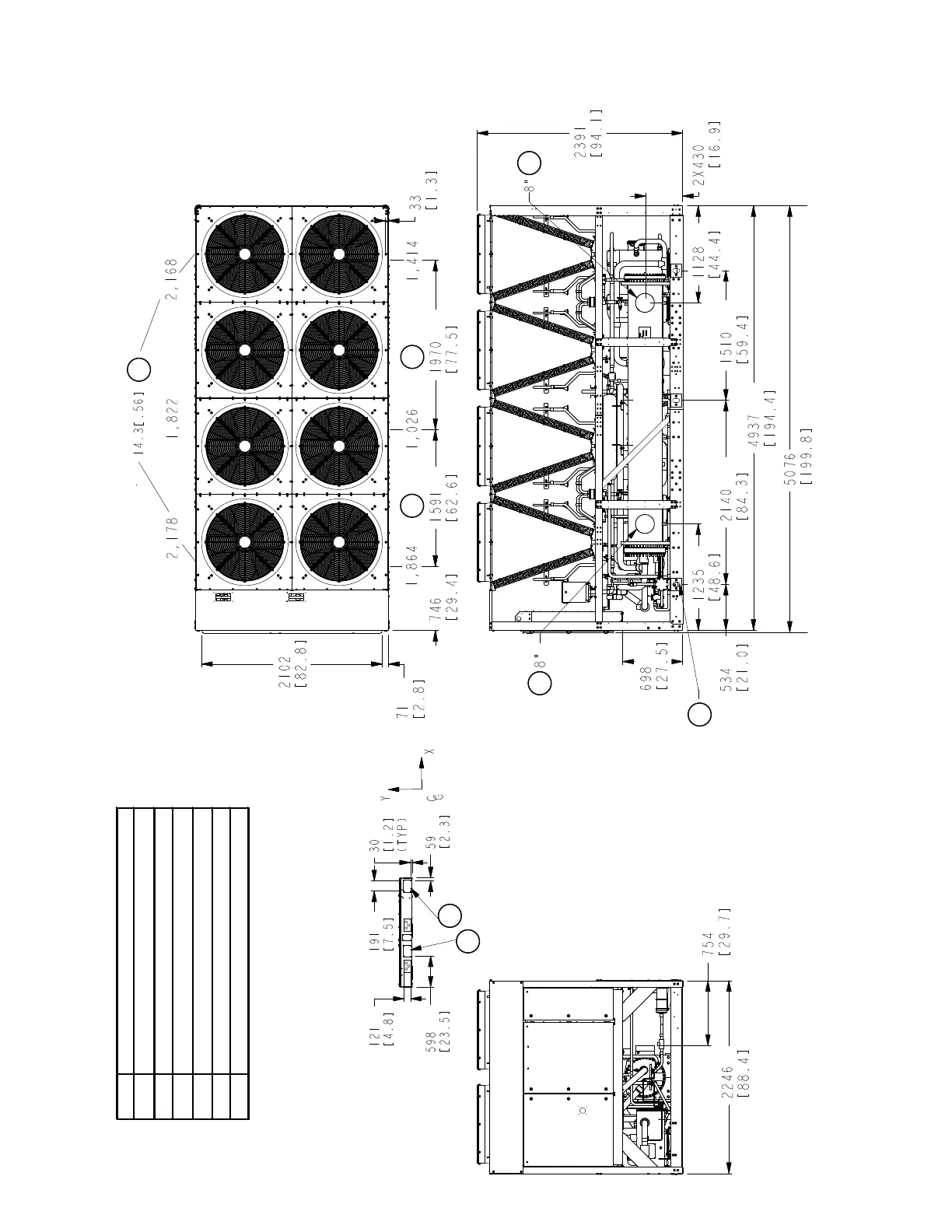

DIMENSIONS - YLPA 0115
2
3
6
1
1
5
4
7
1
Distance between anti vibration mounts
2
Power cable entry via gland plate
3
Control cable entry
4
Water inlet connection to heat exchanger
5
Water outlet connection to heat exchanger
6 Mounting holes for anti vibration mounts
7
Rigging holes
