POWER SUPPLY CONNECTION
Electrical Legends
TABLE 2 - ABBREVIATIONS OF ELECTRICAL COMPONENTS
Power Supply Connection – Single Unit

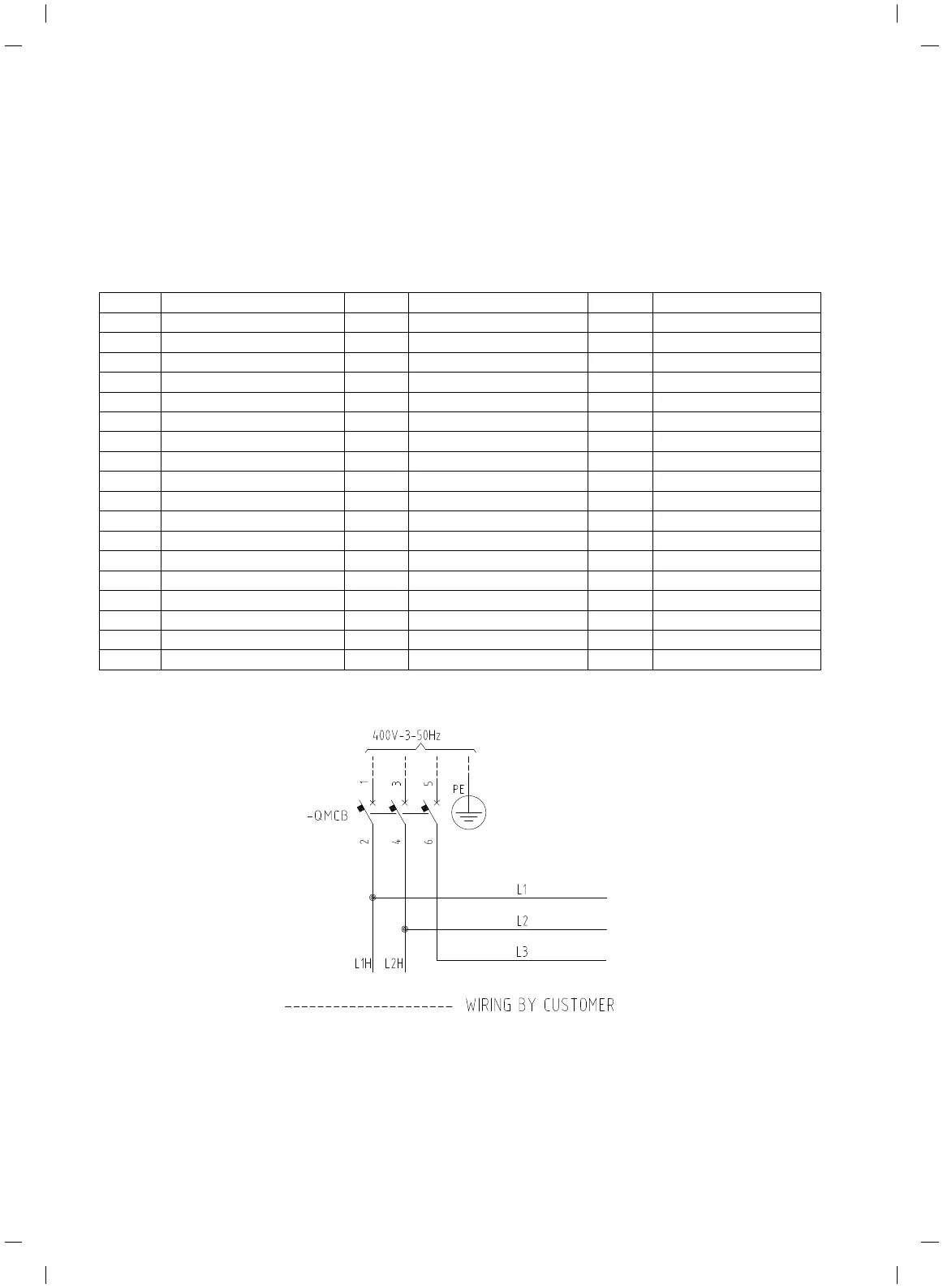

FIGURE 20 – SINGLE UNIT POWER SUPPLY CONNECTION
SECTION 4 – INSTALLATION
CODE DESCRIPTION CODE DESCRIPTION CODE DESCRIPTION
-YMEV MAIN EEV -MC COMPR MOTOR -FHP HIGH PRESS SWITCH
-YWSV WATER SOL VALVE -KWP WATER PUMP RELAY -EPH WATER PIPING HEATER
-YMSV MODE SOL VALVE -KPW POWER FAULT RELAY -EEPH PHE PIPING HEATER
-XTB TERMINAL BLOCK -KPF POWER PROTECTOR -EEH PHE HEATER
-T TRANSFORMER -KM COMPR CONTACTOR -ECH CRANK CASE HEATER
-SRE REMOTE START SWITCH -KFS FAN SPEED RELAY EXT EXTERNAL PART
-SF2 SYSTEM FLOW SWITCH -KFP FR & FHP RELAY -BSP SUCTION PRESS
-SF1 MODULE FLOW SWITCH -KFL FAN LOW SPEED CONTACTOR -BDP DISCHARGE PRESS
-SEM EMERGENCY BUTTON -KFH FAN HIGH SPEED CONTACTOR -BLMT LEAVING MODULE TEMP
-SEL EXTERNAL INTERLOCK SWITCH -KF FAN CONTROL CONTACTOR -BLST LEAVING SYSTEM TEMP
-SC/H COOLING/HEATING SWITCH -KEM EMERGENCY RELAY -BEST ENTERING SYSTEM TEMP
-RC RC ABSORBER -KCH11 INV COMPR HTR RELAY -BDT DISCHARGE TEMP
-QMCB MAIN CIRCUIT BREAKER -KAL ALARM RELAY -BAMB AMBIENT TEMP
-QCB CIRCUIT BREAKER -KAH AUX HEATER CONTACTOR -BACDT AIR COIL DEFROST TEMP
PE PROTECTIVE EARTH -H1 ALARM LAMP -BAIT ACCUMULATOR INLET TEMP
-MP PUMP MOTOR -FR OVERLOAD RELAY -AMGB MODBUS GATEWAY BOARD
-MF FAN MOTOR -FLP*2 HEATING LOW PRESS SWITCH -AMB MAIN BOARD
-MDF DRIVER FAN MOTOR -FLP*1 COOLING LOW PRESS SWITCH
