1

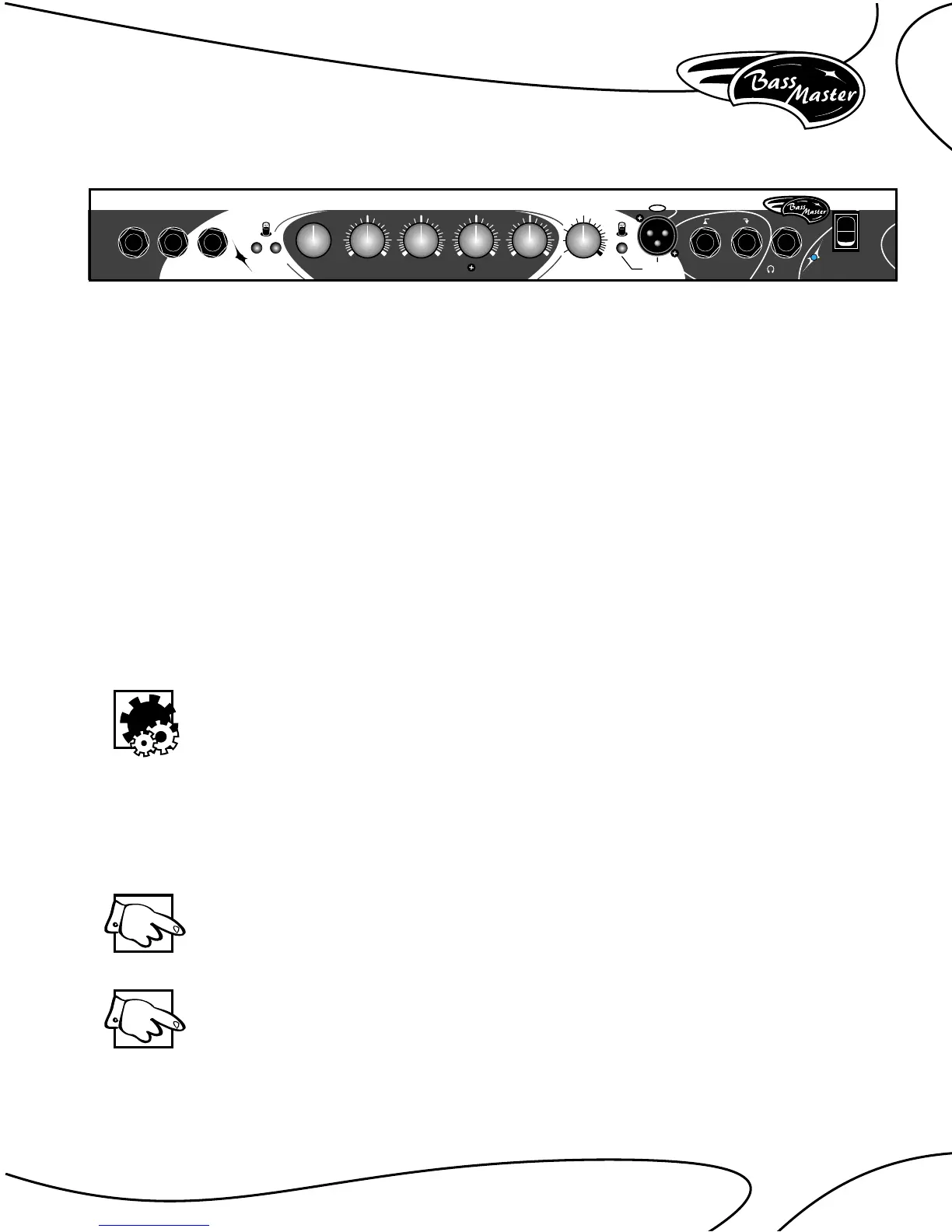

The Yorkville Bass Master xm200 and xm200T have been designed with the needs of profes-
sional bass guitar players in mind. We believe you will find your
Yorkville Bass Master xm200 or
xm200T to be dependable and versatile for years to come.
Tuner Out Jack
This is an instrument-level output ideal for connecting an electronic guitar/bass tuner.
0dB and -6dB Inputs
These are the instrument inputs. Use the 0dB input for bass guitars with normal, passive electron-
ics, like single-coil and humbucking pickups. Use the -6dB for hot or active pickups. These inputs
are not intended for connecting more than one instrument at a time.
Mute Button
The Mute button cuts off all audible signals, except for the output to the Tuner Out jack. This
enables you to tune your bass without having to adjust any settings on either the bass guitar or
xm200 (and the audience will not be able to hear you tuning)
.
Limiter
When engaged, the xm200’s Limiter prevents audible power amplifier clipping (distortion). Unlike input
clip limiters, it does not affect the preamp stage at all. Instead, this Limiter ensures that output-stage clip
-
ping cannot endanger the speaker or tweeter. In a unique and comprehensive manner, it compares the
output to the available AC power (in technical terms, it reads the DC rail voltage) then, just before output
stage clipping occurs, the Limiter reduces signal levels sufficiently to prevent power amp distortion. This
permits the xm200 to remain cleaner at higher output levels, even when the AC line sags below normal.
Tip: With the Limiter engaged, the only way you can distort your xm200 is by overdriving the pre-
amp, which is quite acceptable for certain playing styles. This will not harm the drivers as long as the
Limiter remains engaged.
Volume
Set the Volume control for the level of sound desired. If unwanted distortion occurs, reduce the
Volume setting and/or the tone control settings (especially bass).
Tone Controls
Each tone control permits a wide range of adjustment. The four overlapping controls cover the
entire audio band. The
Bass adjusts the level of the lowest note frequencies, Low Mid the next
range up from that, Hi Mid covers the highest notes and middle harmonics and
Treble regulates
the upper harmonic range. The center setting on these tone controls is approximately neutral.
Tip: when starting out, it may be good ideas to center all tone controls, and then while you play,
adjust them for the desired sound.
Scoop
The Scoop control lets you blend in a unique sound alternative to provide a greatly expanded tonal
range. A setting of 0
provides no Scoop and a setting of 10 provides the maximum effect.
Tip: You may find that for best results with Scoop at higher settings, the tone controls should be at
settings closer to the center point.
Effects Send / Return Jacks
V
OLUME
LOW MIDBASS HI MID
TREBLE
LINE /D. I.
OUTPUT
POWER
PHONES /
LINE OUT
BAL
SEND RETURN
EFFECTS LOOP
ON
-
6 dB0 dB
INPUTTUNER OUT
MUTE
D.I.
LINE
OUT
IN
0
4 6
1
3 7
9
2 8
5
10
OFF MAX
SCOOP
15 15
+
-
15 15
+
-
15 15
+
-
15 15
+
-
LIMITER
xm
200
