7.
8.
A
B
A. Supplied seal
B. Supplied bracket
9.

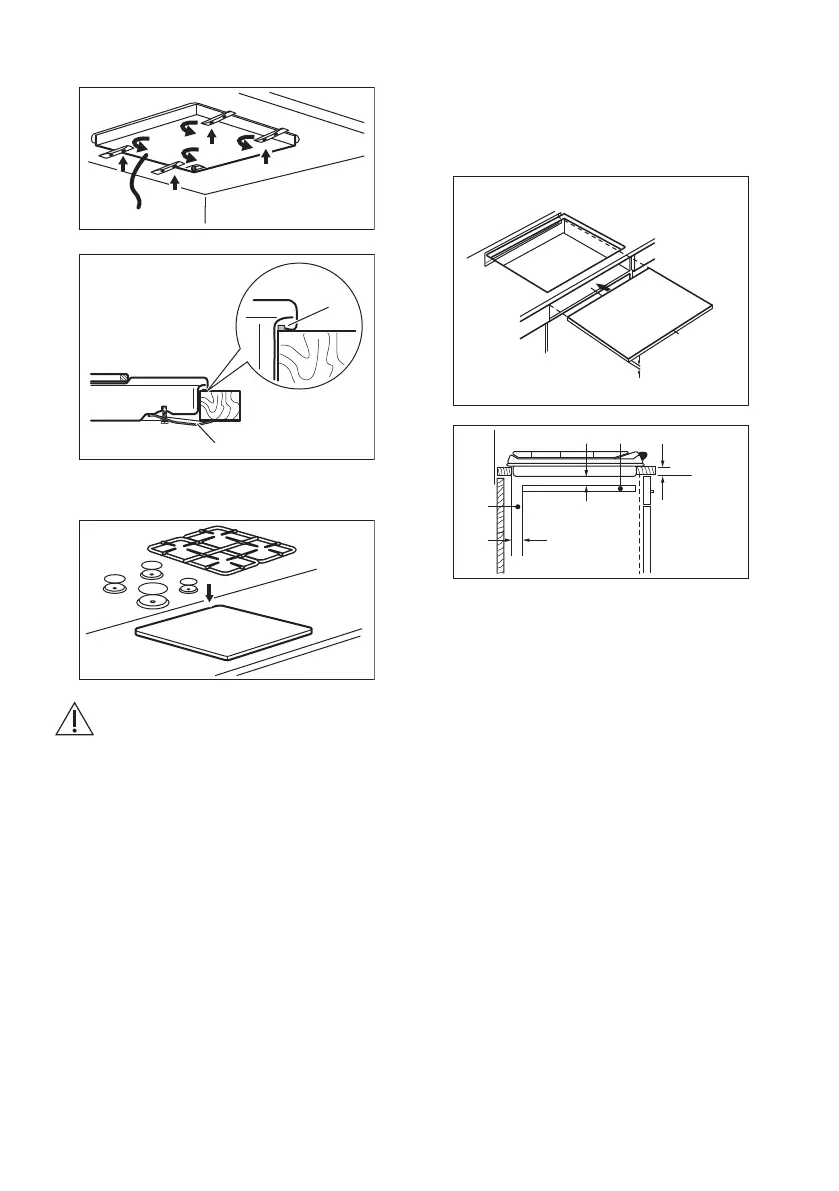

CAUTION! Install the appliance only
on a worktop with flat surface.
POSSIBILITIES FOR INSERTION
The panel installed below the hob must be easy to
remove and let an easy access in case a technical
assistance intervention is necessary.
Kitchen unit with door or drawer
min 6 mm
min 30 mm
60 mm
min 5 mm
(max 150 mm)
A
B
A. Removable panel
B. Space for connections
Kitchen unit with oven
The electrical connection of the hob and the oven
must be installed separately for safety reasons and
to let easy remove oven from the unit.
10

Zanussi ZGNN640W Specifications

General

Hob type	Gas
Product color	White
Hob width size	60 cm
Top surface type	-
Appliance placement	Built-in
Cooking zone 2 type	Large
Cooking zone 3 type	Regular
Cooking zone 4 type	Simmer
Cooking zone 1 power	2000 W
Cooking zone 2 power	3000 W
Cooking zone 4 power	1000 W
Cooking zone 1 position	Left rear
Cooking zone 2 position	Left front
Cooking zone 3 position	Right rear
Cooking zone 4 position	Right front
Simmer cooking zone shape	Round
Large cooking zone diameter	100 mm
Number of gas cooking zones	4 zone(s)
Simmer cooking zone diameter	54 mm
Regular cooking zone diameter	70 mm
Number of electric cooking zones	0 zone(s)
Control type	Rotary
Built-in display	No
Control position	Top right
Electronic ignition	Yes
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Connected load (gas)	8000 W
Connected load (electric)	- W

Weight and Dimensions

Depth	510 mm
Width	594 mm
Cord length	1.1 m
Installation compartment depth	470 mm
Installation compartment width	550 mm
Installation compartment height	43 mm
