F6 PTHERM Input for motor temperature sensor.
F7 CM Common of FW / BW / SR / PB / SEAT / INCHING FW
/ INCHING BW / EXCLUSIVE HYDRO / ENABLE
microswitches.
F8 NLC Negative of main contactor coil.
F9 NBRAKE Output for driving a brake or an hydraulic steering
contactor coil; it drives the load to -Batt maximum
current: 3 A.
F10 SR/HB Speed reduction (handbrake) input. Active low (switch
opened). See also OPTION chapter.
F11 GND -Batt.
F12 NTHERM -Batt.

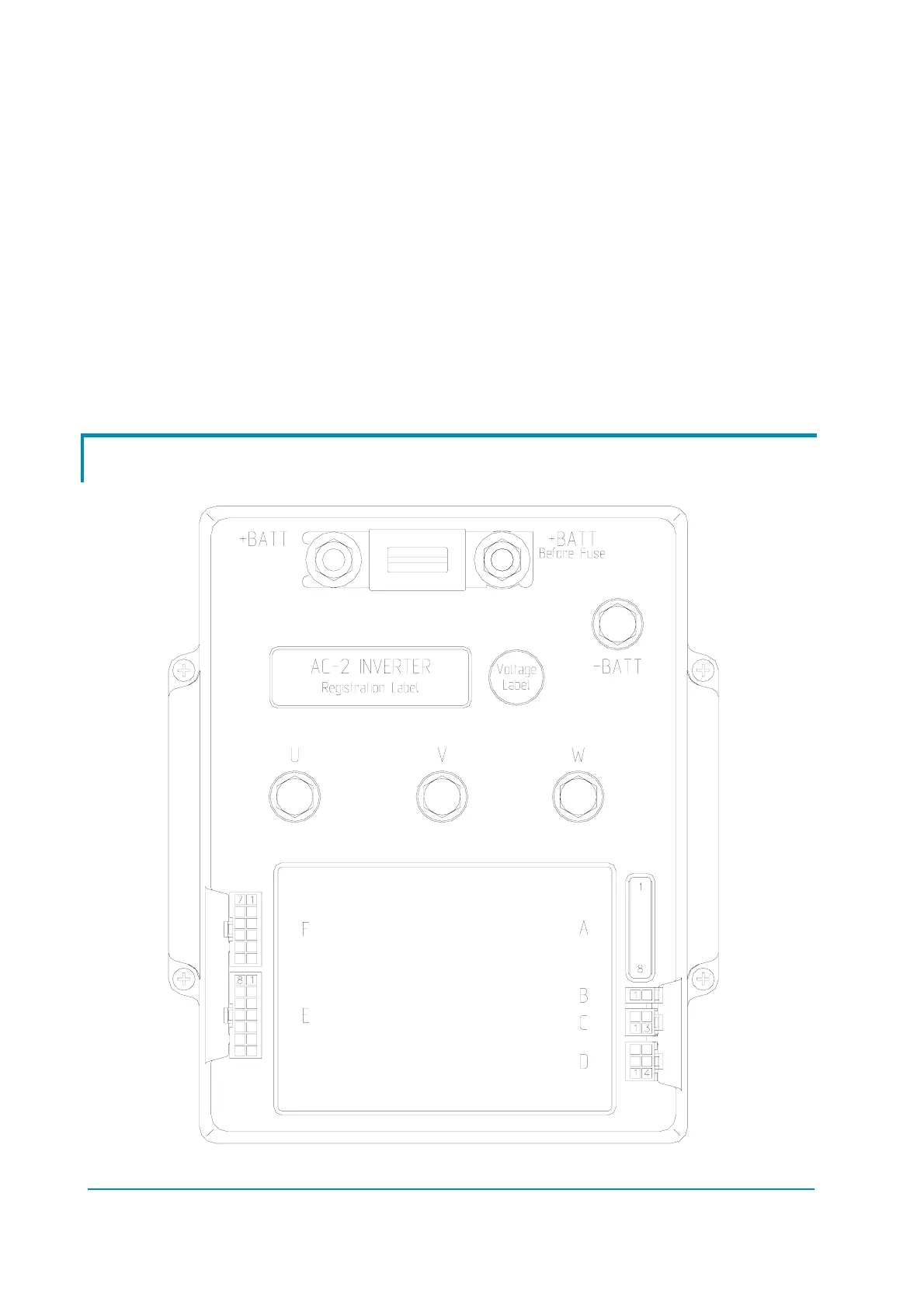

4.5 Description of connectors - Pump configuration
Page - 16/64 ADEZP0AE - AC-2 INVERTER - User Manual
