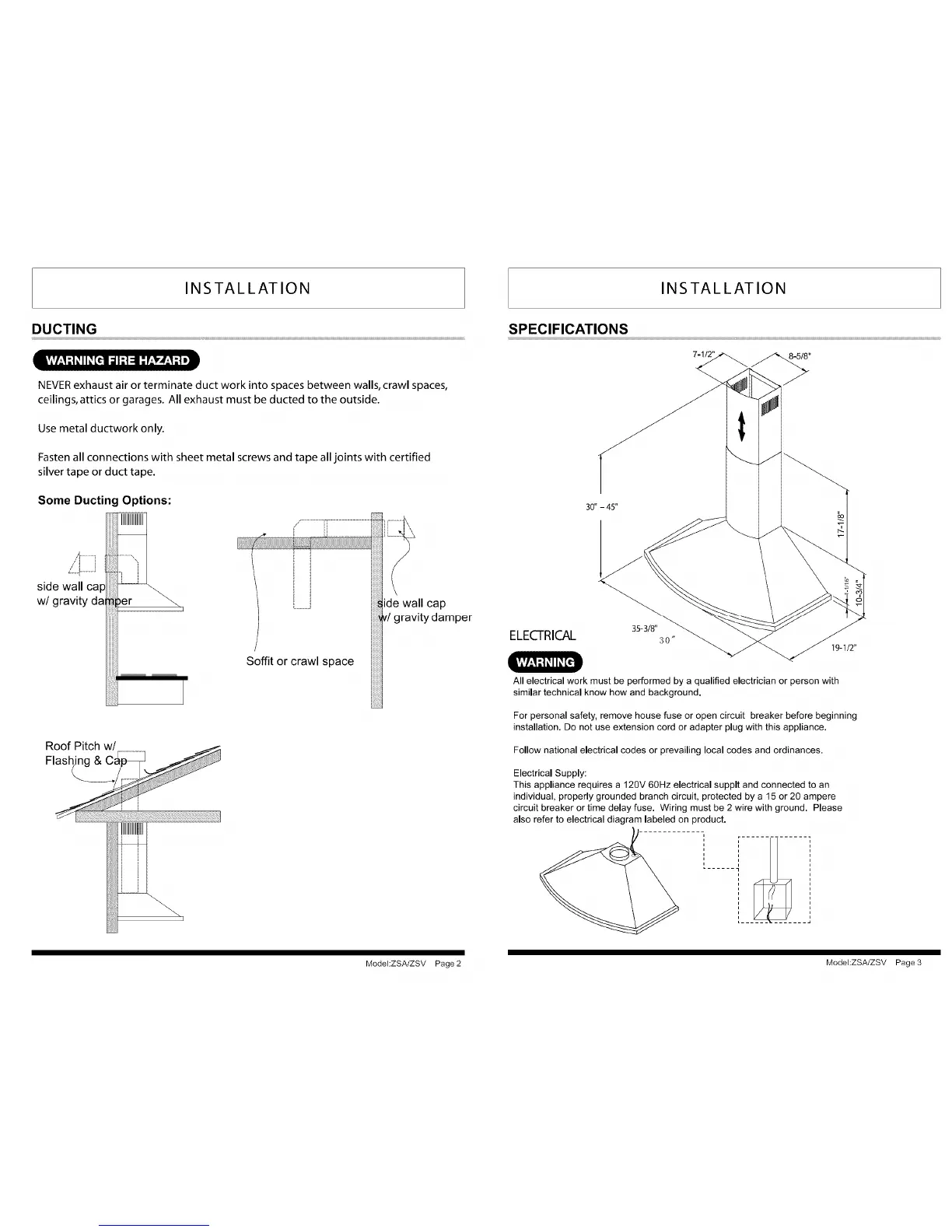

INSTALLATION
DUCTING
INSTALLATION
NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces,
ceilings, attics or garages. All exhaust must be ducted to the outside.
Use metal ductwork only.
Fasten all connections with sheet metal screws and tape all joints with certified
silver tape or duct tape.
Some Ducting Options:
SPECIFICATIONS
side wall ca[
w/gravity ds
Roof Pitch w/
35-3/8"
ELECTRICAL 3o"
t9-1/2"
All electrical work must be performed by a qualified electrician or person with
similar technical know how and background.
For personal safety, remove house fuse or open circuit breaker before beginning
installation. Do not use extension cord or adapter plug with this appliance.
Follow national electrical codes or prevailing local codes and ordinances.
Electrical Supply:
This appliance requires a 120V 60Hz electrical supplt and connected to an
individual, properly grounded branch circuit, )rotected by a 15 or 20 ampere
circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please
also refer to electrical diagram labeled on product.
ModeI:ZSA/ZSV Page 2 ModeI:ZSA/ZSV Page3
To Next Page
