HOME AUTOMATION
Z02 - SWING GATE
PG6
8
7
6
12
13
11
12
13
11

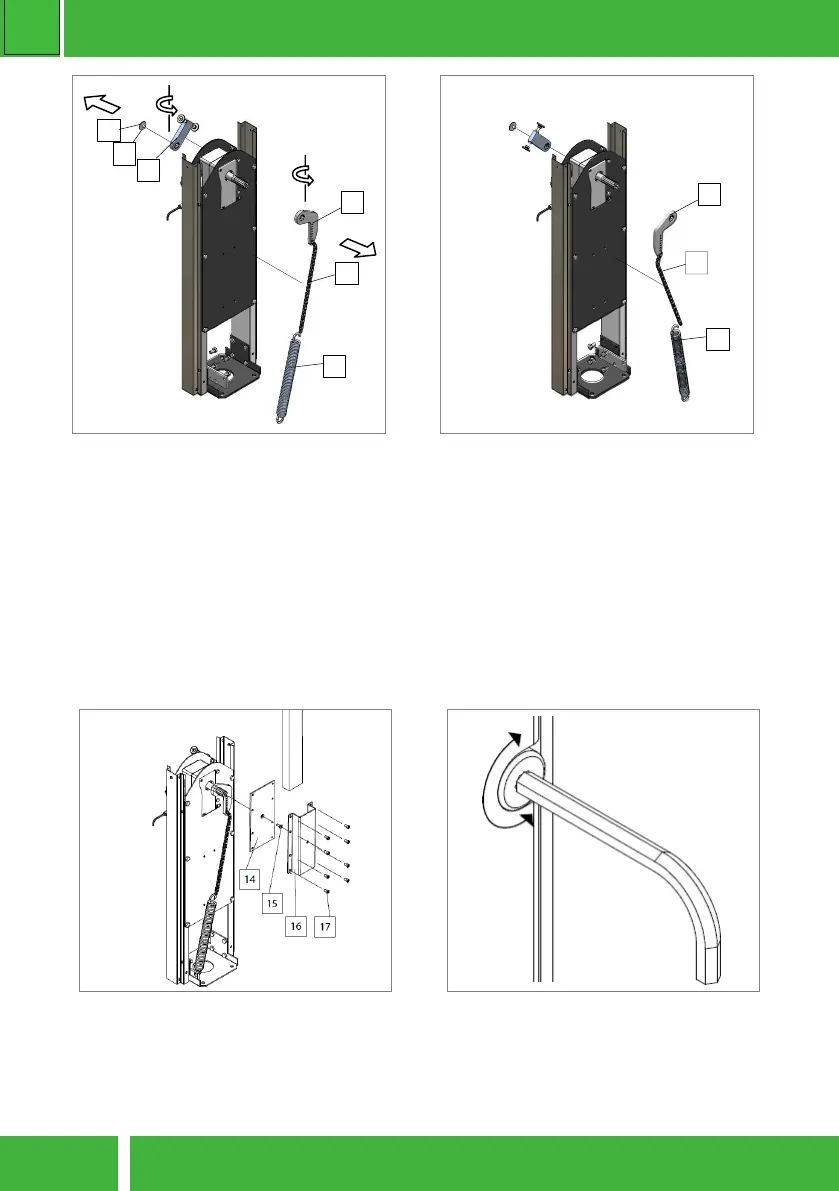

05. Unscrew the screw [6] then remove the
the plate [7] with lever [8]. Take out the
spring [11] and remove it from the chain
[12] and lever [13].
06. To have oposit opening direcon rotate
the levers [8] and [13] then screw back pre-
viously removed bolts.
01. To assemble the boom, place the boom
on the barrier xing plate and alignthe ho-
les on each piece. Then to place the boom
fastening metal plate and use the screws to
fasten the parts together.
02. Unlock the barrier by key and check the
right boom balanc.
SPRING ADJUSTMANT
To adjust the springs, follow the next steps. By giving tension to the springs causing the boom
to rise up.
To Next Page
