9
Installation instructions & user manual
T210023 v1.02 NOV 2018 - ZIP AP430S-AP4100S
Technical support
Tel: 0345 6 005 005 email: service@zipindustries .co.uk www.zipwater.co.uk
Components supplied with the unit for site fitting
Installation
• The Aquapoint shall be installed as close as possible to the outlets.
• When installing the Aquapoint in a room with a bathtub or shower, take into account the
requirements dened in IEC Standard 60364-7-701 (VDE 0100, Part 701).
• The Aquapoint has to be tted to the wall using appropriate wall screws with a minimum
diameter of 8mm.
• A wall with a poor load-bearing capacity must be properly reinforced where the Aquapoint
will be installed.
• The AP4 model may only be mounted vertically.
• To facilitate future service interventions, you are advised to install the heater in accordance
with the installation measurements (see Fig. 3 and Fig. 7).
AQ105 kit is supplied with 30 to 50 litre models.
AQ108 kit is supplied with 80 to 100 litre models.
Both kits include:
• Cold inlet assembly comprising pressure reducing valve with integral line strainer and
expansion relief valve with check valve, expansion vessel take off and balanced cold
water take off.
• Expansion vessel and wall xing bracket.
• Wall locating bracket.
• Tundish.

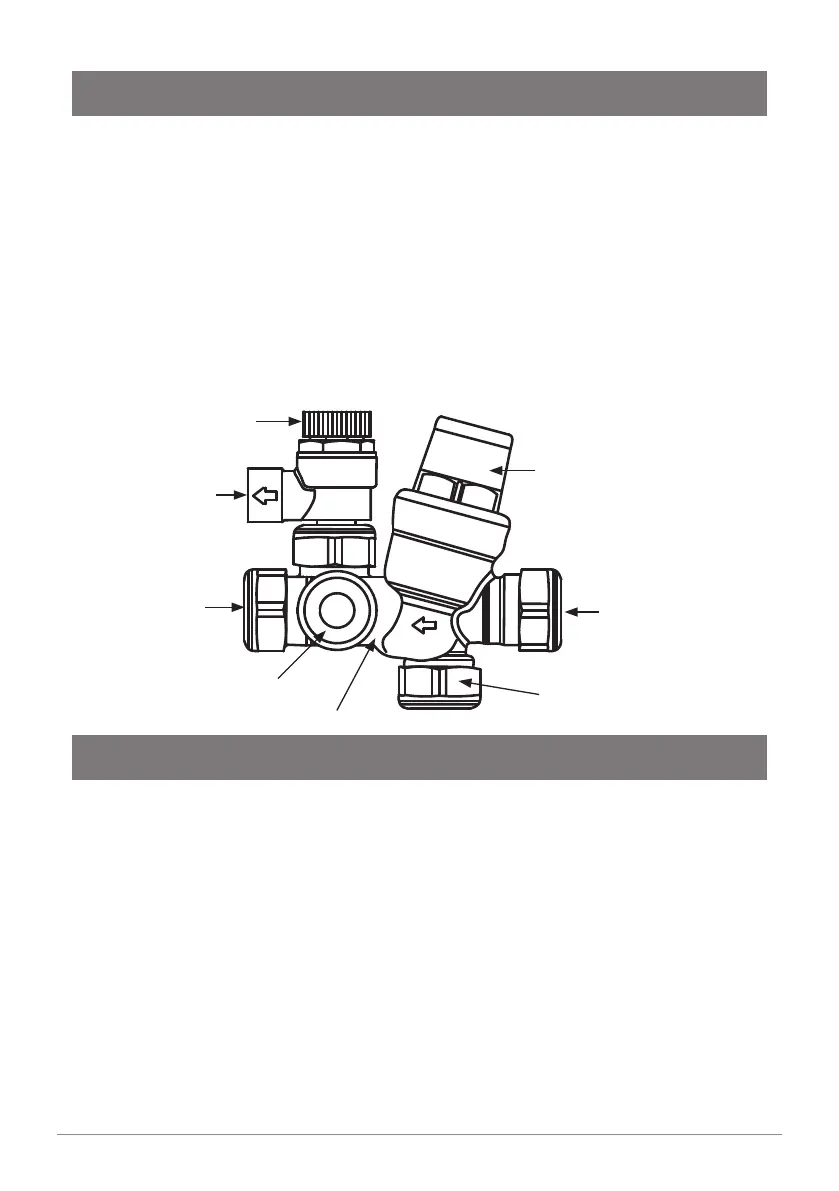

Cold inlet set
Cold supply
to cylinder
Internal check valve
Expansion vessel take off
Discharge to
tundish
Expansion relief valve
Balanced cold take off
Cold mains in
Pressure reducing valve
(inc. line strainer)
Fig. 2
