Zotac H67ITX series User Manual

7

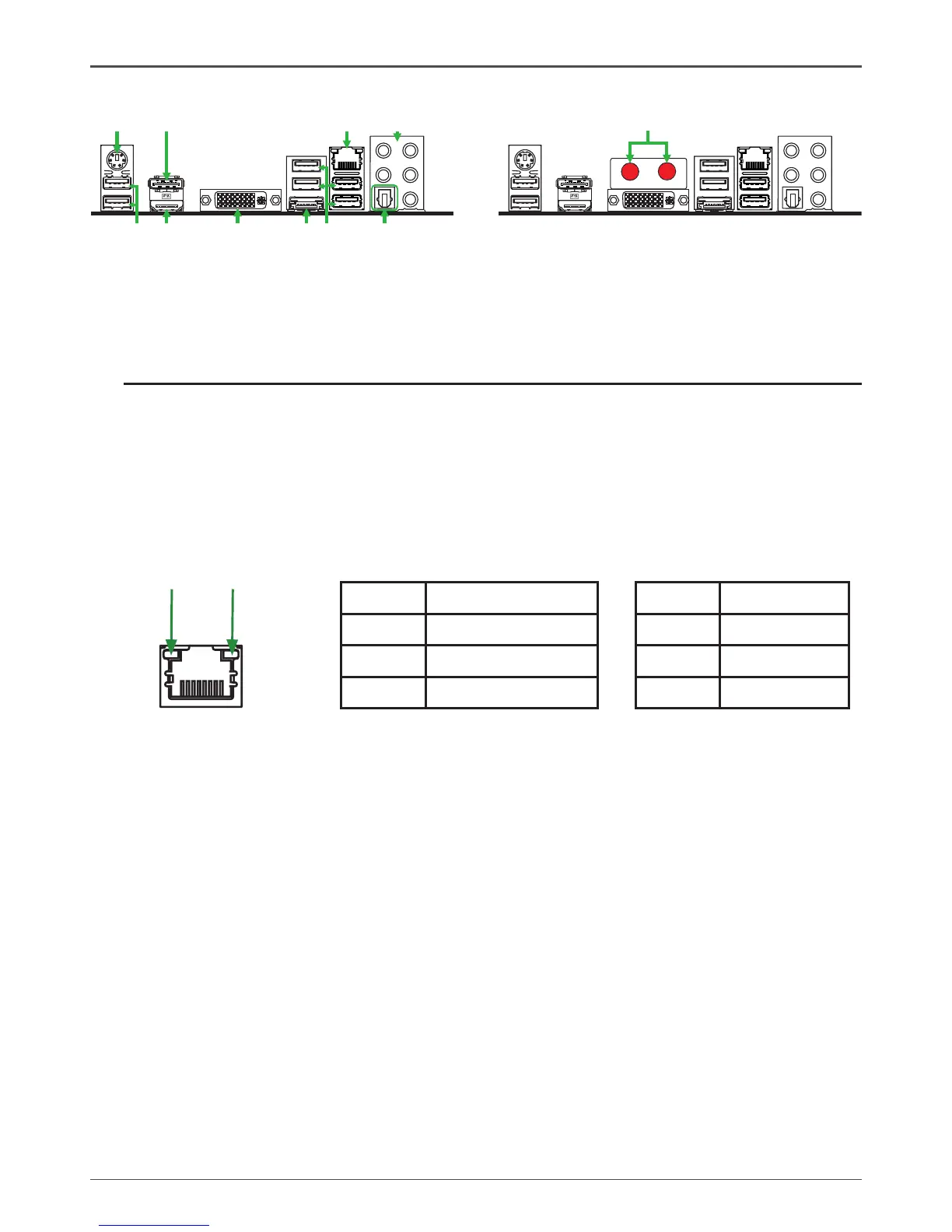

Rear panel
1. USB 3.0 Ports
3. DVI Port
2. HDMI Port
4. eSATA Port
1
2
3
8
4
6
9
7
5
10
Figure 2. Backpanel connectors
9. DisplayPort
10. PS2 Keyboard/Mouse Port
(Refer to page 21 to set PS2 Keyboard/Mouse Swap)
11
5. USB 2.0 Ports 6. Optical SPDIF Output
Activity LED
Status Descritption
Off No link
Orange Linked
Blinking Data activity
8. LAN port LED indicators
Speed LED
Status Description
Off Speed: 10 Mbps
Green Speed: 100 Mbps
Orange Speed: 1000 Mbps
Speed LED Activity LED
7. Port 2-Channel 4-Channel 6-Channel 8-Channel
Blue Line-In Line-In Line-In Side Speaker Out
Green Line-Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Mic In Mic In
Black -- -- Center/Subwoofer Center/Subwoofer
Orange -- Rear Speaker Out Rear Speaker Out Rear Speaker Out
