Zte MC801A User Manual

4

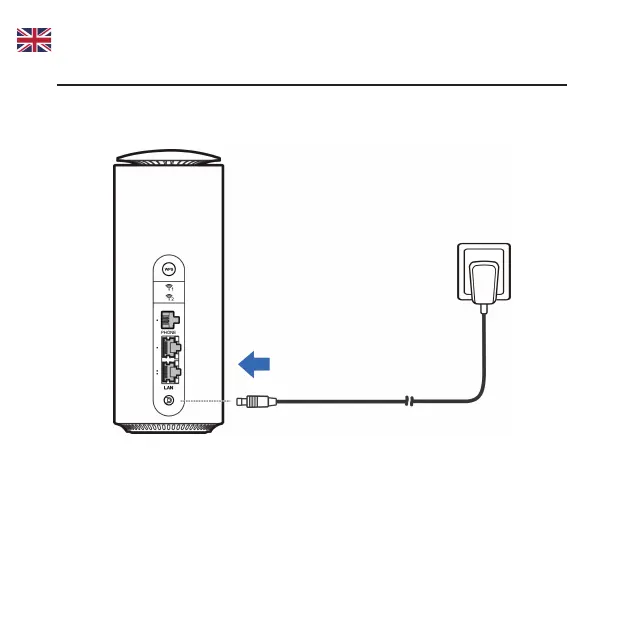

3. Power on Your Device
Connect the power adapter to your device and then your device will be
poweredonandconnecttotheInternetautomatically.

Zte MC801A Specifications

General

Device type	Cellular network router
Product color	White
LED indicators	Network, Power, Signal strength, Wi-Fi
Suitable for indoor use	Yes
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi frequency	5 GHz
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
4G standard	LTE-TDD & LTE-FDD
Data network	5G, LTE
SIM card type	NanoSIM
4G bands supported	600, 700, 800, 850, 900, 1500, 1700, 1800, 1900, 2000, 2100, 2300, 2400, 2500, 2600, 3400, 3500, 3600, 3700, 3800 MHz
Number of SIM cards	1
Ethernet LAN (RJ-45) ports	2
Processor model	SDX55
Antenna type	Internal & external
Power source type	AC
Operating temperature (T-T)	-20 - 55 °C

Weight and Dimensions

Depth	70 mm
Width	124 mm
Height	182 mm
