ZWO ASI585MC Pro User Manual

13

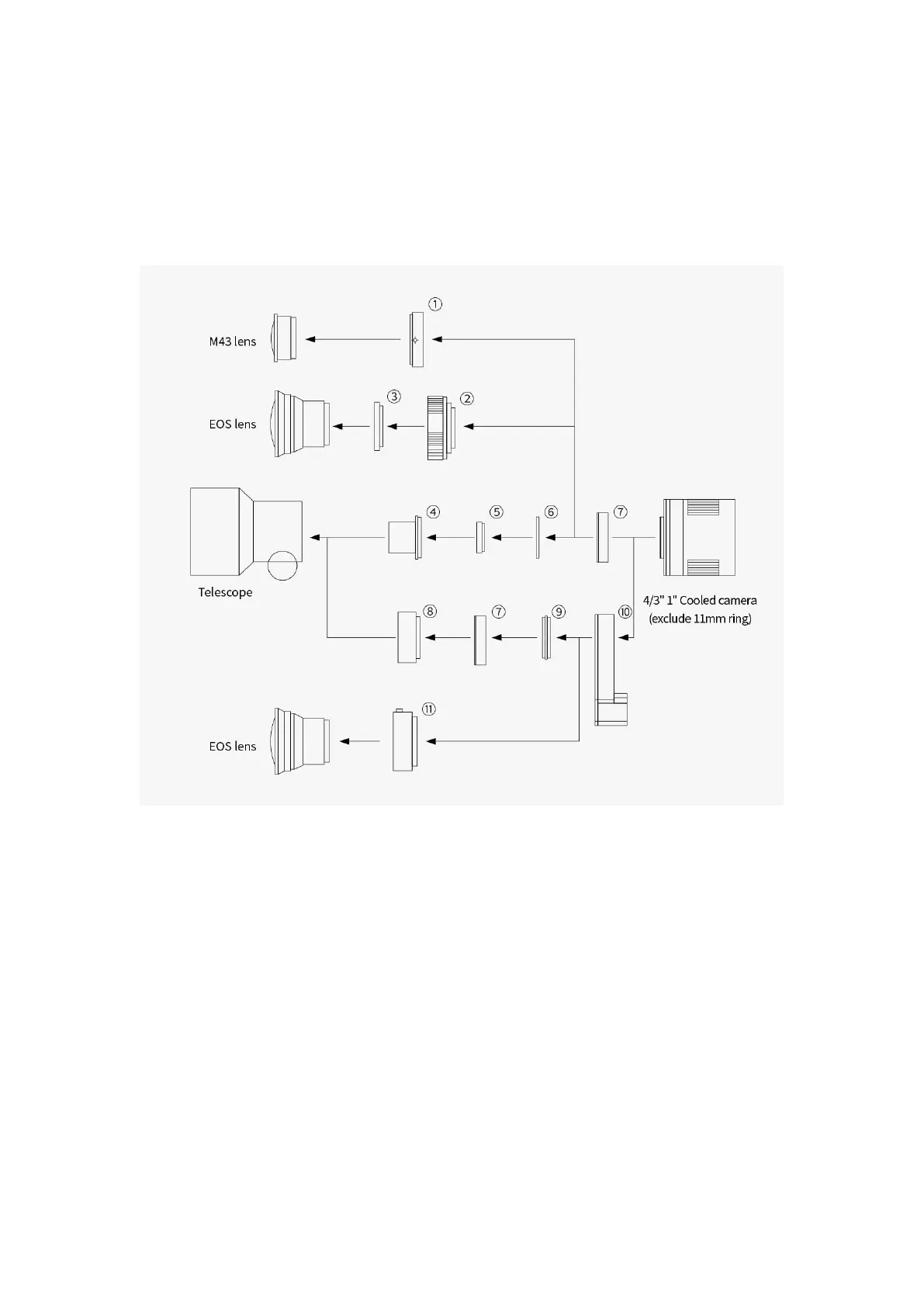

6 Connection Methods
6.1 Connecting to Nikon/Canon Lens
1. M43-T2 adapter (optional)
2. EOS-T2 adapter (optional)
3. 2” filter (optional)
4. 1.25” T-mount
5. 1.25” filter (optional)
6. M42-1.25” adapter
7. 11mm T2 extender
8. 16.5mm M42-M48 extender
9. T2-T2 adapter
10. EFW mini
11. EOS lens adapter for EFW

ZWO ASI585MC Pro Specifications

General

Sensor	Sony-IMX585
Sensor format	Type 1/1.2
Pixel size	2.9μm
Sensor size	11.136mm x 6.264mm
Shutter	Rolling shutter
Exp range	32μs~2000s
Protective window	D32-2 AR
Camera diagonal	φ78 x 73.5
Back focus distance	17.5mm (11mm ring included) / 6.5mm
Diagonal	12.84mm
Resolution	8.29MP (3840 x 2160)
Max frame rate	47fps
Read noise	0.9-12e (2.4e@15db gain)
QE peak	91%
Full well capacity	47ke
ADC	12bit
DDR3 buffer	512MB
USB port	USB 3.0 Type-B
Connection adapter	M42 x 0.75 adapter
Cooling	2-stage TEC cooling
Delta-T	30°~35°@ environmental temperature 30°C
Power consumption (Cooling on)	12V, Max current 3A
Supported OS	Windows, Linux & Mac OSX

Weight and Dimensions

Net weight	0.47kg
