ZWO ASI585MC Pro User Manual

1

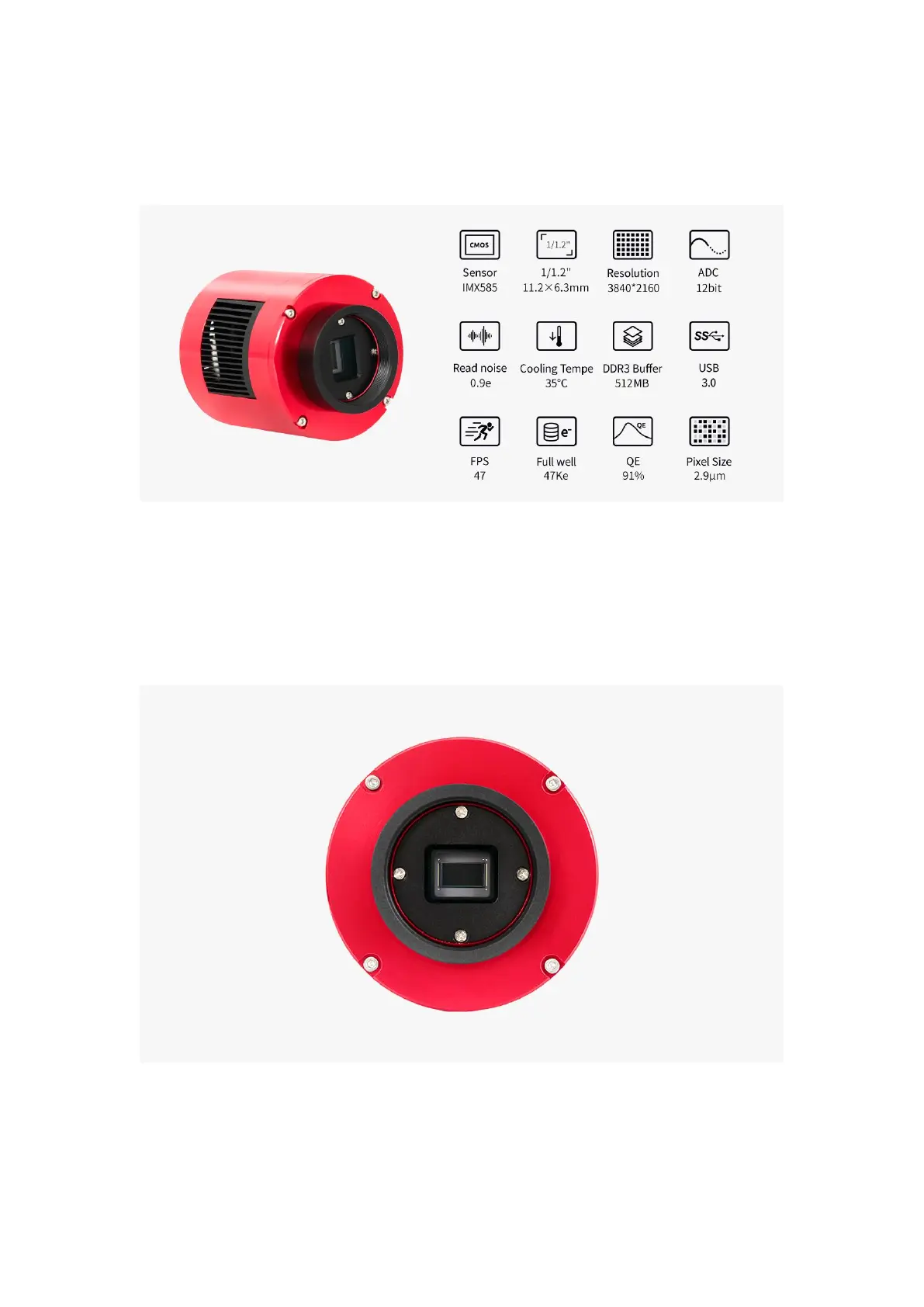

1 Product Introduction
New DSO Camera with High Sensitivity
ASI585MC Pro is a new ZWO deep sky camera based on the 4k SONY CMOS sensor with a 1/1.2" format and
2.9μm pixels. It has a super high sensitivity and large resolution of 3840*2160 (8.29MP in total). It also features
high transmission speeds - In high speed mode, the fast frame rate can reach 47fps at full resolution! Being an
entry-level DSO camera, it offers great advantages of high cost-effectiveness.
DSO & Planetary Imaging
The STARVIS 2 technology brings ASI585MC Pro more advanced imaging performance compared to other cooled
cameras. Its high frame rate makes it not only suitable for DSO photography but also solar/lunar/planetary
photography.

ZWO ASI585MC Pro Specifications

General

Sensor	Sony-IMX585
Sensor format	Type 1/1.2
Pixel size	2.9μm
Sensor size	11.136mm x 6.264mm
Shutter	Rolling shutter
Exp range	32μs~2000s
Protective window	D32-2 AR
Camera diagonal	φ78 x 73.5
Back focus distance	17.5mm (11mm ring included) / 6.5mm
Diagonal	12.84mm
Resolution	8.29MP (3840 x 2160)
Max frame rate	47fps
Read noise	0.9-12e (2.4e@15db gain)
QE peak	91%
Full well capacity	47ke
ADC	12bit
DDR3 buffer	512MB
USB port	USB 3.0 Type-B
Connection adapter	M42 x 0.75 adapter
Cooling	2-stage TEC cooling
Delta-T	30°~35°@ environmental temperature 30°C
Power consumption (Cooling on)	12V, Max current 3A
Supported OS	Windows, Linux & Mac OSX

Weight and Dimensions

Net weight	0.47kg
