2600T Series Pressure transmitters | OI/266/HART-EN Rev. M 21
5 Mounting
5.6.1 B6 and B7 Barrel housing bracket details

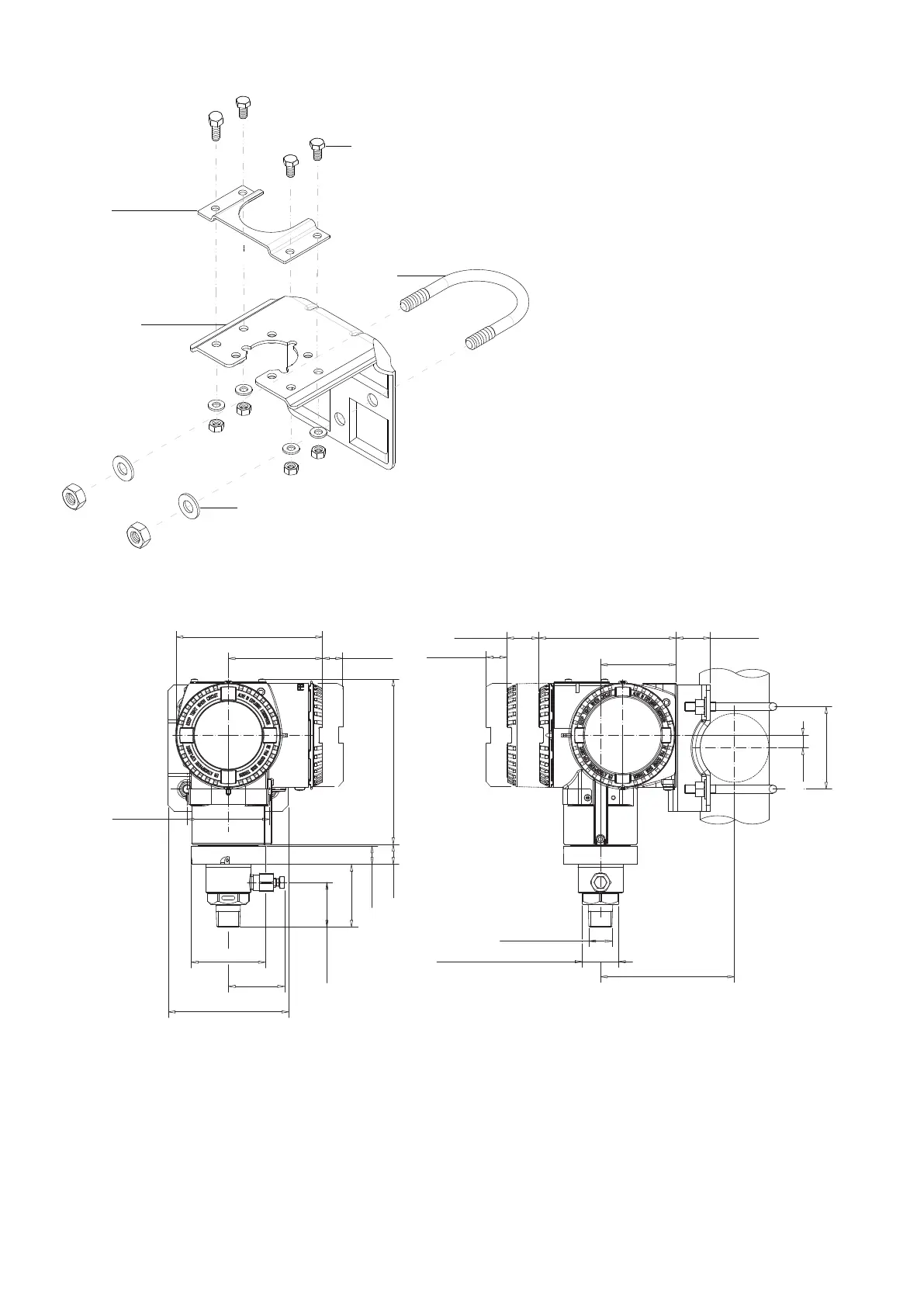

Figure 21: Pipe and wall mounting bracket kits for P style transmitter with Barrel housing
66 (2.60)
1/2 - 14 NPT
122 (4.80)29 (1.14)
18 (0.71)
117 (4.60)
30 (1.19)
72 (2.83)
11 (0.43)
128 (5.04)
85 (3.35)
18 (0.71)
145 (5.71)
54 (2.13)
Ø65 (2.56)
16 (0.63)
18 (0.71)
72 (2.83)
49 (1.93)
105 (4.13)
32 (1.26) width across
ats of exagon
Figure 22: Model 266H or 266N Hi overload resistant P-Style transmitter with DIN housing installed on a 2”pipe with optional bracket
(B7 Stainless Steel 316L)
1 – U-bolt
2 – U-bolt fixing washers and nuts
3 – Transmitter fixing bolts
4 – B6 or B7 bracket
5 – Fitting adapter (supplied with 266HSH)
1
2
3
4
5
