2600T Series Pressure transmitters | OI/266/HART-EN Rev. M 41
8 Operation
8.13.2 Easy Set-up - Advanced HART and Safety HART versions

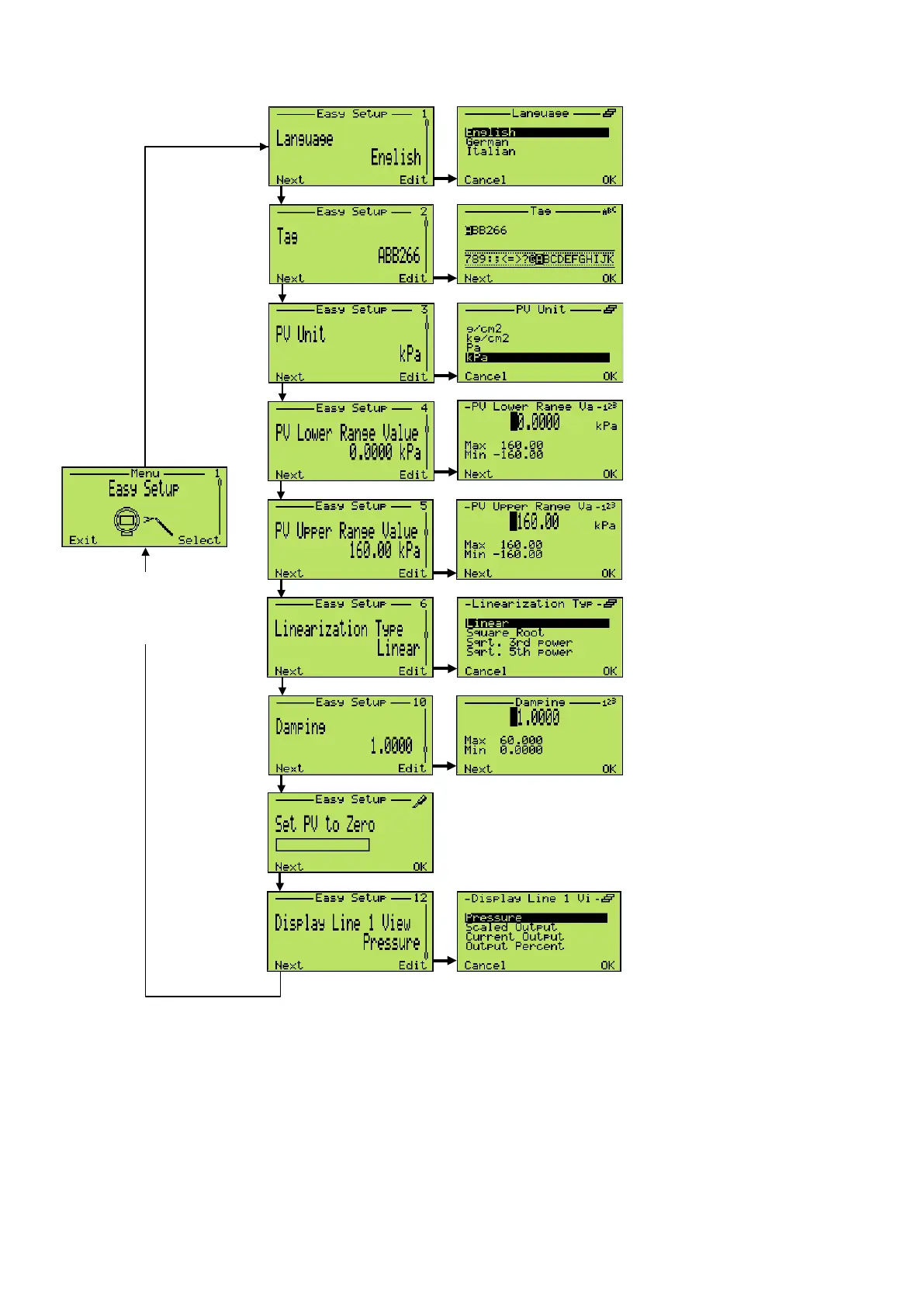

Press key (4) and select the language. After
entering the settings, press key (1) to move to
the next menu item.
Once in the alphabetic menu use Next (1) key
to position the cursor on the character that
you want to change. Scroll the character list
with (2) + (3), once on the selected one press
“next” key (1) once completed press “ok” (4).
Press the (4) key Scroll the eng. units list with
(2) + (3) and select with (4) key. Press the (1)
key to move to the next menu item.
Press the (4) key and set LRV value.
After entering the settings, press the (1) key
to move to the next menu item.
Press the (4) key and set LRV value.
After entering the settings, press the (1) key
to move to the next menu item.
Press the (4) key and select the transfer
function from the list with (2) + (3).
After entering the settings, press the “ok” (1)
key to move to the next menu item.
Press the (4) key and set the damping. After
entering the settings, press the (1) key to
move to the next menu item.
This function set to zero the PV value and to 4 mA the analogue output.
Simply press “ok” (4) key to activate the PV to zero function. Press Next (1) key
to move to the next menu item. ABB suggest user should perform this specific
command only after the installation and configuration phases are complete
This function allows the selection of the LCD
visualization. Select between the list and
confirm with “ok” (1) key.
In the configuration level, use the (2)
+ (3) keys to scroll to the “Easy Set-
up” menu item and select it by
pressing the (4) key.
