21

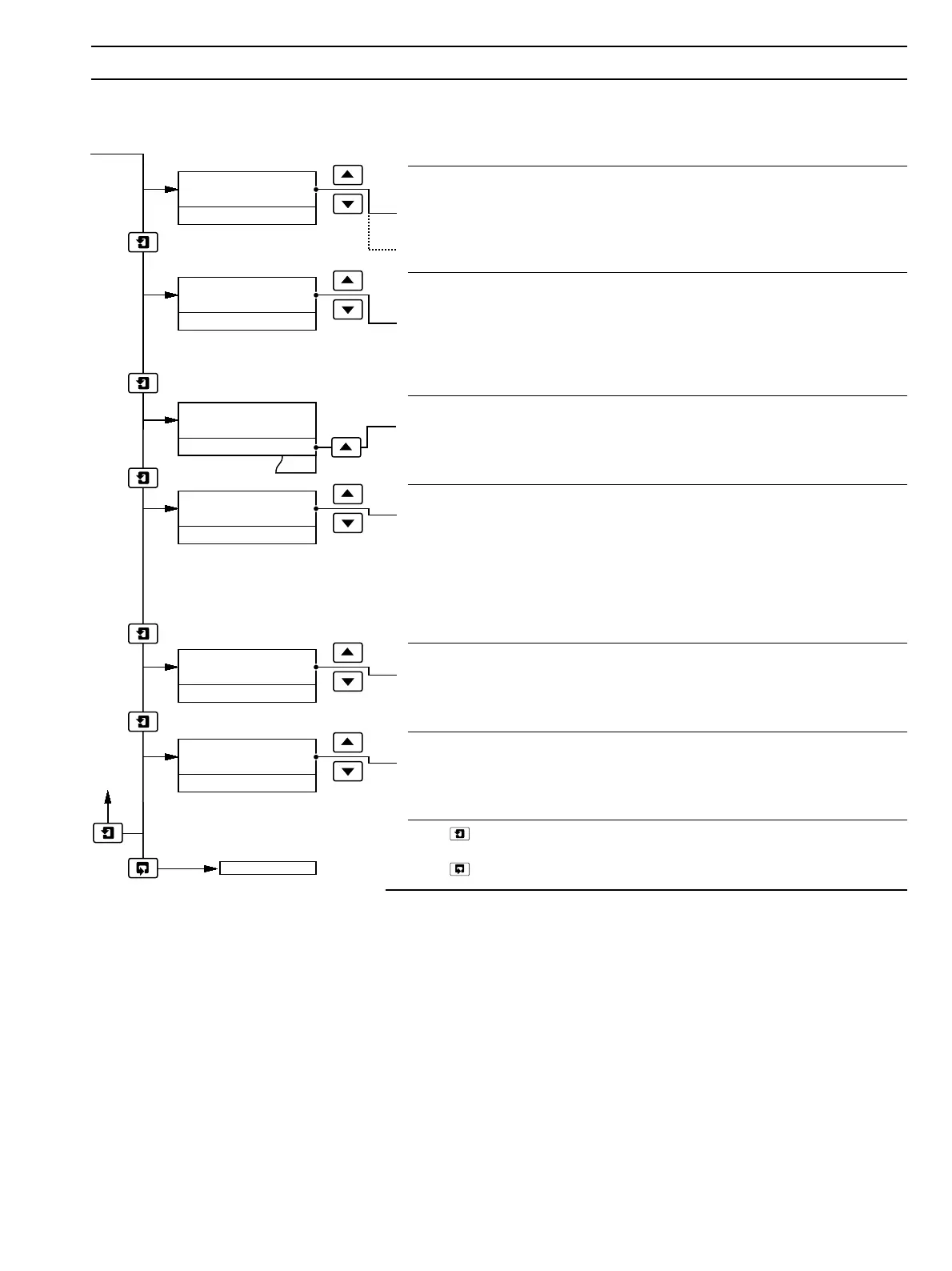

…7.7 Set Up Outputs Page
7 PROGRAMMING
Retransmission Zero
Set the required retransmission zero value, in % oxygen units.
[0% to 20.00% (linear output)]
or
[0.01% to 0.25% (logarithmic output)].
Retransmission Span
Linear Output
– Set the required retransmission span value, in % oxygen units.
[5% to 25.00%]
Logarithmic Output
– The retransmission span is preset to two decades above
the zero value and cannot be adjusted. For example, if the zero is set to 0.2%,
the span is preset to 20.00% .
Hold Outputs
The retransmission and alarm outputs can be held to prevent inadvertent
operation during a test gas calibration sequence.
Test Retransmission
The instrument transmits a test signal of 0, 25, 50, 75 and 100% of the
retransmission range selected above. The % test signal selected is shown on
the upper display.
Example. When the Retransmission Current Range is set to 0-20 (mA) and
the Test Retransmission signal is set to 50%, the retransmission output value
is forced to 10mA.
Alter Security Code
[00000 to 199999]
Set the security code used to gain access to secure parameters – see
Section 7.4.
Alter Calibration Code
[00000 and 199999]
Set the code used to gain access to the
Oxygen Calibration Sequence – see
Sections 7.1 to 7.3.
Press to return to the top of the Set Up Outputs Page.
Press to advance to the Electrical Calibration Page.
ELECTRICAL CAL.
Continued from previous page
25.00
Retrans Span
100.0
Test Retrans (%)
00000
Alter Sec. Code
00000
Alter Cal. Code
-----
Hold Outputs NO
YES
00.00
Retrans Zero
To Next Page
