4
160 (6.3)
250
(9.84)
69 (2.72)
Fixing Centers
Allowance for
Cable Bends
200 (7.9)
68 (2.68)
214
(8.43)
232
(9.13)
Fixing Centers
42 (1.65)
61 (2
3
/
8
) O.D. Vertical or Horizontal Post
Dimensions in
mm (in)
3.2 Mounting
3.2.1 Wall-/Pipe-mounted Instruments – Figs. 3.2 and 3.3
…3 MECHANICAL INSTALLATION

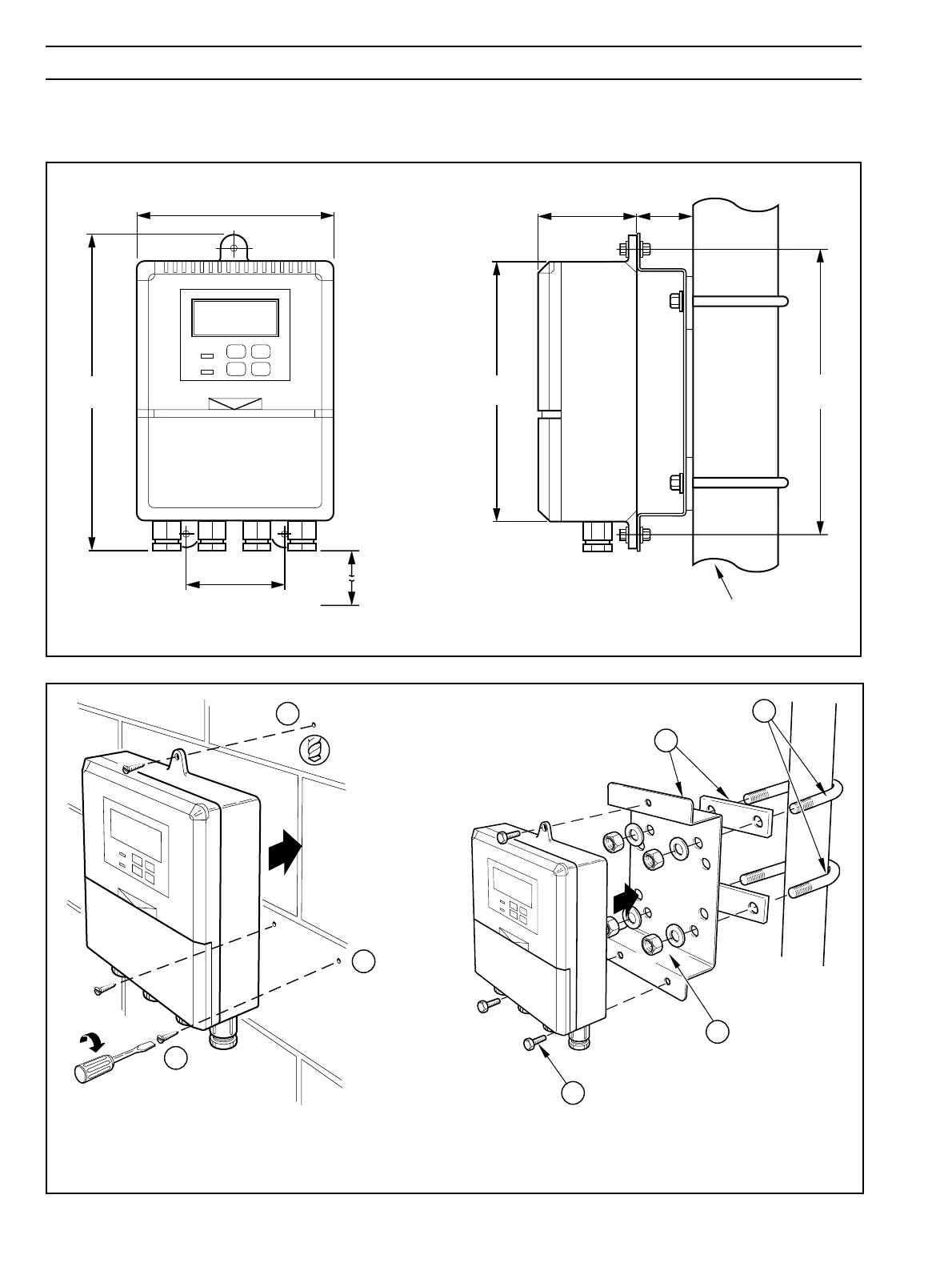

Fig. 3.2 Overall Dimensions
Fig. 3.3 Wall-/Pipe-mounting
Mark fixing centers
(see Fig. 3.2)
Drill suitable
holes
Fix instrument to
wall using
suitable fixings
1
2
3
Position ‘U’ bolts on pipe
Position plates over ‘U’ bolts
Secure transmitter to mounting plate
Secure plates
1
2
3
4
A – Wall-mounting B – Pipe-mounting
