Mechanical installation – Frames R1 to R3 31

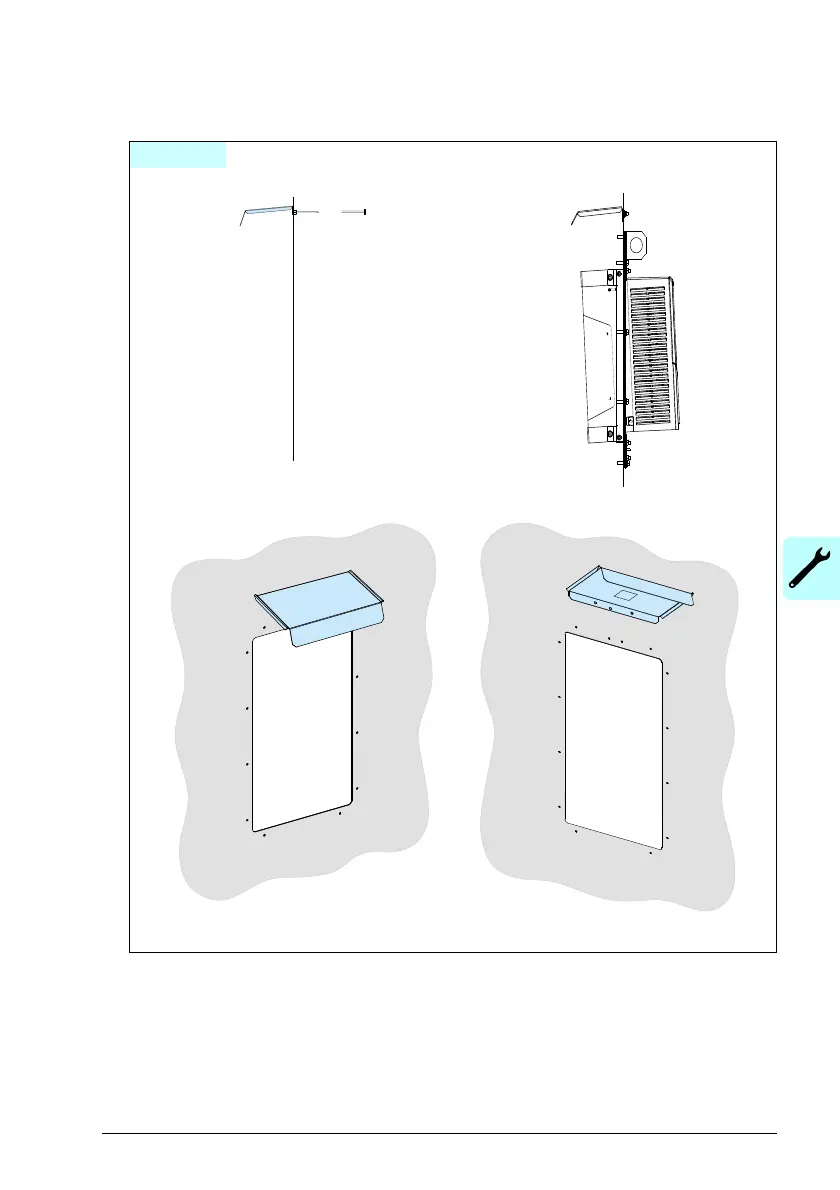

2. Attach the hood to the cooling channel. UL Type 12 is fulfilled on the drive
backside when the flange and hood are installed. This is not required for IP55.
R1…R2:
2 × M6 nuts
R3:
3 × M6 nuts
6 N·m
Back: View from top
FrontBack
Back: View from bottom
FrontBack
UL Type 12

ABB ACH580-01 Series Specifications

General

Category	DC Drives
Series	ACH580-01
IP Rating	IP21, IP55
Mounting	Wall-mounted
Control Method	vector control
Communication Protocols	Modbus RTU, BACnet MS/TP
Protection Features	Overcurrent, overvoltage, undervoltage, overload, short circuit, overtemperature
Operating Temperature	-10°C to +50°C
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000 m without derating
