6.8 Cable entries
The drive is prepared for top or bottom cable entry with one or a
combination of the following cable entries:
• 6-hole cable entry
• Cable entry with EMC plates
• Undrilled Aluminium Plate

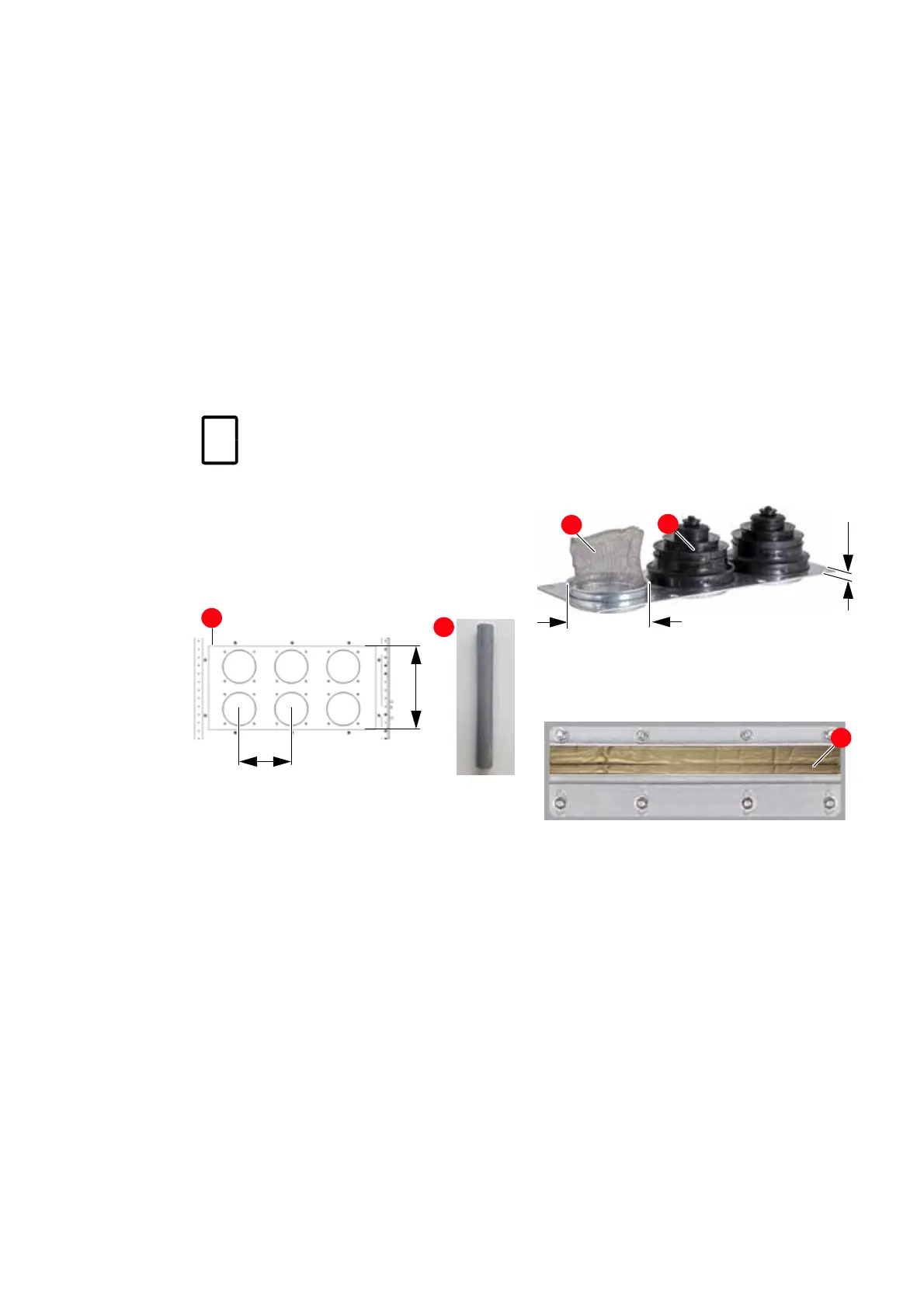

6.8.1 6-hole cable entry
Usage
Power cables, ground cables, bonding conductors
Included in delivery
Galvanized plate (1), sealing compound (2)
Cores per cable
3
6.8.2 Cable entry with EMC plates
Usage
Power cables, ground cables, bonding conductors
Auxiliary power cables, control cables
Included in delivery
Galvanized plate with net-like EMC sleeves (1) and
sealing grommets (2)
EMC cushions (1) on the underside of the EMC
plate if cable entry is used for control cables.
For further information eg, location and
dimensions, see the applicable mechani-
cal drawings.
